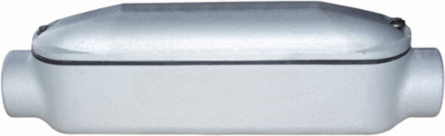

Killark MOC-5-WR Aluminum Mogul Conduit Body C Type 1-1/2 Inch Hub with Cable Rollers, 144 Cu. In. Volume
- MPN: MOC-5-WR
- UPC: 783936555232
- PPN: HBL-MOC-5-WR
- UNSPSC: 39131708
CAD
$980.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mo Series - Aluminum Mogul Conduit Body With Cover, Gasket, And Built-In Cable Rollers - C Type - Hub Size 1-1/2 Inch - Volume 144.0 Cubic Inches
Features
- A raised dome cover permits additional wiring room
- Furnished with captive ss screws and gasket
- LBD, C and UB Series available with builtin cable-pulling rollers on sizes 1-1/2” and larger. Add -WR to catalog number. Example MOLBD-5-WR.
- A raised dome cover permits additional wiring room. Furnished with captive ss screws and gasket. Built-in cable-pulling rollers. Volume is 144 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Mogul fittings are for use with rigid and IMC raceways. Use where standard conduit bodies do not provide adequate access and wiring area for the pulling of large and heavy conductors. For right angle bends where splices, pulls, and taps are needed in a we
- Finish
- Powder Epoxy Paint
- Hub Size
- 1-1/2"
- Special Features
- A raised dome cover permits additional wiring room. Furnished with captive ss screws and gasket. Built-in cable-pulling rollers. Volume is 144 cu. in.
- Width
- 4 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1 1/2" ALUM MOGUL TYPE C W/ ROLLERS
- Harmonization Code
- 7609000000
- Lead Time
- 49 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- C
- Series
- Moguls Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions19 in x 4 in x 4 in
ColorGray
Height4 in
Length19 in
TypeMogul Conduit Body With Cover, Gasket, & Cable Rollers
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging9.1
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936555232
NAICS Code3359323110
