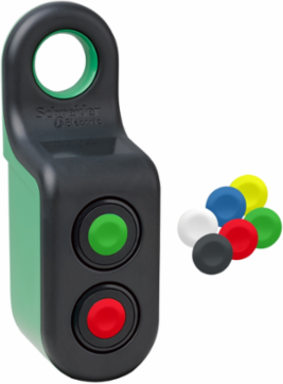

Schneider Electric ZBRM22AB0 Harmony XB5R Wireless Push Button, 22 mm, 25 N Operating Force
- MPN: ZBRM22AB0
- PPN: SCH-ZBRM22AB0
CAD
$315.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

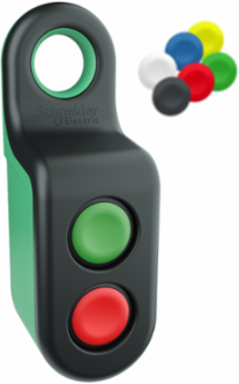

Experience the innovation of wireless technology with this handy box from Schneider Electric, designed for seamless operation with its simple and double action push-buttons. Built for durability, it features a robust construction that withstands free fall resistance of up to 1000 mm and is rated for shock and vibration resistance, making it suitable for various industrial environments. With an impressive sensing distance of up to 100 meters in free field conditions, this battery-less transmitter operates efficiently within a temperature range of -25 C to 55 C, ensuring reliable performance even in challenging conditions. Its IP65 rating provides excellent protection against dust and water, making it a dependable choice for your control needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Communications & Management Attributes
- Communication Port Protocol
- Zigbee green power 2.4 GHz
Physical Attributes

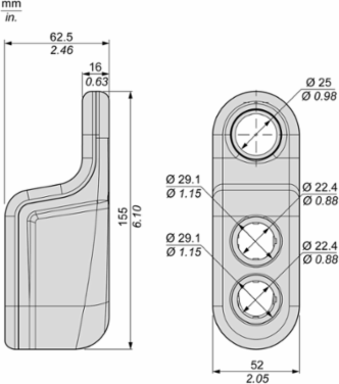

- Cad Overall Depth
- 65 mm
- Cad Overall Width
- 65 mm
Cad Overall Height163 mm
Complementary Attributes
- Maximum Sensing Distance
- 100 m in free field25 m transmitter in the handy box and receiver in a metal enclosure300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna
Important Information Attributes
- Kit Composition
- 1 transmitter, 1 set of caps, 1 handy box, 2 push-button head 22 mm, 2 fixing collars
- Shock Resistance
- 25 gn 6 ms) 6000 shocks IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Certificate Agency
- UL, EAC, CSA, BT 2006/95/EC, CCC, C-tick
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Serviceability
- No
- Weee Scope
- Out
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Contact Operation
- 1 simple and double action UP/DOWN push-buttons
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
- Fixing Collar Material
- plastic
- Main Group
- wireless push-button
- Mechanical Robustness
- free fall resistance 1000 mm EN/IEC 60068-2-32
- Operating Force
- 25 N C/O changing electrical state
- Operator Additional Information
- set of caps
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Response Time
- < 2 ms< 2 ms
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- spring return push-button with transmitter
- Package Weight(Lbs)
- 206.000 g
- Take-back
- No
- Customs Code
- 8517690000
Radio AgreementRSS UL 508ARIB T66 CSA C22.2 No 14, ICASA, ANATEL, FCC
Vibration Resistance+/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-65 gn (f= 11-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Product Contributes To Saved And Avoided EmissionsNo
Bezel Materialplastic
Device Short NameXB5R
Emission Power3 mW
Group Of Productflush push wireless
Mechanical Durability400000 cycles
Mounting Diameter22 mm
Operating Travel4.3 mm total travel)
Operator Profileflush
Product Or Component Typewireless and batteryless transmitter
Range Of ProductHarmony XB5R
ReturnabilityYes
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Directives
- 1999/5/EC - R&TTE directive, 2004/108/EC - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Ip Degree Of ProtectionIP65 IEC 60529 front face), IP65 UL Type 12 front face)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
Relative Humidity95-95 % 70-70 °C without condensation
General Attributes
- Product Or Component Type
- wireless and batteryless transmitter
Range Of ProductHarmony XB5R
ETIM
- ETIM 8
- EC002024
ETIM 9EC002024
