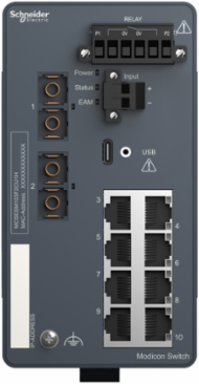

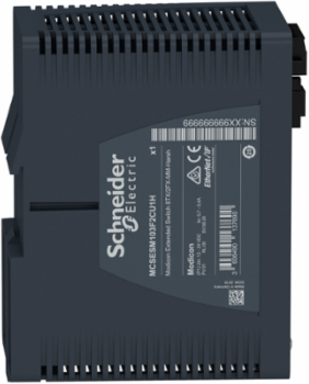

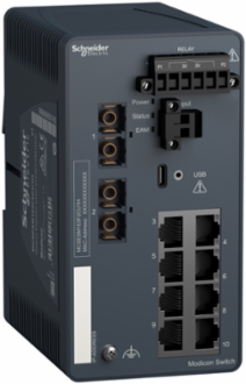

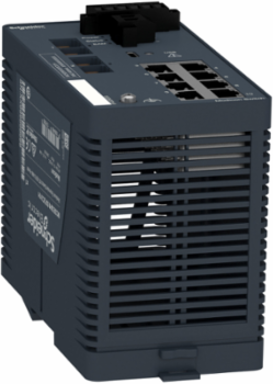

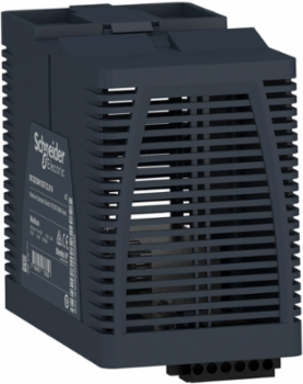

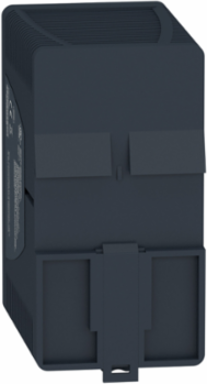

Schneider Electric MCSESM103F2CU1H Modicon Extended Managed Switch - 8 ports for copper + 2 ports for fiber optic multimode - Harsh
- MPN: MCSESM103F2CU1H
- PPN: SCH-MCSESM103F2CU1H
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Modicon Extended Managed Switch - 8 ports for copper + 2 ports for fiber optic multimode - Harsh
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, United States
Depth117.6 mm
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, switch fault, temperature threshold, redundancy ring fault, incorrect configuration, external memory removed
- Communication Service
- TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection
Communication Port ProtocolEthernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, IEC 61850 MMS Server
Alarm Output1 voltfree contact 1 A
Physical Attributes
- Optic Fiber Length
- 4 km 62.5/125 µm, 5 km 50/125 µm
Complementary Attributes
- Integrated Connection Type
- duplex SC fiber optic, shielded RJ45 copper cable
- Maximum Number Of Switches In A Ring
- 50
Maximum Cable Distance Between Devices100 m copper cable
Maximum Number Of Switches In Cascadeunlimited
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Attenuation
- 0-11 dB 62.2/125 µm), 0-8 dB 50/125 µm)
- Diagnostics Run Time
- signal contact, self test, MAC notification
- Function Available
- security status, alarms (Traps), system information, report
- Marking
- CE, cULus, RCM
- Redundancy
- HiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP, dual RSTP, redundant coupling protocol
- Certificate Agency
- CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, LR, CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, LR, BV, FCC part 15 class A, CCC Ex
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 1.0366068891176652
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 3.4212636195715156
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2003018EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2137
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Electrical Connection
- removable connector 6 ways power supply
- Mounting Support
- 35 mm symmetrical DIN rail
- Number Of Rj45 Port
- 8 10/100 Mbps
- Power Consumption In W
- 8 W
- Product Or Component Type
- Ethernet TCP/IP managed switch
- Protective Treatment
- conformal coating
- Returnability
- Yes
- Supply Voltage Limits
- 9.6-32 V DC SELV
- Total Lifecycle Carbon Footprint
- 690 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 700.8
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Width Nominal
- 73 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Cybersecurityport hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner
Ethernet Serviceconfiguration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
Local Signalling1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic
Port Ethernet100BASE-FX - 2 fiber optic, 10/100BASE-TX - 8 copper cable
Transmission Support Mediummultimode optical fiber fiber optic, twisted shielded pairs cable CAT 5E copper cable
Carbon Footprint Of The Distribution Phase [A4]0.09091829832911624, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.010805612309156817, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]686 kg CO2 eq., 685.851519054951
Local Publishable Date2026-01-12
Stocking FlagN
Device TypeNetworking and Cable Solutions - Networking Devices
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Ethernet Cabling SystemTF switches
Number Of Port10
Number Of Uplink Port2 F/O multi mode 100 Mbps
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific Applicationfor severe environments
Range Of ProductModicon Networking
Software Versionv6.2.5-6
Sustainable PackagingNo
Pep CodeENVPEP2003018_V2
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Europe, EU-27
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Height Nominal142.8 mm
[Us] Rated Supply Voltage12...24 V
Package Weight(Lbs)570.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-+70 °C, -40-+70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 690.4111134742785
- Environmental Disclosure
- ENVPEP2003018_V2
- Ip Degree Of Protection
- IP30
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 1-95 % non-condensing
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2003018EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2003018_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Ethernet TCP/IP managed switch
Range Of ProductModicon Networking
ETIM
- ETIM 8
- EC000734
ETIM 9EC000734
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
