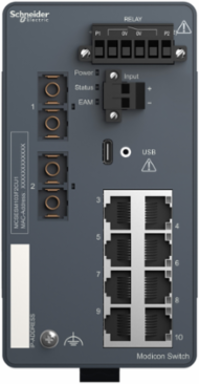

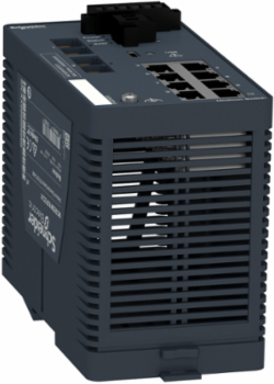

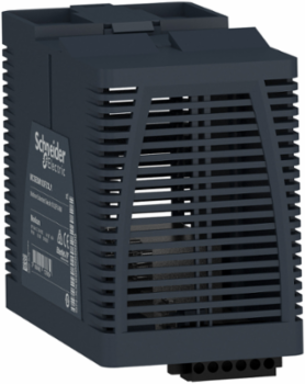

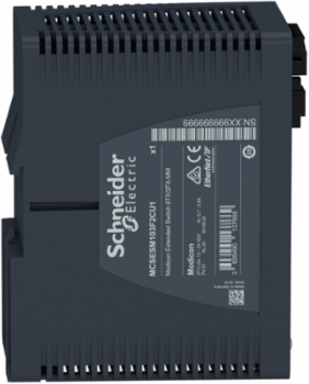

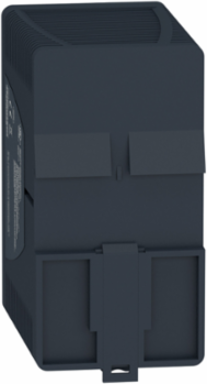

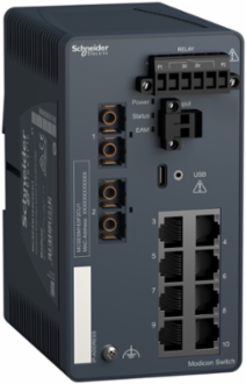

Schneider Electric MCSESM103F2CU1 Modicon Extended Managed Switch - 8 ports for copper + 2 ports for fiber optic multimode

MPN: MCSESM103F2CU1
PPN: SCH-MCSESM103F2CU1

$4208.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon Networking range, an offer of Modicon Extended Managed Switch. This managed switch comes with Ethernet TCP/IP protocol. It comes with 8 copper cable transmission ports and 2 ports for multi-mode fiber optic. It provides simple and complex connectivity for multiple Ethernet device, network management, enhanced cyber security and more advanced switching features. This product works at a power consumption of 8W and a rated voltage from 12V to 24V DC. It has a removable 6-pin power supply connector. Its dimensions are 73mm (width) x 143mm (height) x 118mm (depth) and weighs 0.50 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM, DNV, ATEX, Lloyd's, BV, ATEX certified and conforms to UL 61010, EN/IEC 61131 and EN/IEC 62368-1 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Germany, France, Mexico, United States

Depth	117.6 mm

Communications & Management Attributes

Alarm Function	power supply fault, data link status, switch fault, temperature threshold, redundancy ring fault, incorrect configuration, external memory removed
Communication Service	TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection

Communication Port Protocol	Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, IEC 61850 MMS Server
Alarm Output	1 voltfree contact 1 A

Physical Attributes

Optic Fiber Length	4 km 62.5/125 µm5 km 50/125 µm

Complementary Attributes

Integrated Connection Type	duplex SC fiber opticshielded RJ45 copper cable
Maximum Number Of Switches In A Ring	50

Maximum Cable Distance Between Devices	100 m copper cable
Maximum Number Of Switches In Cascade	unlimited

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Attenuation	0-11 dB 62.2/125 µm), 0-8 dB 50/125 µm)
Diagnostics Run Time	signal contact, self test, MAC notification
Function Available	security status, alarms (Traps), system information, report
Marking	CE, cULus, RCM
Redundancy	HiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP, dual RSTP, redundant coupling protocol
Carbon Footprint Of The Distribution Phase [A4]	0.0797528932711546, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.00947860728873405, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	686 kg CO2 eq., 685.851519054951
Local Publishable Date	2026-01-12
Stocking Flag	N
Device Type	Networking and Cable Solutions - Networking Devices
Traceability	Yes
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2003018EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2137
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Advanced
Market Segmentation	Industrial
Electrical Connection	removable connector 6 ways power supply
Mounting Support	35 mm symmetrical DIN rail
Number Of Rj45 Port	8 10/100 Mbps
Power Consumption In W	8 W
Product Or Component Type	Ethernet TCP/IP managed switch
Returnability	Yes
Supply Voltage Limits	9.6-32 V DC SELV
Total Lifecycle Carbon Footprint	690 kg CO2 eq.
Pep Code	ENVPEP2003018_V2
Pep Verification Date	2025-10-15
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Europe, EU-27
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Height Nominal	142.8 mm
[Us] Rated Supply Voltage	12...24 V
Package Weight(Lbs)	720.000 g
Warranty (In Months)	18
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]	0.24

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Cybersecurity	port hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner
Ethernet Service	configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
Local Signalling	1 dual colour LED (green/yellow) for P1 P2 power supplies1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic
Port Ethernet	100BASE-FX - 2 fiber optic, 10/100BASE-TX - 8 copper cable
Certificate Agency	CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, LR, BV, FCC part 15 class A, CCC Ex
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.9 kg CO2 eq., 0.9093042886997064
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	3 kg CO2 eq., 3.001108438220628
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	4
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Ethernet Cabling System	TF switches
Number Of Port	10
Number Of Uplink Port	2 F/O multi mode 100 Mbps
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Modicon Networking
Software Version	v6.2.5-6
Sustainable Packaging	No
Transmission Support Medium	multimode optical fiber fiber optictwisted shielded pairs cable CAT 5E copper cable
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	700.8
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Width Nominal	73 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]	0.24
Customs Code	8517620020

Environment Attributes Main

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	0-60 °C
Environmental Disclosure	ENVPEP2003018_V2
Ip Degree Of Protection	IP30
Packaging Without Single Use Plastic	No
Relative Humidity	1-95 % non-condensing
Pep Verification Date	2025-10-15
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
China Rohs Regulation	X
Carbon Footprint	689.8511632824312
Circularity Profile	ENVEOLI2003018EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2003018_V2
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
