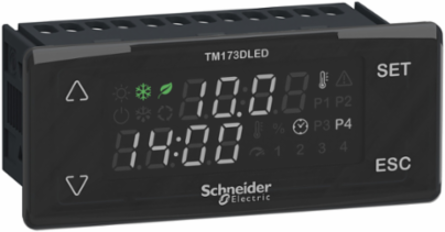

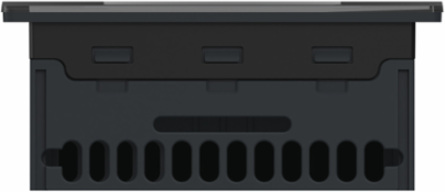

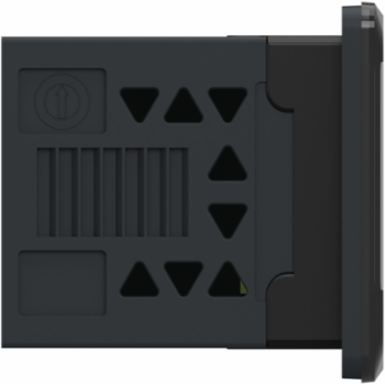

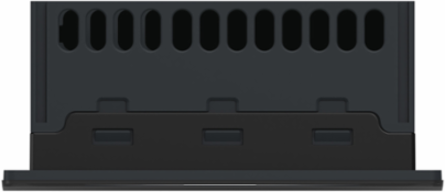

Schneider Electric TM173DLED Remote Display, Modicon M171/M172/M173, flush mounted optimized display
- MPN: TM173DLED
- PPN: SCH-TM173DLED
CAD
$74.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

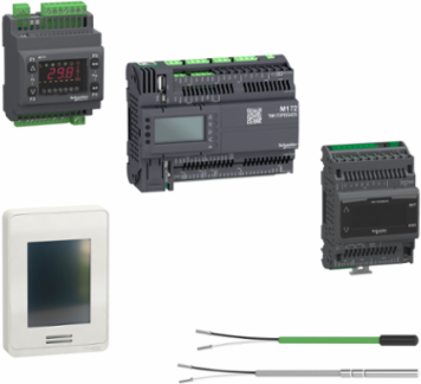

This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This remote display is designed for M173 Optimized logic controllers. It is a LED display, with one Propriotary LAN bus port for connection to the controller. It provides remote view and control of the information to monitor. It is powered by the controller It has a 4-button keyboard. It measures 74mm wide, 30mm deep, 32mm high, and weighs 0.120kg. This remote display is designed for HVAC and pumping controllers. It is certified by CE, cURus (UL Recognized), CSA, EAC, RCM, RoHS China, and UKCA. It is compatible with any TM173O DIN version. It is sold in a 1-piece package It is designed for panel mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC and pumping applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, Italy, Philippines

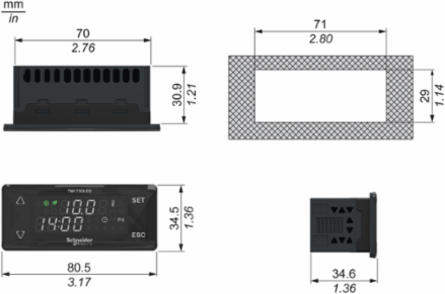

Depth34.6 mm
Physical Attributes
- Color
- White
Display Colormonochrome
Important Information Attributes
- Marking
- CE, UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.03084617335556098, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0018600357820195924
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 40 kg CO2 eq., 39.723530158456576
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Product Contributes To Saved And Avoided Emissions
- No

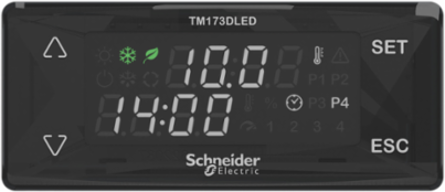

- Display Type
- 2 x 7-segment LED
- Overvoltage Category
- II
- Product Or Component Type
- display module
- Returnability
- Yes
- Supply
- external source
- Total Lifecycle Carbon Footprint
- 49 kg CO2 eq.
- Upgradeability
- Yes
- Display Color
- monochrome
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control HVAC/R applications, like chiller, heat pump or pumping station with up to 2 circuits and 4 compressors thanks to the integrated valve driver and 22 programmable IOs, and a 100% of the time for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 87.6
- Energy Model - Installation [A5]
- Electricity origin
- Energy Model - End Of Life [C1-c4]
- Electricity origin
- Width Nominal
- 34.5 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109160
Certificate AgencyUKCA, UL, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.25406244180873183, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 8.657126707170876
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2310029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2418
China Rohs In ScopeYes
With Recycled CardboardYes
Product Kit IdentifierN
Number Of Key4
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon M171/M172/M173
Software Versionv6.2.2
Sustainable PackagingYes
UpdatabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2310029_V3
Pep Verification Date2024-10-10
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Italy, IT
Energy Model - Use [B6]Electricity origin
Height Nominal80.5 mm
[Us] Rated Supply Voltage24 V AC/DC
Package Weight(Lbs)113.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-65 °C, -20-65 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 48.667425516573765
- Environmental Disclosure
- ENVPEP2310029_V3
- Ip Degree Of Protection
- IP65
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-10-10
- Psr Version
- No PSR
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2310029EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Pep CodeENVPEP2310029_V3
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- display module
- Upgradeability
- Yes
Range Of ProductModicon M171/M172/M173
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
