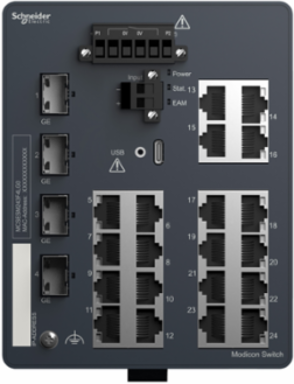

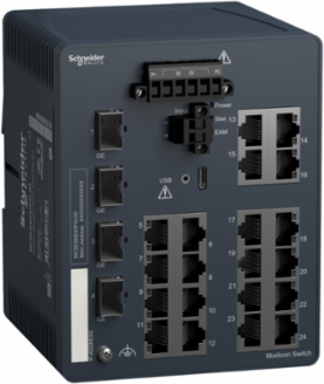

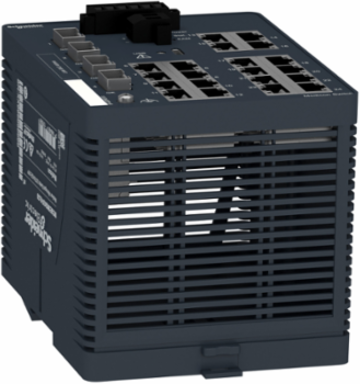

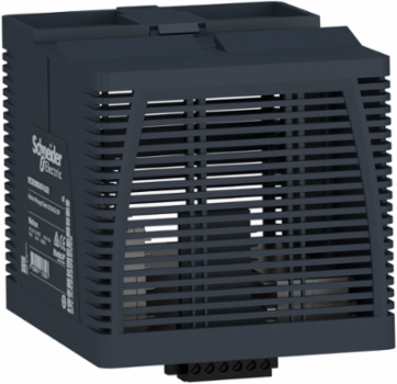

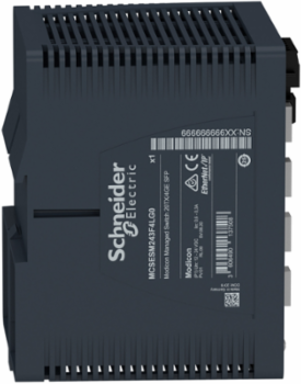

Schneider Electric MCSESM243F4LG0 Managed Network Switch, 20 Copper Ports, 4 Gigabit SFP, IP30
Schneider Electric MCSESM243F4LG0 Managed Network Switch, 20 Copper Ports, 4 Gigabit SFP, IP30
- MPN: MCSESM243F4LG0
- PPN: SCH-MCSESM243F4LG0
- UNSPSC: 43222612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3826.95/ EA
Description
The managed network switch from Schneider Electric is a robust solution designed for efficient Modicon networking, featuring 20 copper ports and 4 Gigabit SFP connections. Engineered for reliability and performance, this switch supports a range of advanced communication services including TFTP, Quality of Service (QoS), and various port monitoring capabilities, ensuring seamless data management and security. With a compact design and a variety of mounting options, it is ideal for industrial environments, operating effectively within a temperature range of 0-60 °C and a humidity level of 1-95% non-condensing. Enhanced cybersecurity features, such as port hardening and role-based access control, provide peace of mind in protecting your network infrastructure, making this switch a vital component for modern industrial applications.
Features
- High performance and robust hardware with more flexibility and features give customers more options
- Provides simple connectivity for multiple Ethernet devices
- Enhanced native cyber secure features help to protect and transmit data across the network at the high level of security
- High network availability with the support of different ring protocols or functions, such as HIPER-ring, RSTP, MRP etc.
- Easy configuration and administration process via HTML5 based web pages
Specifications
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, switch fault, temperature threshold, redundancy ring fault, incorrect configuration, external memory removed
- Communication Service
- TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection
Communication Port ProtocolEthernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, IEC 61850 MMS Server, OPC UA
Alarm Output1 voltfree contact 1 A
Conformance Attributes
- Product Certifications
- CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, FCC part 15 class A, CCC Ex
- Certifications
- CE/cULus/RCM/UKCA, DNV, EAC, CSA C22-2 No 213, ATEX/UKEX
StandardsIEC 61850-3, EN 50121-4, IEC 62443-4-2 SL 1, UL 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 62368-1, IEC 61850-3, IEC 62443-4-2
Complementary Attributes
- Integrated Connection Type
- shielded RJ45 copper cable, SFP port fiber optic (Gbit)
- Maximum Number Of Switches In A Ring
- 50
Maximum Cable Distance Between Devices100 m copper cable
Maximum Number Of Switches In Cascadeunlimited
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Cybersecurity
- port hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner, TACACS+
- Ethernet Service
- configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
- Local Signalling
- 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic
- Port Ethernet
- 10/100BASE-TX - 20 copper cable, 100/1000 SFP - 4
- Transmission Support Medium
- twisted shielded pairs cable CAT 5E copper cable, fiber optic cable fiber optic (Gbit)
- Local Publishable Date
- 2026-01-12
- Device Type
- Networking and Cable Solutions - Networking Devices
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2003019EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Electrical Connection
- removable connector 6 ways power supply
- Mounting Support

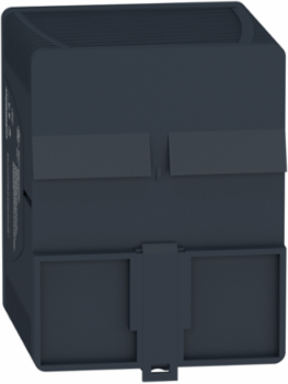

- 35 mm symmetrical DIN rail
- Power Consumption In W
- 16 W
- Product Or Component Type
- Ethernet TCP/IP managed switch
- Returnability
- Yes
- Sustainable Packaging
- No
- Medium Desc
- network switch, Modicon Networking, managed, 20 ports for copper with 4Gigabit SFP
- Product Kit Identifier
- N
- Number Of Rj45 Port
- 20 10/100 Mbps
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Diagnostics Run Timesignal contact, self test, MAC notification, RSPAN, SFLOW
Function Availablesecurity status, alarms (Traps), system information, report
MarkingCE, cULus, RCM
RedundancyHiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP, redundant coupling protocol, MSTP
Local Data StatusPublishable
ManufacturerSquare D
ServiceabilityNo
Field Service DivisionIDIBS
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionAdvanced
Market SegmentationIndustrial
Ethernet Cabling SystemTF switches
Package Weight Lbs1.354 kg
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon Networking
Supply Voltage Limits9.6-32 V DC SELV
Us Rated Supply Voltage212...24 V
Stocking FlagN
Pep CodeENVPEP2003019EN
Number Of Uplink Port4 SFP 10/100/1000 Mbps
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2003019EN
- IP Degree Of Protection
- IP30
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 1-95 % non-condensing
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
ROHS Exemption InformationYes
China ROHS RegulationX
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP2003019EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2003019EN
General Attributes
- Product Or Component Type
- Ethernet TCP/IP managed switch
Range Of ProductModicon Networking
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 117.6 mm
