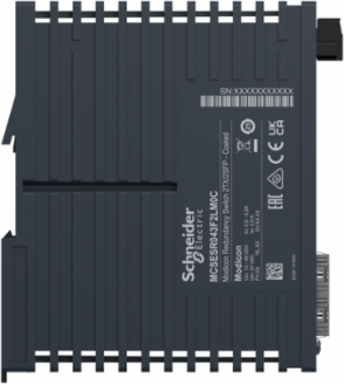

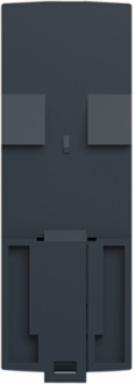

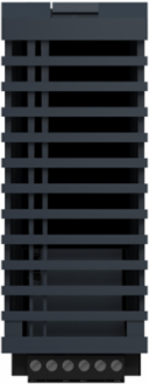

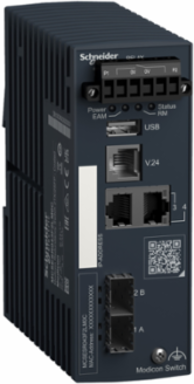

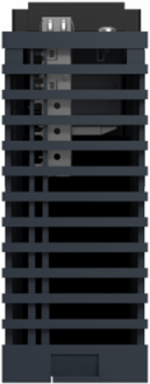

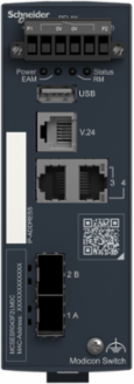

Schneider Electric MCSESR043F2LM0C Redundancy Switch, Modicon Networking, 2 ports for copper, 2 SFP ports, coated

MPN: MCSESR043F2LM0C
PPN: SCH-MCSESR043F2LM0C
UNSPSC: 43222612

$4090.46

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon Networking range, an offer of Modicon Redundancy Switch. This managed switch comes with Ethernet TCP/IP protocol. It comes with 2 copper cable transmission ports and 2 SFP ports. It provides simple and complex connectivity for multiple Ethernet device, network management, enhanced cyber security and more advanced switching features. This product works at a power consumption of 7W and a rated voltage from 12V to 48V DC or 24V AC. It has a removable 6-pin power supply connector. It is suitable for severe environments. Its dimensions are 46mm (width) x 130mm (height) x 105mm (depth) and weighs 0.291 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Features

Compliant with M580 high-availability and other redundancy network architectures
Supports various redundancy protocols, like PRP, RSTP, and MRP for seamless redundancy
Built-in cybersecurity features
Robust coated hardware components to ensure continuous network availability, in a harsh environment
Easy configuration and administration process via web page
Predefined parameters to guarantee optimized efficiency and reduce the commissioning time

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany
Depth	105 mm

Weight	291 g

Communications & Management Attributes

Alarm Function	power supply fault, data link status, redundancy ring fault, switch fault, temperature threshold, incorrect configuration, external memory removed
Communication Service	TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection

Communication Port Protocol	Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP
Alarm Output	1 voltfree contact 1000 mA

Complementary Attributes

Us Rated Supply Voltage	12...48 V, 24 V
Maximum Cable Distance Between Devices	100 m copper cable

Integrated Connection Type	shielded RJ45 copper cableSFP port fibre optic
Maximum Number Of Switches In Cascade	unlimited

Important Information Attributes

Cybersecurity	IP-based port security, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging
Ethernet Service	configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
Local Signalling	1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for ring manager1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for channel diagnostic
Port Ethernet	10/100BASE-TX - 2 copper cable, 100 SFP - 2
Certificate Agency	CE, UL, RCM, EAC, UKCA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.529215096023229, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	2 kg CO2 eq., 1.7466451110444055
Local Data Status	Publishable
Pre Comm Date	2024-10-28
Device Type	Networking and Cable Solutions - Networking Devices
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Product Kit Identifier	N
Ethernet Cabling System	TF switches
Number Of Port	4
Number Of Uplink Port	2 SFP 100 Mbps
Product Availability	Stock - Normally stocked in distribution facility
Product Specific Application	for severe environments
Range Of Product	Modicon Networking
Software Version	v6.2.5-6
Sustainable Packaging	No
Transmission Support Medium	twisted shielded pairs cable CAT 5E copper cablefiber optic cable fibre optic
Data Source	extrapolated product
Width Nominal	46 mm
Customs Code	8517620020
Packaging Weight In G	116.6328
Functional Unit Quantity	1
Reference Lifetime In Y	10

Diagnostics Run Time	signal contact, self test, MAC notification
Function Available	system information, alarms (Traps)
Marking	CE, cULus, RCM
Redundancy	RSTP, link aggregation, link backup, MRP, PRP
Carbon Footprint Of The Distribution Phase A4	0.046416183883811975, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.005516549442043217
Carbon Footprint Of The Use Phase B2 B3 B4 B6	772 kg CO2 eq., 771.5829589368201
Local Publishable Date	2026-01-12
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2003018EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2309
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Electrical Connection	removable connector 6 ways power supply
Mounting Support	35 mm symmetrical DIN rail
Number Of Rj45 Port	2 10/100 Mbps
Power Consumption In W	9 W
Product Or Component Type	Ethernet TCP/IP managed switch
Protective Treatment	conformal coating
Returnability	Yes
Supply Voltage Limits	9.6-60 V DC SELV18-30 V AC SELV
Total Lifecycle Carbon Footprint	774 kg CO2 eq.
Database Version	2024-01
Height Nominal	130 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Description	To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	788.4

Environment Attributes Main

Ambient Air Temperature For Operation	-40-60 °C, -40-60 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	773.9107518772136
Environmental Disclosure	ENVPEP2003018_V2
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Relative Humidity	10-95 % non-condensing
Pep Verification Date	2025-10-15
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2003018EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2003018_V2
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
