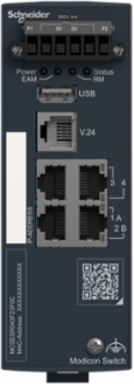

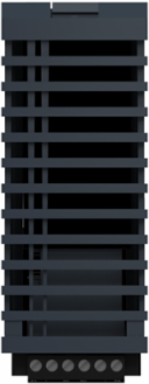

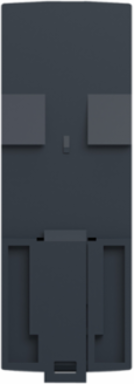

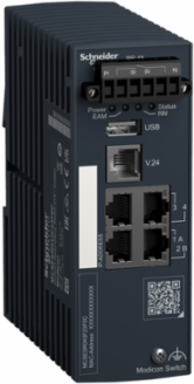

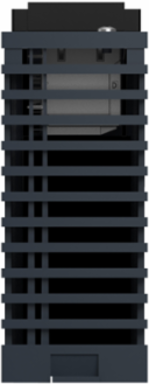

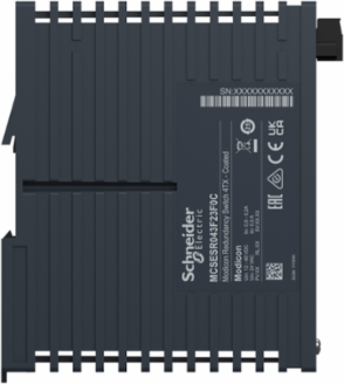

Schneider Electric MCSESR043F23F0C Redundancy Switch, Modicon Networking, 4 ports for copper, coated
Schneider Electric MCSESR043F23F0C Redundancy Switch, Modicon Networking, 4 ports for copper, coated
- MPN: MCSESR043F23F0C
- PPN: SCH-MCSESR043F23F0C
- UNSPSC: 43222612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4204.80/ EA
Description
Redundancy Switch, Modicon Networking, 4 ports for copper, coated
Features
- Compliant with M580 high-availability and other redundancy network architectures
- Supports various redundancy protocols, like PRP, RSTP, and MRP for seamless redundancy
- Built-in cybersecurity features
- Robust coated hardware components to ensure continuous network availability, in a harsh environment
- Easy configuration and administration process via web page
- Predefined parameters to guarantee optimized efficiency and reduce the commissioning time
Specifications
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, redundancy ring fault, switch fault, temperature threshold, incorrect configuration, external memory removed
- Communication Service
- TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection
Communication Port ProtocolEthernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP
Alarm Output1 voltfree contact 1000 mA
Conformance Attributes
- Product Certifications
- CE, UL, RCM, EAC, CE, UL, RCM, EAC, UKCA
- Certifications
- CE/cULus/RCM/UKCA, EAC
StandardsUL 61010-2-201, EN/IEC 61131-2
Complementary Attributes
- Integrated Connection Type
- shielded RJ45 copper cable
- Maximum Number Of Switches In Cascade
- unlimited
Maximum Cable Distance Between Devices100 m copper cable
Important Information Attributes
- Cybersecurity
- IP-based port security, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging
- Ethernet Service
- configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
- Local Signalling
- 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for ring manager, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for channel diagnostic
- Redundancy
- RSTP, link aggregation, link backup, MRP, PRP
- Us Rated Supply Voltage2
- 12...48 V, 24 V
- Local Publishable Date
- 2026-01-12
- Device Type
- Networking and Cable Solutions - Networking Devices
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2003018EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Electrical Connection
- removable connector 6 ways power supply
- Mounting Support
- 35 mm symmetrical DIN rail
- Port Ethernet
- 10/100BASE-TX - 4 copper cable
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- for severe environments
- Range Of Product
- Modicon Networking
- Sustainable Packaging
- No
- Medium Desc
- Redundancy Switch, Modicon Networking, 4 ports for copper, coated
- Product Kit Identifier
- N
- Number Of Rj45 Port
- 4 10/100 Mbps
Diagnostics Run Timesignal contact, self test, MAC notification
Function Availablesystem information, alarms (Traps)
MarkingCE, cULus, RCM
Supply Voltage Limits9.6-60 V DC SELV, 18-30 V AC SELV
Local Data StatusPublishable
Pre Comm Date2024-10-28
ServiceabilityNo
Field Service DivisionIDIBS
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Ethernet Cabling SystemTF switches
Package Weight Lbs429.000 g
Power Consumption In W7 W
Product Or Component TypeEthernet TCP/IP managed switch
Protective Treatmentconformal coating
ReturnabilityYes
Transmission Support Mediumtwisted shielded pairs cable CAT 5E copper cable
Stocking FlagN
Pep CodeENVPEP2003018EN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- Nej, No
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2003018EN
- IP Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % non-condensing
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
ROHS Exemption InformationYes
China ROHS RegulationX
Ambient Air Temperature For Operation-40-60 °C
Environmental DisclosureENVPEP2003018EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2003018EN
General Attributes
- Product Or Component Type
- Ethernet TCP/IP managed switch
Range Of ProductModicon Networking
Specifications
- Country of Origin
- United States
Depth105 mm
