Schneider Electric MCSESR043F23F0 Redundancy Switch, Modicon Networking, 4 ports for copper
- MPN: MCSESR043F23F0
- PPN: SCH-MCSESR043F23F0
CAD
$4090.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

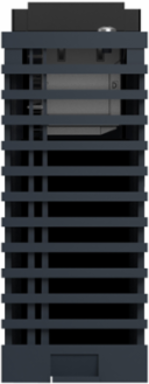

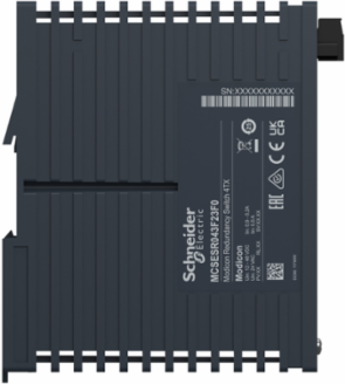

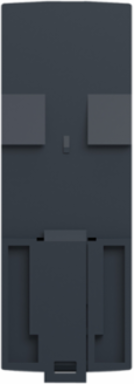

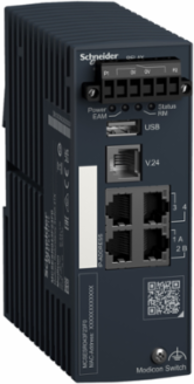

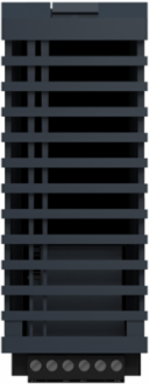

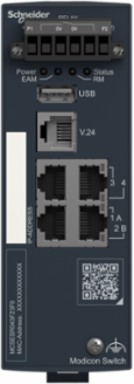

This product is part of the Modicon Networking range, an offer of Modicon Redundancy Switch. This managed switch comes with Ethernet TCP/IP protocol. It comes with 4 copper cable transmission ports. It provides simple and complex connectivity for multiple Ethernet device, network management, enhanced cyber security and more advanced switching features. This product works at a power consumption of 7W and a rated voltage from 12V to 48V DC or 24V AC. It has a removable 6-pin power supply connector. Its dimensions are 46mm (width) x 130mm (height) x 105mm (depth) and weighs 0.290 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, United States
Depth105 mm
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, redundancy ring fault, switch fault, temperature threshold, incorrect configuration, external memory removed
- Communication Service
- TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection
Communication Port ProtocolEthernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP
Alarm Output1 voltfree contact 1000 mA
Complementary Attributes
- Integrated Connection Type
- shielded RJ45 copper cable
- Maximum Number Of Switches In Cascade
- unlimited
Maximum Cable Distance Between Devices100 m copper cable
Important Information Attributes
- Cybersecurity
- IP-based port security, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging
- Ethernet Service
- configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
- Local Signalling
- 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for ring manager1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for channel diagnostic
- Redundancy
- RSTP, link aggregation, link backup, MRP, PRP
- [Us] Rated Supply Voltage
- 12...48 V, 24 V
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.5273964874458297, 0.5 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.7406428941679641
- Local Data Status
- Publishable
- Pre Comm Date
- 2024-10-28
- Stocking Flag
- N
- Device Type
- Networking and Cable Solutions - Networking Devices
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Ethernet Cabling System
- TF switches
- Number Of Port
- 4
- Port Ethernet
- 10/100BASE-TX - 4 copper cable
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon Networking
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Transmission Support Medium
- twisted shielded pairs cable CAT 5E copper cable
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 613.2
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Width Nominal
- 46 mm
- Package Weight(Lbs)
- 425.000 g
- Warranty (In Months)
- 18
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- 0.1392
Diagnostics Run Timesignal contact, self test, MAC notification
Function Availablesystem information, alarms (Traps)
MarkingCE, cULus, RCM
Certificate AgencyCE, UL, RCM, EAC, UKCA
Carbon Footprint Of The Distribution Phase [A4]0.04625667809726967, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.005497592227465749
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]600 kg CO2 eq., 600.1200791730823
Local Publishable Date2026-01-12
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2003018EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2309
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Electrical Connectionremovable connector 6 ways power supply
Mounting Support35 mm symmetrical DIN rail
Number Of Rj45 Port4 10/100 Mbps
Power Consumption In W7 W
Product Or Component TypeEthernet TCP/IP managed switch
ReturnabilityYes
Supply Voltage Limits9.6-60 V DC SELV18-30 V AC SELV
Total Lifecycle Carbon Footprint602 kg CO2 eq.
Pep CodeENVPEP2003018_V2
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Europe, EU-27
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Height Nominal130 mm
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]0.1392
Customs Code8517620020
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2003018_V2
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % non-condensing
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Carbon Footprint602.4398728250209
Circularity ProfileENVEOLI2003018EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2003018_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Ethernet TCP/IP managed switch
Range Of ProductModicon Networking
ETIM
- ETIM 8
- EC000734
ETIM 9EC000734
Accessories
