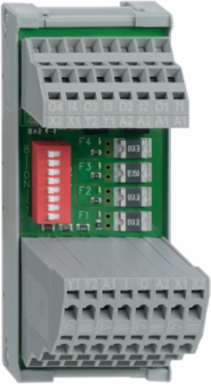

Schmersal 103012161 Passive Distribution Module for Up to 4 Safety Switchgears, IP00 Protection

MPN: 103012161
PPN: SCM-103012161

$221.95

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Passive Distribution Module for Up to 4 Safety Switchgears, IP00 Protection

Features

For SD-Interface devices
Passive distribution module for series-wiring
Cage clamps
For up to 4 safety switchgears
Fuse protected device ports
For installation in terminal boxes
Protection class IP00

Documentation & Downloads

Specifications

Key Specifications

Width	45 mm
Depth	67.7 mm

Height	105.4 mm

Electrical data

Operating voltage	24 VDC -15 % / +10 % (stabilised PELV power supply)

Rated operating voltage	24 VDC

Mechanical data - Dimensions

Width	45 mm
Depth	67.7 mm

Height	105.4 mm

Ambient conditions - Insulation values

Rated insulation voltage U	32 VDC
Overvoltage category	III

Rated impulse withstand voltage U	0.8 kV
Degree of pollution	2

General data - Features

Integral system diagnostics, status	Yes

Number of LEDs	5

General data

Standards	EN IEC 62061 \| EN IEC 60947-5-1 \| EN IEC 60947-5-3 \| EN IEC 60947-5-5 \| EN IEC 60204-1 \| EN IEC 60947-1
Gross weight	120 g

Enclosure material	Plastic, Polyamide PA 66 GV

Ambient conditions

Degree of protection	IP00
Storage and transport temperature, minimum	-40 °C
Relative humidity, minimum	5 %
Note (Relative humidity)	non-condensing
Restistance to shock	30 g / 11 ms

Ambient temperature	-25 ... +65 °C
Storage and transport temperature, maximum	+85 °C
Relative humidity, maximum	95 %
Resistance to vibrations	10 … 55 Hz, amplitude 1 mm
Protection class	III
