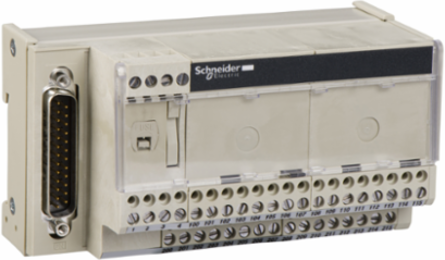

Telemecanique Sensors ABE7CPA03 Connection Sub-Base 8 Channels 24V DC IP20 0.33 kg
Telemecanique Sensors ABE7CPA03 Connection Sub-Base 8 Channels 24V DC IP20 0.33 kg
- MPN: ABE7CPA03
- PPN: SCH-ABE7CPA03
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$259.29/ EA
Description
This product is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. This connection sub-base is for distribution of 8 analogue channels. It is a sub base with a control circuit voltage of 24V DC. The distributed analog input channels are isolated from one another. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.33kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. It meets CSA C22.2, IEC 61131 and UL 508 standards. This connection sub-base is suitable for use with Modicon X80 IO module BMXAM0800. It is delivered in 1 package (PCE type). It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Environment
- Product Certifications
- DNV || UL || GL || CSA
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP20 IEC 60529
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Resistance To Electrostatic Discharge
- 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
StandardsCSA C22.2 || IEC 61131 || UL 508
Ambient Air Temperature For Operation0-60 °C IEC 61131-2
Vibration Resistance2 gn 10-150 Hz)IEC 60068-2-6
Pollution Degree2 IEC 60664-1
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
China Rohs RegulationX
Complementary
- [Uc] Control Circuit Voltage
- 24 V DC
- Net Weight
- 0.33 kg
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- [Ui] Rated Insulation Voltage
- 2000 V terminals/mounting rails
Installation CategoryII IEC 60664-1
Fixing Modeby clips (35 mm symmetrical DIN rail) || by screws (solid plate with fixing kit)
Connection To PlcSUB-D 25
Function Of Moduleanalogue input current Premium || analogue input voltage Premium || Pt 100 Premium
Specifications
- Range Of Product
- Modicon ABE7
- Connections - Terminals
- screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
Product Or Component Typeconnection sub-base for counter and analogue channels
Number Of Channels8
