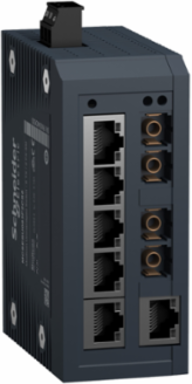

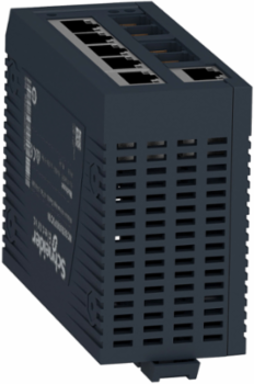

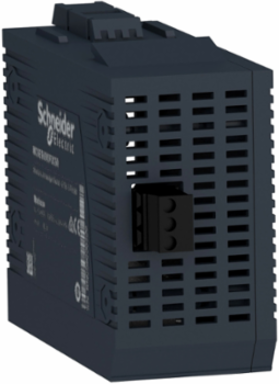

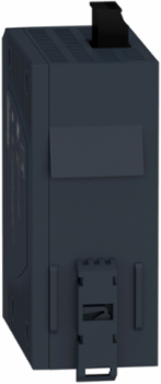

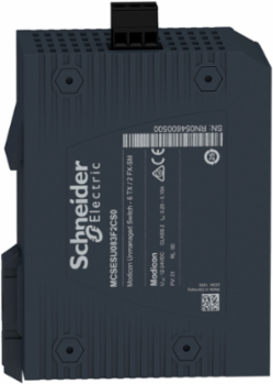

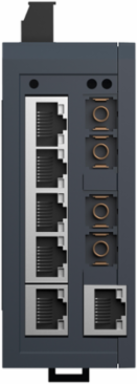

Schneider Electric MCSESU083F2CS0 Modicon Unmanaged Network Switch, 6 Copper & 2 Fiber Ports, IP30
- MPN: MCSESU083F2CS0
- PPN: SCH-MCSESU083F2CS0
CAD
$847.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Modicon Unmanaged Network Switch, 6 Copper & 2 Fiber Ports, IP30
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, Germany, France, United States
Depth88 mm
Communications & Management Attributes
- Communication Port Protocol
- Ethernet TCP/IP
Physical Attributes
- Optic Fiber Length
- 32.5 km 9/125 µm
Complementary Attributes
- Integrated Connection Type
- shielded RJ45 copper cable, duplex SC fiber optic
- Maximum Number Of Switches In Cascade
- unlimited
Maximum Cable Distance Between Devices100 m copper cable
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Local Signalling
- 1 LED (green) for power supply, 1 LED per channel (yellow) for data rate (ETH LINK), 1 dual colour LED (green/yellow) for link status
- Port Ethernet
- 10/100BASE-TX - 6 copper cable, 100BASE-FX - 2 fiber optic
- Certificate Agency
- CE, UL, RCM, EAC, CE, UL, RCM, EAC, UKCA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.427373015688862
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.410520965963695
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2003018EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2137
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Attenuation
- 0-16 dB 9/125 µm)
- Ethernet Cabling System
- TF switches
- Number Of Port
- 8
- Number Of Uplink Port
- 2 F/O single mode 100 Mbps
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon Networking
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2003018_V2
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Height Nominal
- 110 mm
- [Us] Rated Supply Voltage
- 12...24 V
- Package Weight(Lbs)
- 378.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
MarkingCE, UL, RCM
Transmission Support Mediumtwisted shielded pairs cable CAT 5E copper cable, single mode optical fiber fiber optic
Carbon Footprint Of The Distribution Phase [A4]0.037483859837442665, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0044549454257050035, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]326 kg CO2 eq., 325.77947155110184
Local Publishable Date2025-11-20
Stocking FlagY
Device TypeNetworking and Cable Solutions - Networking Devices
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electrical Connectionremovable connector 3 ways power supply
Mounting Support35 mm symmetrical DIN rail
Number Of Rj45 Port6 10/100 Mbps
Power Consumption In W3.8 W
Product Or Component TypeEthernet TCP/IP unmanaged switch
ReturnabilityNo
Supply Voltage Limits9.6-32 V DC SELV
Total Lifecycle Carbon Footprint328 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh332.88
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal45 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2003018_V2
- Ip Degree Of Protection
- IP30
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 10-95 % non-condensing
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Carbon Footprint327.6593043380176
Circularity ProfileENVEOLI2003018EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2003018_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Ethernet TCP/IP unmanaged switch
Range Of ProductModicon Networking
ETIM
- ETIM 8
- EC000734
ETIM 9EC000734
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
