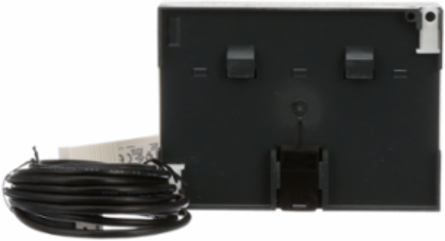

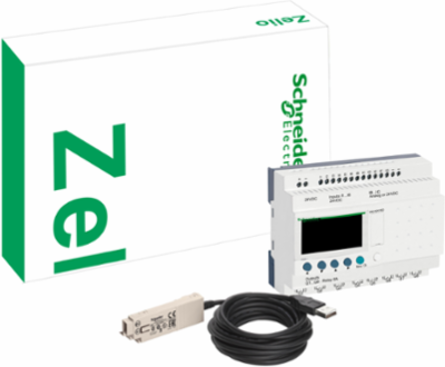

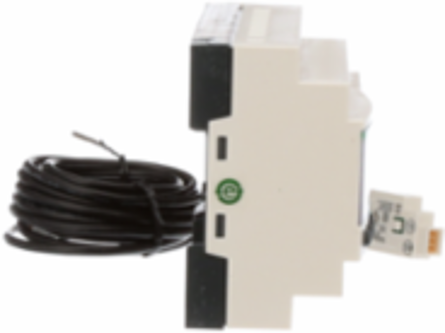

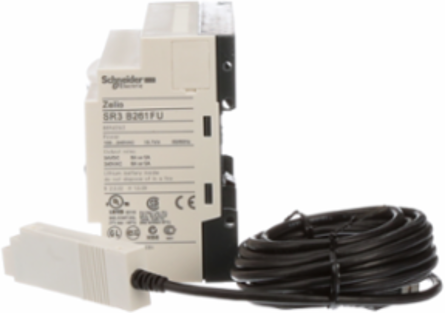

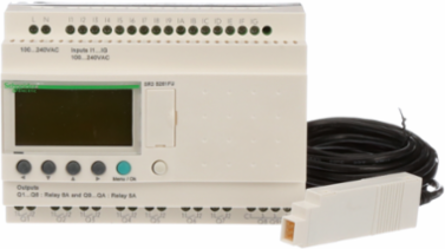

Schneider Electric SR3PACK2FU Zelio Logic Modular Discovery Pack, 26 IO, 100-240V AC
- MPN: SR3PACK2FU
- PPN: SCH-SR3PACK2FU
CAD
$549.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Zelio Logic SR3 discovery pack compact smart relay / programmable controller uses a supply voltage of 100V to 240V alternating current. It has 26 inputs / outputs with screw-clamp terminals and has an integrated LCD display. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. This discovery package includes one copy of Zelio Soft and one USB cable to connect the relay to your PC. Its simple ladder programming makes it adapted for non-specialists.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Zelio Logic
- Product Or Component Type
- modular discovery packs
Number Of Outputs10 relay
Discrete Input Number16
Complementary
- Contacts Type And Composition
- NO relay output
- Discrete Input Frequency
- 47...53 Hz || 57...63 Hz
- Number Or Control Scheme Lines
- 120-120 ladder || 0-200 FBD
- Backup Time
- 10 years 25 °C
- Power Consumption In Va
- 12 VA without extension || 17 VA with extensions
- Current State 1 Guaranteed
- >= 0.17 mA discrete input)
- Clock
- with
- Net Weight
- 0.85 kg
- Voltage State 0 Guaranteed
- <= 40 V discrete input
- Electrical Durability
- AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
- Voltage State 1 Guaranteed
- >= 79 V discrete input
- Supply Voltage Limits
- 85-264 V
- Mechanical Durability
- 10000000 cycles relay output
- Tightening Torque
- 0.5 N.m
- Switching Capacity In Ma
- >= 10 mA 12 V relay output)
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
- Cycle Time
- 6-90 ms
- Supply Frequency
- 50/60 Hz
- Checks
- program memory on each power up
Input Impedance350 kOhm discrete input
Output Thermal Current5 A for 2 outputs relay output || 8 A for 8 outputs relay output
Discrete Input Voltage100...240 V AC
Clock Drift12 min/year 0-55 °C || 6 s/month 25-25 °C
Discrete Input Current0.6 mA
Response Time50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50...255 ms FBD from state 0 to state 1)discrete input || 50...255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
Local Displaywith
Input/Output Number26
Output Voltage Limits5...30 V DC relay output) || 24...250 V AC
Connections - Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Current State 0 Guaranteed<= 0.5 mA discrete input)
Overvoltage CategoryIII IEC 60664-1
Maximum Supply Current100 mA 100 V without extension) || 50 mA 240 V without extension) || 60 mA 240 V with extensions) || 80 mA 100 V with extensions)
Isolation Voltage1780 V
Protection Typeagainst inversion of terminals (control instructions not executed)
Operating Rate In Hz0.1 Hz at Ie)relay output || 10 Hz no load)relay output
Kit Compositioncable PC SR2USB01 for connection to PC || SR3B261FU
[Us] Rated Supply Voltage100...240 V
Environment
- Product Certifications
- GL || UL || C-Tick || CSA || GOST
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Immunity To Microbreaks
- 10 ms
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
- Ambient Air Temperature For Storage
- -40-70 °C
- Maximum Altitude Transport
- 3048 m
StandardsIEC 61000-4-5 || IEC 61000-4-2 level 3 || IEC 60068-2-27 Ea || IEC 61000-4-3 || IEC 60068-2-6 Fc || IEC 61000-4-6 level 3 || IEC 61000-4-11 || IEC 61000-4-4 level 3 || IEC 61000-4-12
Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Environmental CharacteristicEMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
Pollution Degree2 IEC 61131-2
Relative Humidity95-95 % without condensation or dripping water
Operating Altitude2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060406EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI0604006EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
