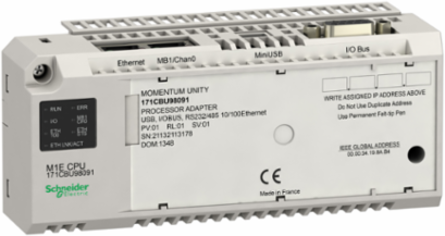

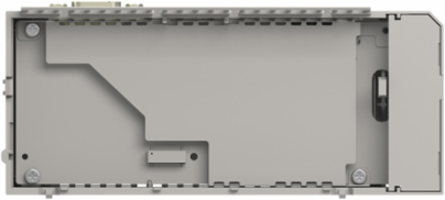

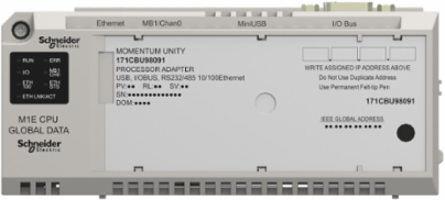

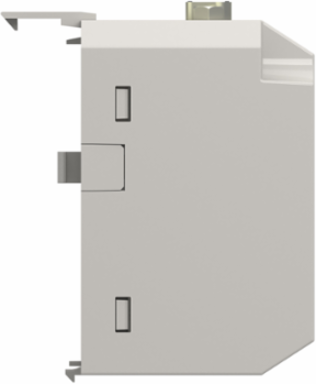

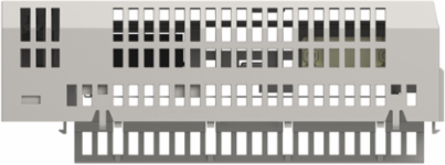

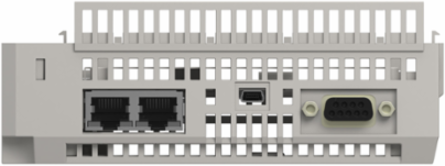

Schneider Electric 171CBU98091 Modicon Momentum M1E Processor, Ethernet & USB, 144mm Width, 0.163kg Weight
- MPN: 171CBU98091
- PPN: SCH-171CBU98091
CAD
$2192.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This processor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1E processor is equipped with Ethernet and USB integrated connection ports. The Spear 320s processor offers 125 words Modbus messaging and 200 I/O message per second. The processor is accessible through client/server and master/slave method. This processor provides web services like CPU status, ethernet statistics, bandwidth monitoring, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height). It weighs 0.163kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. It is compatible with Modicon STB I/O. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany
Depth53.47 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire, Modbus TCP ETHERNET - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP
Communication ServiceModbus messaging 125 words, 200 I/O message per secondGlobal Data, 2200 I/O message per second, Modbus TCP I/O Scanner and Messaging
Complementary Attributes
- Integrated Connection Type
- USB port, Ethernet
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Control Parameter
- CRC-32 for Modbus TCP/IP, CRC-16 for Modbus
- Local Signalling
- 1 LED (green) for processor running (RUN)1 LED (red) for processor or system fault (ERR), 1 LED (red) for I/O module fault (I/O)1 LED (yellow) for channel 0 operating (CH0), 1 LED (green) for data rate (ETH 100), 1 LED (green) for data rate (ETH LINK), 1 LED (green) for status of Ethernet network (ETH STS)
- Method Of Access
- client/server, master/slave
- Web Services
- bandwidth monitoring, properties, CPU status, Ethernet statistics, home pages
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2023
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Addressing
- 1...247 Modbusunique IEEE global address Modbus TCP
- Concept
- Transparent Ready class B
- Exact Time For 1 Kinstruction
- 83 ns
- Marking
- CE
- Module Format
- standard
- Processor Name
- Spear 320s
- Product Mounting
- 35 mm symmetrical DIN rail
- Range Of Product
- Modicon Momentum automation platform
- Resistance To Electromagnetic Fields
- 15 V/m 80...2700 MHz IEC 61000-4-3
- Shock Resistance
- 15 gn 11 ms sinusoidal vibrations
- Supply Voltage Limits
- 4.75-5.25 V
- Topology
- multidrop Modbusstar Modbus TCP
- Width Nominal
- 144 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109160
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength0 V not isolated RS485/RS232, 5000 V for 1 minute ETHERNET
Memory Descriptionprogram memory IEC 3584 kB, program memory LL984 3584 kB
Resistance To Electrostatic Discharge6 kV contact IEC 61131-2 zone B, 6 kV contact IACS E10, 8 kV on air IEC 61000-4-2
Certificate AgencyC-tick, FM
Local Publishable Date2026-01-12
Stocking FlagN
Device TypePLC System - PLC CPU
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Clock Frequency333 MHz
Current Consumption500 mA 5 V DC
Fail Statesafe I/O mode
Materiallexan
Number Of Devices32 Modbus
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeprocessor
Register Words26048
ReturnabilityYes
Software DesignationUnity Pro
Sustainable PackagingNo
Height Nominal60.6 mm
I/O Limit Processor Capacity2048 inputs/2048 outputs
Package Weight(Lbs)240.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Take Back
- No
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- 0-60 °C
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Product CompatibilityModicon STB I/O
Relative Humidity5-96 %
General Attributes
- Product Or Component Type
- processor
Range Of ProductModicon Momentum automation platform
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
