Schneider Electric TM5CSLC100FS Modicon TM5 Controller System, 24V, 20 Safety Nodes, IP20, SIL 3
- MPN: TM5CSLC100FS
- PPN: SCH-TM5CSLC100FS
CAD
$1576.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

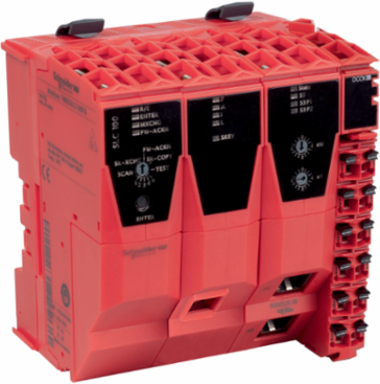

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This safe logic controller has Intel Xscale 266MHz processor with reverse polarity protection, and a 24 V DC power supply. The controller has integrated fuse (not interchangeable) input protection with fanless cooling. It offers SERCOS 3 (Ethernet) communication network with 100Mbps data transmission rate for the full duplex bus length, with 2 integrated shielded RJ45 ports. It supports maximum 20 safety nodes with 2 internal switches. It reaches Category 4 of safety level conforming to EN ISO 13849, and SIL 3 safety integrity level according to IEC 62061. It is an IP20 rated product. The housing colour is red. Its dimensions are 87.5mm (width) x 75mm (depth) x 99mm (height). It weighs 0.29kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with motion controller, communicating on Sercos 3 fieldbus. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Austria, Brazil, France |
|---|
| Depth | 75 mm |
|---|
Communications & Management Attributes
| Communication Network Type | SERCOS III Ethernet) |
|---|
Physical Attributes
| Color | Red |
|---|
Complementary Attributes
| Maximum Cable Distance Between Devices | 100 m between station |
|---|
| Rated Voltage | 24-24 V -15...20 % |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Function Available | support max 20 safety nodes, with 2 internal switch |
| Safety Level | SIL 3 IEC 61508, SIL 3 IEC 62061PL = e EN 13849-1 |
| Certificate Agency | GOST-R, cULus |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3 kg CO2 eq., 0.3161653996 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 31 kg CO2 eq., 30.6028395062 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Device Application | safety logic controller |
| Number Of Devices | 2 shielded RJ451 memory key slot |
| Processor Name | Intel Xscale 266 MHz |
| Product Or Component Type | controller system |
| Realtime Clock | with non-volatile memory |
| Reverse Polarity Protection | yes |
| Sustainable Packaging | No |
| Transmission Rate | 100 Mbit/s for full duplex |
| Pep Code | ENVPEP2203008EN |
| Pep Verification Date | 2022-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To manage the safety-related application over the Sercos network 100% of the time with a power use of 4,3W. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 446.76 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Width Nominal | 87.5 mm |
| Package Weight(Lbs) | 509.000 g |
| Warranty (In Months) | 18 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 555.9 |
| Customs Code | 8537109160 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Local Signalling | 1 LED (green or orange) for application run or SoSafe debug mode1 LED (green) for authorization status1 LED (orange) for configuration status (Ready), 1 LED (orange) for firmware status, 4 LEDs (red) for boot status, 1 LED (orange) for memory key status |
| Safety Reliability Data | PFH < 1E-9, MTTFd > 100 years, PFD < 1E-5 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.065672245, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.1314238661, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 219 kg CO2 eq., 218.8848837209 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC CPU |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2203008EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Cycle Time | 1 ms |
| Marking | CE |
| Power Consumption In W | 5.1 W |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon TM5 |
| Returnability | No |
| Software Version | EIME v5.9.3 |
| Total Lifecycle Carbon Footprint | 250 kg CO2 eq. |
| Type Of Cooling | fanless |
| Database Version | 2020-12 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Austria |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Height Nominal | 99 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 555.9 |
| Water Pollution (M3) Operational Energy Use [B6] | 9032.1 |
Environment Attributes Main
| Ambient Air Temperature For Operation | 0-45 °C vertical installation), 0-55 °C horizontal installation) |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2203008EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2022-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 250.0009847378 |
| Environmental Disclosure | ENVPEP2203008EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2203008EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Product Or Component Type | controller system |
|---|
| Range Of Product | Modicon TM5 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Protection Type | integrated fuse (not interchangeable) |
|---|
