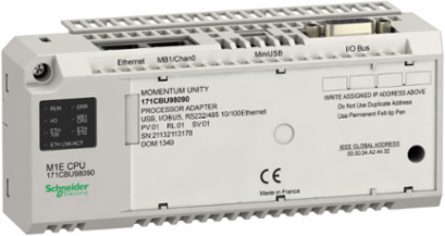

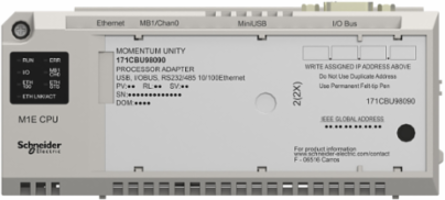

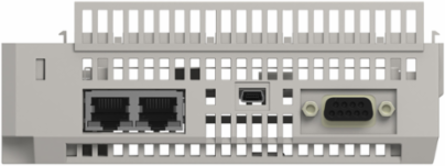

Schneider Electric 171CBU98090 Modicon Momentum Unity M1E Processor, IP20 Rated, Width 144 mm, Weight 0.163 kg
- MPN: 171CBU98090
- PPN: SCH-171CBU98090
CAD
$1969.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1E processor is equipped with Ethernet and USB integrated connection ports. The Spear 320s processor's communication services are Modbus messaging 125 words, 200 I/O message per second. The processor with Unity Pro software has web services like CPU status, Ethernet statistics, bandwidth monitoring, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height) and weighs 0.163kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. This product is compatible with Modicon STB I/O. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States, ZZ
Depth53.47 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire, Modbus TCP ETHERNET - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP
Communication ServiceModbus messaging 125 words, 200 I/O message per second, Global Data, 1600 I/O message per second, Modbus TCP I/O Scanner and Messaging
Complementary Attributes
- Integrated Connection Type
- Ethernet, USB port
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Addressing
- 1...247 Modbus, unique IEEE global address Modbus TCP
- Dielectric Strength
- 0 V not isolated RS485/RS232, 5000 V for 1 minute ETHERNET
- Memory Description
- program memory IEC 3584 kB, program memory LL984 3584 kB
- Resistance To Electrostatic Discharge
- 6 kV contact IEC 61131-2 zone B, 6 kV contact IACS E10, 8 kV on air IEC 61000-4-2
- Web Services
- CPU status, Ethernet statistics, bandwidth monitoring, home pages, properties
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 1518.40
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2023
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Clock Frequency
- 333 MHz
- Current Consumption
- 500 mA 5 V DC
- Fail State
- safe I/O mode
- Material
- lexan
- Number Of Devices
- 32 Modbus
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- processor
- Register Words
- 26048
- Returnability
- Yes
- Software Designation
- Unity Pro
- Sustainable Packaging
- No
- Width Nominal
- 144 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Control ParameterCRC-16 for Modbus, CRC-32 for Modbus TCP/IP
Local Signalling1 LED (green) for processor running (RUN), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for I/O module fault (I/O), 1 LED (yellow) for channel 0 operating (CH0), 1 LED (green) for data rate (ETH 100), 1 LED (green) for data rate (ETH LINK), 1 LED (green) for status of Ethernet network (ETH STS)
Method Of Accessclient/server, master/slave
Topologymultidrop Modbus, star Modbus TCP
Certificate AgencyFM, C-tick
Local Publishable Date2024-01-27
Future Imap1181.87
Stocking FlagN
Device TypePLC System - PLC CPU
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
ConceptTransparent Ready class B
Exact Time For 1 Kinstruction83 ns
MarkingCE
Module Formatstandard
Processor NameSpear 320s
Product Mounting35 mm symmetrical DIN rail
Range Of ProductModicon Momentum automation platform
Resistance To Electromagnetic Fields15 V/m 80...2700 MHz IEC 61000-4-3
Shock Resistance15 gn 11 ms sinusoidal vibrations
Supply Voltage Limits4.75-5.25 V
Height Nominal60.6 mm
I/O Limit Processor Capacity2048 inputs/2048 outputs
Package Weight(Lbs)237.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Take Back
- No
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- 0-60 °C
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Product CompatibilityModicon STB I/O
Relative Humidity5-96 %
General Attributes
- Product Or Component Type
- processor
Range Of ProductModicon Momentum automation platform
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
