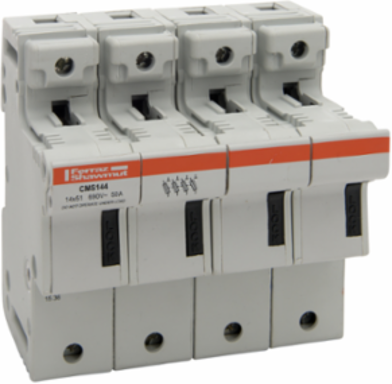

Mersen F331021 Modulostar 4-Pole Modular Fuse Holder, 14x51 Fuse Size, IP20, DIN Rail Mounting
- MPN: F331021
- PPN: FER-F331021
CAD
$729.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

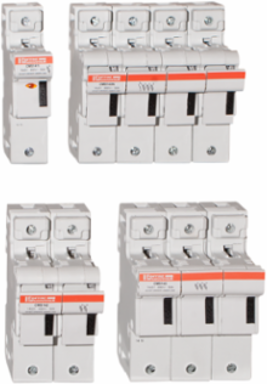

The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in IEC version or IEC + UL version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In size 14 or 22, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. Modulostar® range is made of tough and durable thermoplastic or thermoset material.
Specifications
Key Specifications
| Rated voltage AC IEC | 690 V |
|---|---|
| Ampere Rating | 50 A |
| AC or DC | AC/DC |
| Fuse Size | 14x51 |
| Torque Rating | 30.978 lb-in |
| Rated Insulation Voltage | 690 V |
| Conventional Free Air thermal Current With Fuse-Links Ith | 50 A |
| Length | 3.01 in |
| Weight | 1.257 lb |
| Rated voltage DC IEC | 690 V |
|---|---|
| ROHS Compliant | Yes |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Number of Poles | 4-Pole |
| Rated Impulse Withstand Voltage | 8 kV |
| Installation Mounting | DIN rail acc. EN 60715 |
| Width | 4.17 in |
| Height | 4.36 in |
