Mersen X1011974 UltraSafe Modular Fuse Holder 3-Pole 22x58 DIN Rail IP20
Mersen X1011974 UltraSafe Modular Fuse Holder 3-Pole 22x58 DIN Rail IP20
- MPN: X1011974
- UPC: 782001311438
- PPN: FER-X1011974
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$532.34/ EA
Description

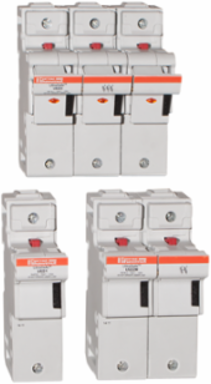

The innovative and comprehensive UltraSafe™ range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. UltraSafe™ range is made of tough and durable thermoplastic or thermoset material.
Specifications
Specifications
- Rated voltage AC UL
- 800 V
- Frequency (Hz)
- 50 ... 60 Hz
- Rated voltage DC IEC
- 690 V
- ROHS Compliant
- Yes
- Short Circuit Current Rating (SCCR)
- 100 kA
- Design Details
- triple pole
- Indication System Type
- Visual Indicator Microswitch
- Wiring range
- 1/0 - #14
- Connection/Terminal Type
- Clip
- Torque Rating
- 35.403 lb-in
- Rated Impulse Withstand Voltage
- 8 kV
- Installation Mounting
- DIN rail acc. EN 60715
- Conventional Free Air thermal Current With Fuse-Links Ith
- 125 A
- Length
- 3.01 in
- Weight
- 1.488 lb
Rated voltage DC UL1000 V
Rated voltage AC IEC690 V
Ampere Rating125 A
AC or DCAC/DC
Fuse Size22x58
Indication SystemYes
Number of Poles3-Pole
Connection/Terminal MaterialTin-Plated Copper
Fuse Installation MethodClip-in
Max Fuse Rating125 A
Rated Insulation Voltage750 V
Body/Insulating MaterialPolyamide
Width4.13 in
Height5.02 in
