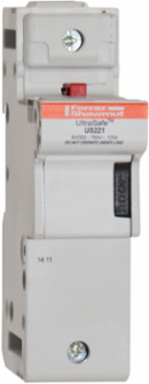

Mersen E331158 UltraSafeTM Modular Fuse Holder 1-Pole 22x58, 125A, DIN Rail Mount, IP20

MPN: E331158
UPC: 782001311186
PPN: FER-E331158

$101.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

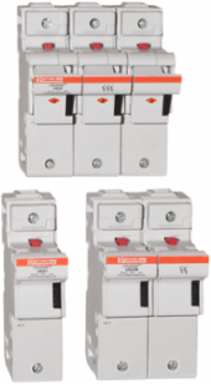

The innovative and comprehensive UltraSafe™ range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. UltraSafe™ range is made of tough and durable thermoplastic or thermoset material.

Specifications

Key Specifications

Rated voltage AC UL	800 V
Frequency (Hz)	50 ... 60 Hz
Rated voltage DC IEC	690 V
ROHS Compliant	Yes
Short Circuit Current Rating (SCCR)	100 kA
Design Details	single pole
Wiring range	1/0 - #14
Connection/Terminal Type	Clip
Torque Rating	35.403 lb-in
Rated Impulse Withstand Voltage	8 kV
Installation Mounting	DIN rail acc. EN 60715
Conventional Free Air thermal Current With Fuse-Links Ith	125 A
Length	3.01 in
Weight	0.472 lb

Rated voltage DC UL	1000 V
Rated voltage AC IEC	690 V
Ampere Rating	125 A
AC or DC	AC/DC
Fuse Size	22x58
Number of Poles	1-Pole
Connection/Terminal Material	Tin-Plated Copper
Fuse Installation Method	Clip-in
Max Fuse Rating	125 A
Rated Insulation Voltage	750 V
Body/Insulating Material	Polyamide
Width	1.38 in
Height	5.02 in
