nVent Hoffman MCS20108R53R Modular Single Door Enclosure 2000x999x800mm Mild Steel Light Gray NEMA Type 3R
nVent Hoffman MCS20108R53R Modular Single Door Enclosure 2000x999x800mm Mild Steel Light Gray NEMA Type 3R
- MPN: MCS20108R53R
- UPC: 783510582739
- PPN: HOF-MCS20108R53R
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description

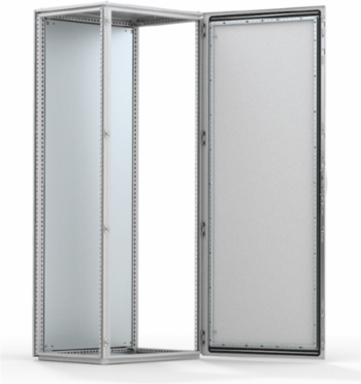

Single-door, combinable, floor-standing enclosure range, MCS, with IP 32/Type 3R rating. This Modular Single Door Type 3R, MCS-3R, MCS20108R53R item measures 2000x1000x800mm with a material of Mild Steel colored Light Gray.
Features
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660 Including integrated external hole pattern
- Door: Mounted with four hinges allowing left or right hand opening; including door frame with 25 mm hole pattern
- Rear panel: Fitted by M6 torx screws; standard facilities for rear door mounting
- Supplied as an accessory
- Removable roof panel
- Lock: Espagnolette 4-point locking system which does not interfere with the enclosure inner space; standard double-bit lock with 3 mm insert
- Bottom plate: Consists of three or four (D>600) pieces
- Mounting plate: Double folded and slides into position with adjustable depths of 25 mm, with the MPD02 accessory
- Earthing/Grounding: All panels are earthed through their fittings and are equipped with a separate earthing stud
- Mounting requirements: Standard delivery ready for combined installation; for stand-alone installation add side panels
- Delivery: Frame with fitted door, rear panel, roof panel, bottom plates, mounting plate and door frame; for enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth; delivery also includes earthing bolts
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,000
- Protection Rating
- NEMA Type 3R
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Weight
- 181.7
Height (H)2,000
Depth (D)800
MaterialMild Steel
ColorLight Gray
Thickness (T)1.5
