Nvent Hoffman

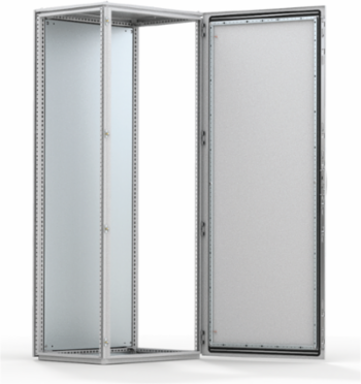

Nvent Hoffman MCS20066R53R Modular Enclosure 2000x600x600mm Mild Steel NEMA Type 3R Light Gray

Modular Enclosure 2000x600x600mm Mild Steel NEMA Type 3R Light Gray
  • MPN: MCS20066R53R
  • UPC: 783510582746
  • PPN: HOF-MCS20066R53R
  • UNSPSC: 39121334

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3452.62/ EA

Description

Single-door, combinable, floor-standing enclosure range, MCS, with IP 32/Type 3R rating. This Modular Single Door Type 3R, MCS-3R, MCS20066R53R item measures 2000x600x600mm with a material of Mild Steel colored Light Gray.

Features

  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660 Including integrated external hole pattern
  • Door: Mounted with four hinges allowing left or right hand opening; including door frame with 25 mm hole pattern
  • Rear panel: Fitted by M6 torx screws; standard facilities for rear door mounting
  • Supplied as an accessory
  • Removable roof panel
  • Lock: Espagnolette 4-point locking system which does not interfere with the enclosure inner space; standard double-bit lock with 3 mm insert
  • Bottom plate: Consists of three or four (D>600) pieces
  • Mounting plate: Double folded and slides into position with adjustable depths of 25 mm, with the MPD02 accessory
  • Earthing/Grounding: All panels are earthed through their fittings and are equipped with a separate earthing stud
  • Mounting requirements: Standard delivery ready for combined installation; for stand-alone installation add side panels
  • Delivery: Frame with fitted door, rear panel, roof panel, bottom plates, mounting plate and door frame; for enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth; delivery also includes earthing bolts

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
600
Protection Rating
NEMA Type 3R
Finish
Powder Coated
Color Code
RAL 7035
Weight
111.4
Height (H)2,000
Depth (D)600
MaterialMild Steel
ColorLight Gray
Thickness (T)1.5

Downloads
