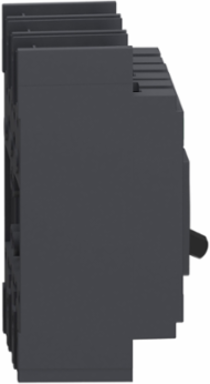

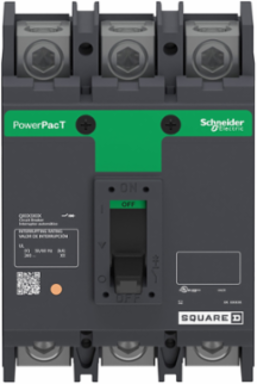

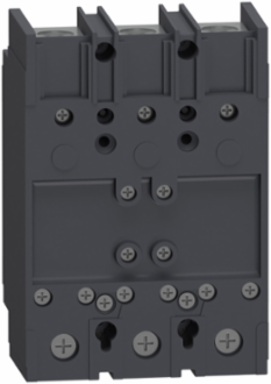

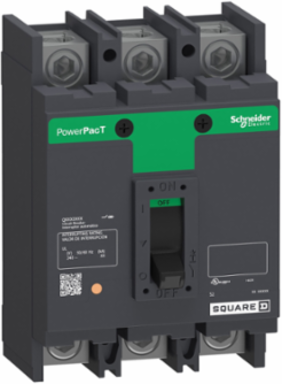

Schneider Electric QBM32125TN PowerPacT Q Circuit Breaker 125A 3 Pole 240V AC 10kA
Schneider Electric QBM32125TN PowerPacT Q Circuit Breaker 125A 3 Pole 240V AC 10kA
- MPN: QBM32125TN
- UPC: 785901690054
- PPN: SCH-QBM32125TN
- UNSPSC: 39121601
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$824.60/ EA
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on the load side and terminal nuts on the line side. It has studs on the load end with no nuts and washers. This PowerPacT Q, 125A, 3 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Features
- Available in 2 or 3 pole design
- Overcurrent protection and switching on AC systems
- Common accessories across the range
- Confidence and power reliability
- UL 489 Listed, CSA, ANCE, IEC certified
Specifications
Physical Attributes
- Wire Stripping Length
- 22 mm
Conformance Attributes
- Product Certifications
- UL, CSA, NOM
StandardsUL, CSA, NEMA, NOM-003-SCFI-2000
Complementary Attributes
- Line Rated Current
- 125-125 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, terminal nut, load
- Carbon Footprint Of The Distribution Phase A4
- 0.6068739446194131, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.40567158089930927, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 29 kg CO2 eq., 29.327475889481956
- Local Publishable Date
- 2025-11-13
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Circuit Breaker Application
- HACR rated
- Control Type
- operating handle
- Halogen Free Status
- Halogen free product
- Magnetic Hold Current
- 1200 A
- Mounting Mode
- unit mount lug)
- Network Frequency
- 50/60 Hz
- Poles Description
- 3P
- Product Or Component Type
- circuit breaker
- Returnability
- No
- Tightening Torque
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Trip Unit Technology
- thermal-magnetic
- Ue Rated Operational Voltage2
- 240 V AC 50/60 Hz UL
- Medium Desc
- Circuit breaker, PowerPacT Q, 125A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%, top of panel
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Global Commercial Status
- Commercialised
- Ue Rated Operational Voltage5
- 240 V AC 50/60 Hz UL
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Durability1000 cycles loaded, 5000 cycles no load
Carbon Footprint Of The End Of Life Phase C1 To C44 kg CO2 eq., 3.544373904497091
Carbon Footprint Of The Manufacturing Phase A1 To A314 kg CO2 eq., 14.392241063000359
Local Data StatusPublishable
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterOutside of Europe
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Continuous Current Rating80 %
Device Applicationdistribution
Local Signalling1 trip indicator green)
Magnetic Tripping Current2400-2400 A
Mounting Supportlug
Package Weight Lbs2.1 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePowerPact
Sustainable PackagingNo
Total Lifecycle Carbon Footprint48 kg CO2 eq.
Utilisation Categorycategory A
Uimp Rated Impulse Withstand Voltage28 kV UL
Stocking FlagY
Pep CodeENVPEP2311048_V2
Pep Verification Date2025-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2[A5]
Energy Model End Of Life C1 C4 2[C1 - C4]
Product NamePowerPact Q
Uimp Rated Impulse Withstand Voltage58 kV UL
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Compliant
- Reach Free SHVC
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 48.276636382498125
- Environmental Disclosure
- ENVPEP2311048_V2
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Verification Date
- 2025-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Halogene PerformanceHalogen free product
Mercury FreeYes
Ambient Air Temperature For Operation40-70 °C
Halogen Content PerformanceHalogen free product
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2311048_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications

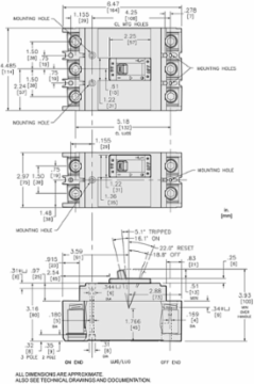

- Depth
- 3.93 in
