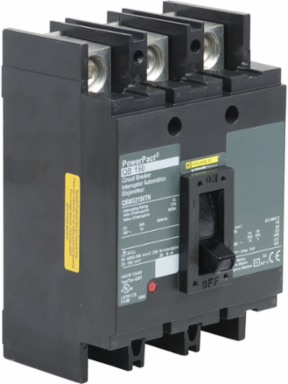

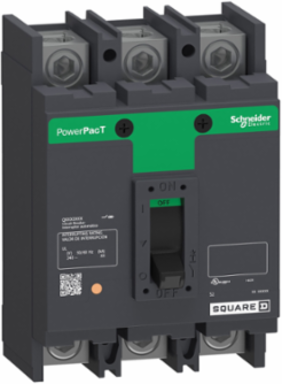

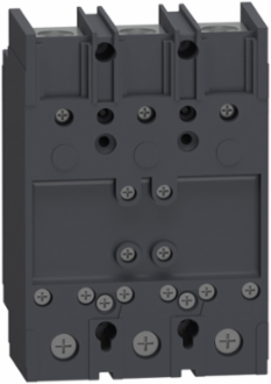

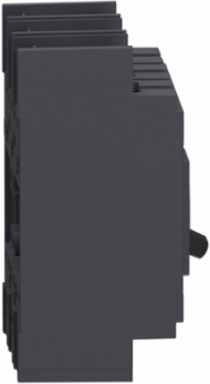

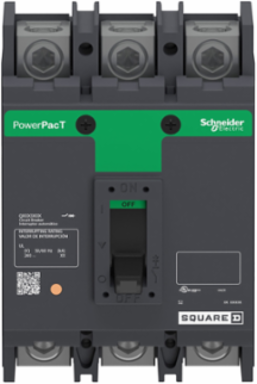

Schneider Electric QBM32150TN PowerPacT Q Circuit Breaker, 150A, 3 Pole, 240VAC, 10kA
Schneider Electric QBM32150TN PowerPacT Q Circuit Breaker, 150A, 3 Pole, 240VAC, 10kA
- MPN: QBM32150TN
- UPC: 785901834878
- PPN: SCH-QBM32150TN
- UNSPSC: 39121601
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$824.60/ EA
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on the load side and terminal nuts on the line side. It has studs on the load end with no nuts and washers. This PowerPacT Q, 150A, 3 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Features
- Available in 2 or 3 pole design
- Overcurrent protection and switching on AC systems
- Common accessories across the range
- Confidence and power reliability
- UL 489 Listed, CSA, ANCE, IEC certified
Specifications
Physical Attributes
- Wire Stripping Length
- 22 mm
Conformance Attributes
- Product Certifications
- UL, CSA, NOM
StandardsUL, CSA, NEMA, NOM-003-SCFI-2000
Complementary Attributes
- Line Rated Current
- 150-150 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, terminal nut, load
- Carbon Footprint Of The Distribution Phase A4
- 0.6068739446194131, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.40567158089930927, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 34 kg CO2 eq., 34.16917554541825
- Local Publishable Date
- 2025-11-13
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Circuit Breaker Application
- HACR rated
- Control Type
- operating handle
- Energy Efficiency Optimized
- False
- Local Signalling
- 1 trip indicator green)
- Magnetic Tripping Current
- 2400-2400 A
- Mounting Support
- lug
- Package Weight Lbs
- 2.1 kg
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PowerPact
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 53 kg CO2 eq.
- Utilisation Category
- category A
- Uimp Rated Impulse Withstand Voltage2
- 8 kV UL
- Stocking Flag
- Y
- Pep Code
- ENVPEP2311048_V2
- Pep Verification Date
- 2025-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- [A5]
- Energy Model End Of Life C1 C4 2
- [C1 - C4]
- Product Name
- PowerPact Q
- Uimp Rated Impulse Withstand Voltage5
- 8 kV UL
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Durability1000 cycles loaded, 5000 cycles no load
Carbon Footprint Of The End Of Life Phase C1 To C44 kg CO2 eq., 3.544373904497091
Carbon Footprint Of The Manufacturing Phase A1 To A314 kg CO2 eq., 14.392241063000359
Local Data StatusPublishable
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Continuous Current Rating80 %
Device Applicationdistribution
Halogen Free StatusHalogen free product
Magnetic Hold Current1200 A
Mounting Modeunit mount lug)
Network Frequency50/60 Hz
Poles Description3P
Product Or Component Typecircuit breaker
ReturnabilityNo
Tightening Torque28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
Trip Unit Technologythermal-magnetic
Ue Rated Operational Voltage2240 V AC 50/60 Hz UL
Medium DescCircuit breaker, PowerPacT Q, 150A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%, top of panel
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; United States, US
Global Commercial StatusCommercialised
Ue Rated Operational Voltage5240 V AC 50/60 Hz UL
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 40-70 °C
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2311048_V2
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Carbon Footprint53.11833603843442
Environmental DisclosureENVPEP2311048_V2
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 3.93 in
