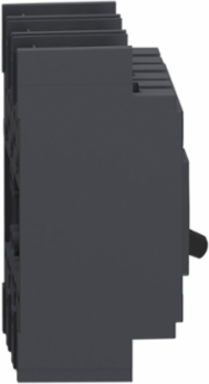

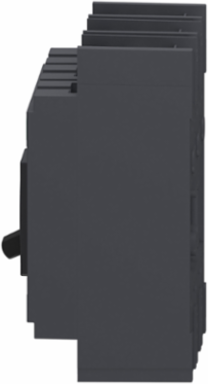

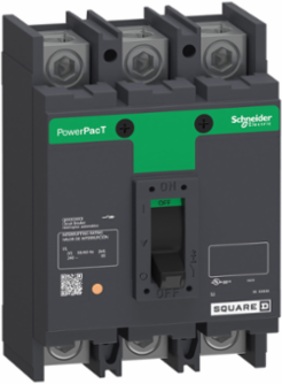

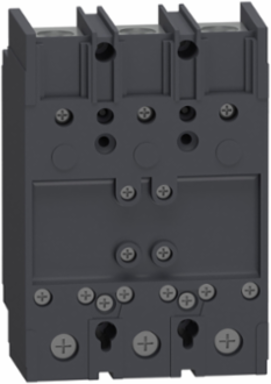

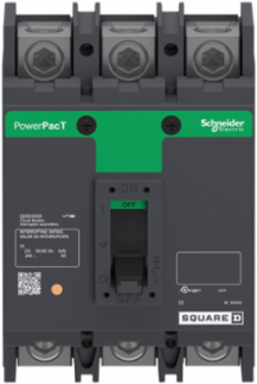

Square D QDL32090 PowerPact Q 90A Circuit Breaker, 3 Pole, 240V AC, 25kA, Thermal-Magnetic
- MPN: QDL32090
- UPC: 785901522874
- PPN: SCH-QDL32090
CAD
$1649.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The PowerPact® Q-frame line of circuit breakers include QB, QD, QG and QJ molded case circuit breakers and QB automatic switches. They are rated 240 Vac, 250 A max. and are available in lug or bus-connected unit-mount constructions, or I-Line® group-mounted construction. PowerPact Q-frame circuit breakers are rated for 240 Vac (208Y/120 Vac for 3-pole 100 kA) and are available with UL® Listed interruption ratings from 10 kA to 100 kA. Unit-mount circuit breakers are available with lugs on both ends for cabled applications or with mounting studs for bus-mounted applications. These circuit breakers may be mounted in individual enclosures, metering devices, panelboards or switchboards. The PowerPact Q-frame circuit breaker is a direct replacement for the Q2 Series device. This PowerPact Q, circuit breaker is a 3-pole and has a rated current of 90A. This breaker has a breaking capacity of 25kA@240VAC and has a continuous currrent rating of 80 %. This unit mounted breaker has a thermal-magnetic trip unit technology with a magnetic hold current of 1000 A and a magnetic tripping current of 1800A. Dimensions for this product are 6.47 in (H), 4.5 in (W), 3.93 in (D). This product complys to UL listed, CSA & IEC standards.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- circuit breaker
- Device Application
- distribution
Product NamePowerPact Q
RangePowerPact
Complementary
- Circuit Breaker Application
- HACR rated
- Network Frequency
- 50/60 Hz
- [In] Rated Current
- 90-90 A
- Trip Unit Technology
- thermal-magnetic
- Continuous Current Rating
- 80 %
- Mechanical Durability
- 1000 cycles loaded || 5000 cycles no load
- Tightening Torque
- 28-28 N.m 25-150 mm² AWG 4...300 kcmil)
- Breaking Capacity Code
- D
- Poles Description
- 3P
- Width
- 4.5 in
- Depth
- 3.93 in
- Magnetic Hold Current
- 1000 A
Mounting Modeunit mount lug)
Wire Stripping Length22 mm
Utilisation Categorycategory A
Height6.47 in
Breaking Capacity25 kA 120/208 V AC 50/60 Hz UL || 25 kA 240 V AC 50/60 Hz UL
[Ue] Rated Operational Voltage240 V AC 50/60 Hz UL
Mounting Supportlug
Magnetic Tripping Current1800-1800 A
Local Signalling1 trip indicator green)
Electrical Connectionlugs, load || lugs, line
[Uimp] Rated Impulse Withstand Voltage8 kV UL
Control Typeoperating handle
Environment
- Ambient Air Temperature For Operation
- 40-70 °C
- Product Certifications
- UL || CSA || NOM
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406032EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free product
