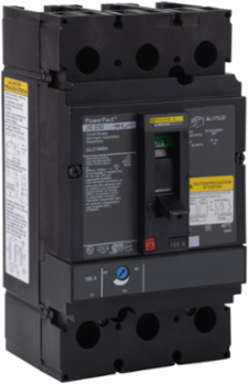

PowerPact J Circuit Breaker, 100A, 3 Pole, 500VDC, 20kA, Thermal Magnetic

PowerPact J Circuit Breaker, 100A, 3 Pole, 500VDC, 20kA, Thermal Magnetic - https://images.province-electric.com/SCH-JGL37100D81/molded-case-circuit-breaker-medium-alt-isio.webp

Documentation & Downloads

Square D JGL37100D81 PowerPact J Circuit Breaker, 100A, 3 Pole, 500VDC, 20kA, Thermal Magnetic

MPN: JGL37100D81
UPC: 785901583332
PPN: SCH-JGL37100D81

CAD

$4397.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

PowerPact J Circuit Breaker, 100A, 3 Pole, 500VDC, 20kA, Thermal Magnetic

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: United States

Depth86 mm

Communications & Management Attributes

Communication Interface: Modbus, Ethernet

Physical Attributes

Wire Stripping Length: 25 mm

Complementary Attributes

Line Rated Current: 100-100 A

Important Information Attributes

Persona Type Ids: LC, OM, OM8, PB

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Electrical Connection: lugs, line, lugs, load

Protection Type: overload protection, short-circuit protection

[Ics] Rated Service Breaking Capacity: 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2

Carbon Footprint Of The End-of-life Phase [C1 To C4]: 4 kg CO2 eq., 3.8687571226078603

Carbon Footprint Of The Manufacturing Phase [A1 To A3]: 13 kg CO2 eq., 12.77614809696986

Local Data Status: Publishable

Return Indicator: Y

Stock Policy: 2

Serviceability: No

Field Service Division: PPIBS

Scope Perimeter: At least in Europe

End Of Life Doc Ref: ENVEOLI2206031_V2

Reach Full Compliance Status Id: CONTAINS_SVHC

Rohs Eur In Scope: Yes

Rohs Eur Conformity Date: 2539

China Rohs In Scope: No

Without Single Use Plastic: No

Tier Id: 1

Function Option Id: STANDARD

Product Kit Identifier: N

Circuit Breaker Application: HACR rated

Control Type: toggle

Energy Efficiency Optimized: False

Magnetic Tripping Current: 350-600 A

Mounting Support: lug

Number Of Poles: 3P

Product Name: PowerPact J

Quality Labels: CE

Returnability: Yes

Suitability For Isolation: yes IEC 60947-2

Terminal Identifier: AL250JD

Total Lifecycle Carbon Footprint: 551 kg CO2 eq.

Utilisation Category: category A

Database Version: 2024-01

Pcr Version: PEP-PCR-ed4-2021 09 06

Type Of Verification For The Pep: Independent external review

Functional-unit Description: Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.

Functional-unit Unit: unit

Energy Consumption On Product Lifetime, In Kwh: 1108.6875

Energy Model - Installation [A5]: [A5]

Energy Model - End Of Life [C1-c4]: [C1 - C4]

Height Nominal: 191 mm

[Ue] Rated Operational Voltage: 600 V AC 50/60 Hz IEC 60947-3

[Uimp] Rated Impulse Withstand Voltage: 8 kV IEC 60947-2

Nbr. Of Units In Pkg.: 1

Take-back: No

Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder

Market SegmentationCommercial, Industrial

Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in)

Certificate AgencyUL, CSA, NOM

Carbon Footprint Of The Distribution Phase [A4]0.6554238601889661, 0.7 kg CO2 eq.

Carbon Footprint Of The Installation Phase [A5]0.009651929011281793, 0 kg CO2 eq.

Carbon Footprint Of The Use Phase [B2, B3, B4, B6]533 kg CO2 eq., 533.4081683607691

Local Publishable Date2025-11-18

Stocking FlagY

Device TypeLV equipment - Low voltage circuit breaker

TraceabilityYes

Average Life Duration15 year(s)

Eoli Availability DisplayYes

Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold

Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant By Exemption

Rohs Eur Full Compliance StatusCompliant By Exemption

With Recycled CardboardYes

Product Contributes To Saved And Avoided EmissionsNo

Tier1

Function OptionStandard

Awg GaugeAWG 3/0...350 kcmil aluminium/copper terminals

Continuous Current Rating80 %

Device Applicationdistribution

Local Signallingswitched off (OFF) 1 trip indicator green)

Mounting Modeunit mount lug)

Network Frequency50/60 Hz

Product AvailabilityNon-Stock - Not normally stocked in distribution facility

Product Or Component Typecircuit breaker

RangePowerPact

Software Versionv6.2.4

Sustainable PackagingNo

Tightening Torque25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)

Trip Unit Technologythermal-magnetic

Pep CodeENVPEP2206031EN

Pep Verification Date2025-05-01

Psr VersionPSR-0005-ed3-2023 12 08

Data Sourceextrapolated product

Functional-unit Quantity1

Reference Lifetime, In Y20

Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US

Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US

Recyclability Potential, In %51

Width Nominal104 mm

[Ui] Rated Insulation Voltage750 V IEC 60947-2

Long Time Pick-up Adjustment Range0.25...1 x In

Package Weight(Lbs)2.268 kg

Warranty (In Months)18

Environment Attributes Main

China Rohs Regulation: Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Storage: -50-85 °C, -50-85 °C

Take Back: No

Mercury Free: Yes

Circularity Profile: ENVEOLI2206031_V2

Eu Rohs Directive: Compliant By Exemption

Packaging Made With Recycled Cardboard: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Pep Verification Date: 2025-05-01

Psr Version: PSR-0005-ed3-2023 12 08

Ambient Air Temperature For Operation-25-70 °C, -25-70 °C

Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating

Recycled Metal Content At Cr Level0 %

Carbon Footprint550.7181493695471

Environmental DisclosureENVPEP2206031EN

Ip Degree Of Protectionfront cover IP40

Packaging Without Single Use PlasticNo

Pep CodeENVPEP2206031EN

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent external review
