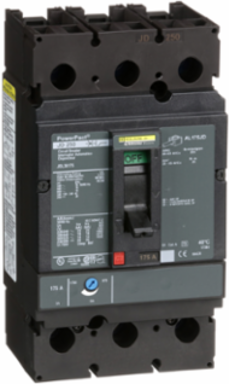

Square D JDL36175 PowerPact J Circuit Breaker 175A 3 Pole 600VAC 14kA
- MPN: JDL36175
- UPC: 785901706663
- PPN: SCH-JDL36175
CAD
$3468.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The PowerPact™ J-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact J, circuit breaker and is 3-pole and has a breaking capacity of 14kA@600VAC and has a rated current of 175A. This ia a unit mount breaker and complies to UL listed, IEC, CCC, CE & CSA standards. With a magnetic hold current of 875A and a magnetic tripping current of 1750-1750A Dimensions for this product are 7.52 in (H),4.12 in (W), 5 in (D) with an ambient temperature rating of 40 °C. This product comes with an 18 month warranty.
Features
- The Square D JDL36175 delivers a continuous 175-Amp rating and handles up to 600 VAC, making it engineered specifically for heavy-duty industrial and commercial power distribution networks.
- Boasting a D-Code breaking capacity, this molded case circuit breaker delivers an interrupting rating of 18 kA at 480 V and 14 kA at 600 V. This robust performance prevents catastrophic equipment failure and expensive downtime by instantly quenching dangerous faults before they can damage downstream facility assets.
- This unit utilizes the standard PowerPact J-Frame footprint, measuring 7.5" in Height x 4.09" in Width x 3.4" in Depth, allowing for seamless visual and mechanical consistency with existing Square D installations. Designed for unit-mount flexibility, it drops directly into standard enclosures using standard line- and load-side mechanical lugs without requiring costly panel alterations.
- The integrated factory-installed terminal lugs are designed to accommodate a wide range of wiring specifications, accepting wire sizes from AWG 4 up to AWG 4/0 in both aluminum and copper conductors. The premium construction ensures a secure, high-conductivity connection capable of handling up to 221.3 lbf.in of torque to prevent loose connections, thermal failure, and dangerous arcing.
- Fully certified to meet CSA, UL, CE, and IEC standards, the JDL36175 satisfies strict code compliance requirements for commercial inspections across Canada. Additionally, it is certified as a Green Premium product with full EU RoHS compliance, ensuring an environmentally responsible design that aligns with modern sustainable engineering benchmarks.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
Product NamePowerPact J
Device Applicationdistribution
Complementary
- Mounting Mode
- unit mount lug)
- Terminal Identifier
- AL175JD
- Trip Unit Technology
- thermal-magnetic
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz IEC 60947-3
- Mounting Support
- lug
- Magnetic Tripping Current
- 1750-1750 A
- Number Of Slots
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Net Weight
- 2.4 kg
- Magnetic Hold Current
- 875 A
- Circuit Breaker Application
- HACR rated
- [In] Rated Current
- 175-175 A
- Long Time Pick-Up Adjustment Range
- 0.25...1 x In
- Breaking Capacity
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Suitability For Isolation
- yes IEC 60947-2
- Poles Description
- 3P
- Awg Gauge
- AWG 4...AWG 4/0 aluminum/copper terminal
- Depth
- 86 mm
Network Frequency50/60 Hz
[Ics] Rated Service Breaking Capacity25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Height191 mm
Tightening Torque25-25 N.m 25-95 mm² AWG 4...AWG 4/0)
Breaking Capacity CodeD
Local Signallingswitched off (OFF) 1 trip indicator green)
Electrical Connectionlugs, line || lugs, load
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Control Typetoggle
Wire Stripping Length25 mm
Utilisation Categorycategory A
Continuous Current Rating80 %
[Ui] Rated Insulation Voltage750 V IEC 60947-2
Communication InterfaceModbus || Ethernet
Protection Typeoverload protection || short-circuit protection
Width104 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Certifications
- UL || CSA || NOM
- Pollution Degree
- 3 IEC 60947-1
- Quality Labels
- CE
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ip Degree Of Protectionfront cover IP40
Ambient Air Temperature For Storage-50-85 °C
Operating Altitude< 2000 m without derating || 5000 m with derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2206031EN
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2206031EN
