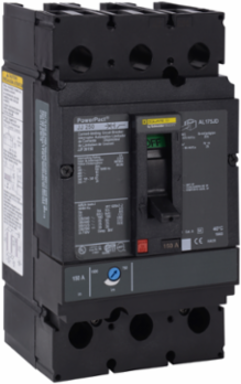

Square D JJL36225C PowerPact J Circuit Breaker 225A 3 Pole 600VAC 25kA Thermal Magnetic

MPN: JJL36225C
UPC: 785901484936
PPN: SCH-JJL36225C

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has lugs on both the line and load sides. This PowerPacT J, 225A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: United States

Depth86 mm

Communications & Management Attributes

Communication Interface: Modbus, Ethernet

Physical Attributes

Wire Stripping Length: 25 mm

Complementary Attributes

Line Rated Current: 225-225 A

Important Information Attributes

Persona Type Ids: LC, OM, OM8, PB

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Electrical Connection: lugs, line, lugs, load

Protection Type: overload protection, short-circuit protection

[Ics] Rated Service Breaking Capacity: 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2

Carbon Footprint Of The End-of-life Phase [C1 To C4]: 3 kg CO2 eq., 3.4815402501069856

Carbon Footprint Of The Manufacturing Phase [A1 To A3]: 11 kg CO2 eq., 11.497406642819879

Local Data Status: Publishable

Return Indicator: N

Stock Policy: 2

Serviceability: No

Field Service Division: PPIBS

Weee Scope: In

Scope Perimeter: At least in Europe

End Of Life Doc Ref: ENVEOLI2206031_V2

Reach Full Compliance Status Id: CONTAINS_SVHC

Rohs Eur In Scope: Yes

Rohs Eur Conformity Date: 2539

China Rohs In Scope: No

Without Single Use Plastic: No

Tier Id: 1

Function Option Id: STANDARD

Product Kit Identifier: N

Circuit Breaker Application: HACR rated

Control Type: toggle

Energy Efficiency Optimized: False

Magnetic Hold Current: 1125 A

Mounting Mode: unit mount lug)

Network Frequency: 50/60 Hz

Product Availability: Non-Stock - Not normally stocked in distribution facility

Product Or Component Type: circuit breaker

Range: PowerPact

Software Version: v6.2.4

Sustainable Packaging: No

Tightening Torque: 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)

Trip Unit Technology: thermal-magnetic

Weee Label: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Database Version: 2024-01

Pcr Version: PEP-PCR-ed4-2021 09 06

Type Of Verification For The Pep: Independent external review

Functional-unit Description: Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.

Functional-unit Unit: unit

Energy Model - Manufacturing [A1-a3]: Electricity Mix; Low voltage; 2020; United States, US

Energy Model - Use [B6]: Electricity Mix; Low voltage; 2020; United States, US

Recyclability Potential, In %: 51

Width Nominal: 104 mm

[Ui] Rated Insulation Voltage: 750 V IEC 60947-2

Long Time Pick-up Adjustment Range: 0.25...1 x In

Package Weight(Lbs): 2.041 kg

Warranty (In Months): 18

Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder

Market SegmentationCommercial, Industrial

Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in)

Certificate AgencyUL, CSA, NOM

Carbon Footprint Of The Distribution Phase [A4]0.5898236766515345, 0.6 kg CO2 eq.

Carbon Footprint Of The Installation Phase [A5]0.008685884970029163, 0 kg CO2 eq.

Carbon Footprint Of The Use Phase [B2, B3, B4, B6]504 kg CO2 eq., 504.0625430799788

Local Publishable Date2025-11-13

Stocking FlagY

Device TypeLV equipment - Low voltage circuit breaker

TraceabilityYes

Average Life Duration15 year(s)

Weee Product Category5

Eoli Availability DisplayYes

Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold

Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant By Exemption

Rohs Eur Full Compliance StatusCompliant By Exemption

With Recycled CardboardYes

Product Contributes To Saved And Avoided EmissionsNo

Tier1

Function OptionStandard

Awg GaugeAWG 3/0...350 kcmil aluminium/copper terminals

Continuous Current Rating100 %

Device Applicationdistribution

Local Signallingswitched off (OFF) 1 trip indicator green)

Magnetic Tripping Current2250-2250 A

Mounting Supportlug

Number Of Poles3P

Product NamePowerPact J

Quality LabelsCE

ReturnabilityNo

Suitability For Isolationyes IEC 60947-2

Terminal IdentifierAL250JD

Total Lifecycle Carbon Footprint520 kg CO2 eq.

Utilisation Categorycategory A

Pep CodeENVPEP2206031EN

Pep Verification Date2025-05-01

Psr VersionPSR-0005-ed3-2023 12 08

Data Sourceextrapolated product

Functional-unit Quantity1

Reference Lifetime, In Y20

Energy Model - Installation [A5][A5]

Energy Model - End Of Life [C1-c4][C1 - C4]

Height Nominal191 mm

[Ue] Rated Operational Voltage600 V AC 50/60 Hz IEC 60947-3

[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2

Nbr. Of Units In Pkg.1

Take-backNo

Environment Attributes Main

China Rohs Regulation: Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Storage: -50-85 °C, -50-85 °C

Take Back: No

Mercury Free: Yes

Circularity Profile: ENVEOLI2206031_V2

Eu Rohs Directive: Compliant By Exemption

Packaging Made With Recycled Cardboard: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Pep Verification Date: 2025-05-01

Psr Version: PSR-0005-ed3-2023 12 08

Ambient Air Temperature For Operation-25-70 °C, -25-70 °C

Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating

Recycled Metal Content At Cr Level0 %

Carbon Footprint519.6399995345272

Environmental DisclosureENVPEP2206031EN

Ip Degree Of Protectionfront cover IP40

Packaging Without Single Use PlasticNo

Pep CodeENVPEP2206031EN

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent external review
