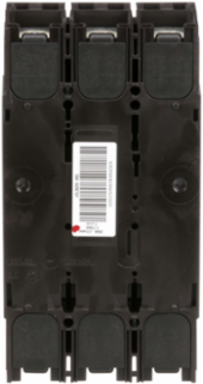

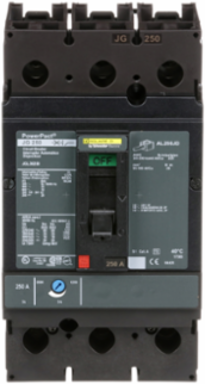

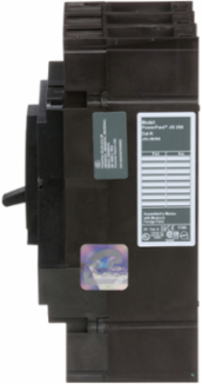

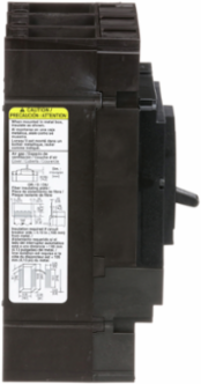

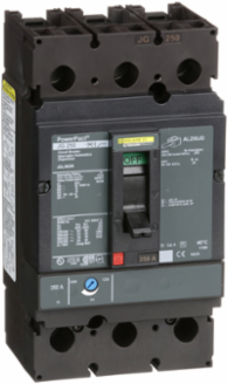

Square D JGL36250 PowerPact J Circuit Breaker 250A 3 Pole 600VAC 18kA Thermal Magnetic
- MPN: JGL36250
- UPC: 785901433897
- PPN: SCH-JGL36250
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Features
- Engineered for demanding commercial and industrial applications, this 3-pole, 250-Amp circuit breaker supports system operational voltages up to 600V AC. It ensures reliable, continuous overcurrent management for heavy machinery, branch circuits, and large-scale distribution panels without premature nuisance tripping.
- Featuring a high-performance "G" breaking capacity code, this unit delivers an impressive 35 kAIC interrupting rating at 480V AC (and 18 kAIC at 600V AC). This robust short-circuit defense shields your expensive downstream electrical components from catastrophic failure during high-fault events, safeguarding your facility's operational uptime.
- Utilizing precise, non-interchangeable thermal-magnetic trip technology, the breaker features a fixed 1250A magnetic hold and a 2500A instantaneous tripping current. This allows the system to seamlessly accommodate temporary inrush currents from heavy motor startups while executing rapid, clear-cut isolation the moment a true thermal overload or short-circuit is detected.
- Designed for versatile unit-mount (feed-thru) installations, this J-Frame breaker comes equipped with factory-installed mechanical line and load side lugs that accept AWG 3/0 to 350 kcmil aluminum or copper wiring. This standard lug configuration eliminates the hassle of sourcing separate terminal kits, dramatically reducing your field installation time and ensuring clean, low-resistance electrical connections.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Canada
Depth86 mm
Communications & Management Attributes
- Communication Interface
- Modbus, Ethernet
Physical Attributes
- Wire Stripping Length
- 25 mm
Complementary Attributes
- Line Rated Current
- 250-250 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Protection Type
- overload protection, short-circuit protection
- [Ics] Rated Service Breaking Capacity
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-235 kA 380/440/415 V AC 50/60 Hz IEC 60947-218 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4 kg CO2 eq., 3.513950472915429
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 12 kg CO2 eq., 11.60443786585446
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2206031_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2539
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Continuous Current Rating
- 80 %
- Device Application
- distribution
- Local Signalling
- switched off (OFF) 1 trip indicator green)
- Magnetic Tripping Current
- 2500-2500 A
- Mounting Support
- lug
- Number Of Poles
- 3P
- Product Name
- PowerPact J
- Range
- PowerPact
- Software Version
- v6.2.4
- Sustainable Packaging
- No
- Tightening Torque
- 25-25 N.m 95-185 mm² (3/0 AWG...350 kcmil)
- Trip Unit Technology
- thermal-magnetic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 1153.692
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 191 mm
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz IEC 60947-3
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)
Certificate AgencyUL, CSA, NOM
Carbon Footprint Of The Distribution Phase [A4]0.5953144409123767, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00876674328185207, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]555 kg CO2 eq., 555.0365977278873
Local Publishable Date2026-03-25
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge3/0 AWG...350 kcmil aluminium/copper terminals
Control Typetoggle
Energy Efficiency OptimizedFalse
Magnetic Hold Current1250 A
Mounting Modeunit mount lug)
Network Frequency50/60 Hz
Product AvailabilityStock - Normally stocked in distribution facility
Quality LabelsCE
ReturnabilityYes
Suitability For Isolationyes IEC 60947-2
Terminal IdentifierAL250JD
Total Lifecycle Carbon Footprint571 kg CO2 eq.
Utilisation Categorycategory A
Pep CodeENVPEP2206031EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3-2023 12 08
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %51
Width Nominal104 mm
[Ui] Rated Insulation Voltage750 V IEC 60947-2
Long Time Pick-up Adjustment Range0.25...1 x In
Package Weight(Lbs)2.200 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206031_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
Recycled Metal Content At Cr Level0 %
Carbon Footprint570.7590672508513
Environmental DisclosureENVPEP2206031EN
Ip Degree Of Protectionfront cover IP40
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206031EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
ETIM
- ETIM 8
- EC000228
ETIM 9EC000228
