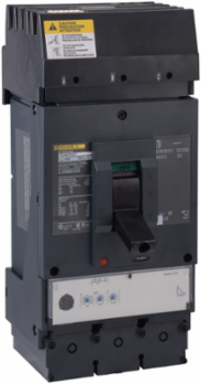

Square D LDA36400CU33X PowerPact L Circuit Breaker, 400A, 3 Pole, 600V AC, 14kA
- MPN: LDA36400CU33X
- UPC: 785901609506
- PPN: SCH-LDA36400CU33X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Manufactured by Schneider Electric, this circuit breaker is an essential component in power distribution systems, designed to maintain safety and reliability. With a robust capacity of 400A and a configuration of three poles, it is capable of handling voltages up to 600V AC and provides a fault current rating of 14kA. This molded case circuit breaker is engineered to offer effective protection against overloads and short circuits, making it a crucial element for ensuring the smooth operation of industrial and commercial electrical systems. Its reliable performance and durability make it a top choice for panel builders and electrical professionals alike.
Documentation & Downloads
Specifications
Additional
- Amperage
- 400 A
- Breaking Capacity
- 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC, 20 kA 250 V DC
- Rated Insulation Voltage
- 750 V IEC 60947-2
- Continuous Current Rating
- 100%
- Mounting Mode
- I-Line bracket
- AWG Gauge
- 2 x AWG 2/0...500 kcmil aluminum/copper
- Power Wire Stripping Length
- 31 mm, 61 mm
- Net Weight
- 6.2 kg (13.67 lb)
- Protection Technology
- Current limiter
- Communication Interface
- Modbus, Ethernet
- Standards
- UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- IP Degree of Protection
- Front cover IP40
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Operating Altitude
- < 2000 m without derating, 5000 m with derating
- Country of Origin
- US
- Mercury Free
- Yes
- Color
- Black
Voltage600 V AC 50/60 Hz IEC 60947-3
Rated Service Breaking Capacity25 kA 220/240 V AC, 18 kA 380/415 V AC, 14 kA 500/525 V AC, 20 kA 250 V DC, 20 kA 500 V DC IEC 60947-2
Rated Impulse Withstand Voltage8 kV IEC 60947-2
Number of Poles3P
Terminal IdentifierAL600LS52K3
Local Signalling1 LED green (Ready), Alarm LED 90% Ir orange, Alarm LED 105% Ir red, Trip indicator green (OFF)
Dimensions (HxWxD)340 mm x 140 mm x 110 mm (13.39 in x 5.51 in x 4.33 in)
Control TypeToggle
Trip Unit TechnologyElectronic, MicroLogic 3.3 S
Circuit Breaker ApplicationHACR rated
Product CertificationsUL, CSA, NOM
Pollution Degree3 IEC 60947-1
Ambient Air Temperature for Storage-50 to 85 °C (-58 to 185 °F)
Warranty18 months
PVC FreeYes
RoHS ComplianceCompliant with Exemptions
Phase ConnectionABC
