Circuit breaker, PowerPacT H, 90A, 3 pole, 600VAC, 50kA, lugs, thermal magnetic, 100%

Documentation & Downloads

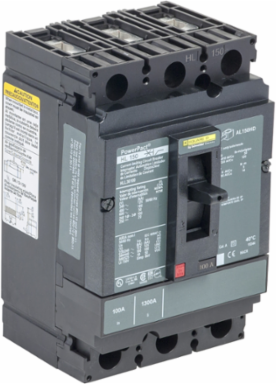

Square D HLL36090C Circuit breaker, PowerPacT H, 90A, 3 pole, 600VAC, 50kA, lugs, thermal magnetic, 100%

MPN: HLL36090C
PPN: SCH-HLL36090C

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 90A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Documentation & Downloads

Specifications

Key Specifications

Depth: 86 mm

Communications & Management Attributes

Communication Interface: Modbus, Ethernet

Physical Attributes

Color: Black

Wire Stripping Length16 mm

Complementary Attributes

Line Rated Current: 90-90 A

Important Information Attributes

Electrical Connection: lugs, line, lugs, load

Tightening Torque: 5-5 N.m 2.5-6 mm² (14 AWG...10 AWG), 14-14 N.m 10-95 mm² (8 AWG...3/0 AWG)

[Ics] Rated Service Breaking Capacity: 125 kA 220/240 V AC 50/60 Hz IEC 60947-2100 kA 380/440/415 V AC 50/60 Hz IEC 60947-250 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2

Carbon Footprint Of The End-of-life Phase [C1 To C4]: 3 kg CO2 eq., 3.391969932864633

Carbon Footprint Of The Manufacturing Phase [A1 To A3]: 9 kg CO2 eq., 9.231241412339646

Local Data Status: Publishable

Return Indicator: Y

Device Type: LV equipment - Low voltage circuit breaker

Traceability: Yes

Average Life Duration: 15 year(s)

Weee Product Category: 5

Eoli Availability Display: Yes

Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold

Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold

Rohs Eur Status: Compliant By Exemption

Rohs Eur Full Compliance Status: Compliant By Exemption

China Rohs Label: 7

Without Single Use Plastic: No

Product Kit Identifier: N

Circuit Breaker Application: HACR rated

Control Type: toggle

Local Signalling: switched off (OFF) 1 trip indicator green)

Magnetic Tripping Current: 1450-1450 A

Mounting Support: lug

Number Of Poles: 3P

Product Name: PowerPact H

Protected Poles Description: 3t

Quantity Per Set: 1

Returnability: Yes

Suitability For Isolation: yes IEC 60947-2

Terminal Identifier: AL150HD

Trip Unit Technology: thermal-magnetic

Pep Code: ENVPEP2206027EN

Pep Verification Date: 2025-05-01

Psr Version: PSR-0005-ed3-2023 12 08

Data Source: extrapolated product

Functional-unit Quantity: 1

Reference Lifetime In Y: 20

Energy Model - Installation [A5]: No energy used

Energy Model - End Of Life [C1-c4]: Global, European and French datasets are used.

Height Nominal: 163 mm

[Ue] Rated Operational Voltage: 690 V AC 50/60 Hz IEC 60947-3

[Uimp] Rated Impulse Withstand Voltage: 8 kV IEC 60947-2

Package Weight(Lbs): 1.814 kg

Warranty (In Months): 18

Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)

Certificate AgencyUL, CSA, NOM

Carbon Footprint Of The Distribution Phase [A4]0.3812916237468922, 0.4 kg CO2 eq.

Carbon Footprint Of The Installation Phase [A5]0.01827056403892661, 0 kg CO2 eq.

Carbon Footprint Of The Use Phase [B2 B3 B4 B6]271 kg CO2 eq., 271.3962912431812

Local Publishable Date2025-12-24

Stocking FlagY

ServiceabilityNo

Field Service DivisionPPIBS

Weee ScopeIn

Scope PerimeterOutside of Europe

End Of Life Doc RefENVEOLI2206027_V2

Reach Full Compliance Status IdCONTAINS_SVHC

Rohs Eur In ScopeYes

Rohs Eur Conformity Date2539

China Rohs In ScopeYes

With Recycled CardboardYes

Product Contributes To Saved And Avoided EmissionsNo

Awg Gauge14 AWG...3/0 AWG aluminium/copper terminal

Continuous Current Rating100 %

Device Applicationdistribution

Magnetic Hold Current800 A

Mounting Modeunit mount lug)

Network Frequency50/60 Hz

Product AvailabilityNon-Stock - Not normally stocked in distribution facility

Product Or Component Typecircuit breaker

Quality LabelsCE

RangePowerPact

Software Versionv6.2.4

Sustainable PackagingNo

Total Lifecycle Carbon Footprint284 kg CO2 eq.

Utilisation Categorycategory A

Database Version2024-01

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent external review

Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.

Functional-unit Unitunit

Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US

Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US

Recyclability Potential In %45

Width Nominal104 mm

[Ui] Rated Insulation Voltage750 V IEC 60947-2

Nbr. Of Units In Pkg.1

Take-backNo

Customs Code8536200020

Environment Attributes Main

Ambient Air Temperature For Operation: -25-70 °C, -25-70 °C

Operating Altitude: < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
