Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 50kA, lugs, thermal magnetic, 100%

Documentation & Downloads

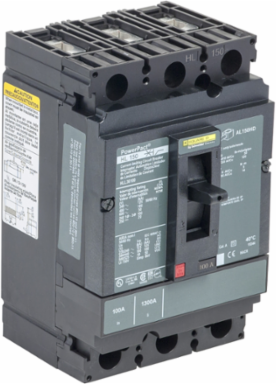

Square D HLL36060C Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 50kA, lugs, thermal magnetic, 100%

MPN: HLL36060C
PPN: SCH-HLL36060C

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: Mexico

Depth86 mm

Communications & Management Attributes

Communication Interface: Modbus, Ethernet

Physical Attributes

Color: Black

Wire Stripping Length16 mm

Complementary Attributes

Line Rated Current: 60-60 A

Important Information Attributes

Electrical Connection: lugs, line, lugs, load

Tightening Torque: 5-5 N.m 2.5-6 mm² (14 AWG...10 AWG), 14-14 N.m 10-95 mm² (8 AWG...3/0 AWG)

[Ics] Rated Service Breaking Capacity: 125 kA 220/240 V AC 50/60 Hz IEC 60947-2100 kA 380/440/415 V AC 50/60 Hz IEC 60947-250 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2

Carbon Footprint Of The End-of-life Phase [C1 To C4]: 3 kg CO2 eq., 3.391969932864633

Carbon Footprint Of The Manufacturing Phase [A1 To A3]: 9 kg CO2 eq., 9.231241412339646

Local Data Status: Publishable

Return Indicator: Y

Stock Policy: 2

Serviceability: No

Field Service Division: PPIBS

Weee Scope: In

Scope Perimeter: Outside of Europe

End Of Life Doc Ref: ENVEOLI2206027_V2

Reach Full Compliance Status Id: CONTAINS_SVHC

Rohs Eur In Scope: Yes

Rohs Eur Conformity Date: 2539

China Rohs In Scope: Yes

With Recycled Cardboard: Yes

Product Contributes To Saved And Avoided Emissions: No

Awg Gauge: 14 AWG...3/0 AWG aluminium/copper terminal

Continuous Current Rating: 100 %

Device Application: distribution

Magnetic Hold Current: 800 A

Mounting Mode: unit mount lug)

Network Frequency: 50/60 Hz

Product Availability: Stock - Normally stocked in distribution facility

Product Or Component Type: circuit breaker

Quality Labels: CE

Range: PowerPact

Software Version: v6.2.4

Sustainable Packaging: No

Total Lifecycle Carbon Footprint: 284 kg CO2 eq.

Utilisation Category: category A

Database Version: 2024-01

Pcr Version: PEP-PCR-ed4-2021 09 06

Type Of Verification For The Pep: Independent external review

Functional-unit Description: Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.

Functional-unit Unit: unit

Energy Model - Manufacturing [A1-a3]: Electricity Mix; Low voltage; 2020; United States, US

Energy Model - Use [B6]: Electricity Mix; Low voltage; 2020; United States, US

Recyclability Potential In %: 45

Width Nominal: 104 mm

[Ui] Rated Insulation Voltage: 750 V IEC 60947-2

Nbr. Of Units In Pkg.: 1

Take-back: No

Customs Code: 8536200020

Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)

Certificate AgencyUL, CSA, NOM

Carbon Footprint Of The Distribution Phase [A4]0.3812916237468922, 0.4 kg CO2 eq.

Carbon Footprint Of The Installation Phase [A5]0.01827056403892661, 0 kg CO2 eq.

Carbon Footprint Of The Use Phase [B2 B3 B4 B6]271 kg CO2 eq., 270.7900569594765

Local Publishable Date2025-11-13

Stocking FlagY

Device TypeLV equipment - Low voltage circuit breaker

TraceabilityYes

Average Life Duration15 year(s)

Weee Product Category5

Eoli Availability DisplayYes

Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold

Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant By Exemption

Rohs Eur Full Compliance StatusCompliant By Exemption

China Rohs Label7

Without Single Use PlasticNo

Product Kit IdentifierN

Circuit Breaker ApplicationHACR rated

Control Typetoggle

Local Signallingswitched off (OFF) 1 trip indicator green)

Magnetic Tripping Current1450-1450 A

Mounting Supportlug

Number Of Poles3P

Product NamePowerPact H

Protected Poles Description3t

Quantity Per Set1

ReturnabilityYes

Suitability For Isolationyes IEC 60947-2

Terminal IdentifierAL150HD

Trip Unit Technologythermal-magnetic

Pep CodeENVPEP2206027EN

Pep Verification Date2025-05-01

Psr VersionPSR-0005-ed3-2023 12 08

Data Sourceextrapolated product

Functional-unit Quantity1

Reference Lifetime In Y20

Energy Model - Installation [A5]No energy used

Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.

Height Nominal163 mm

[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-3

[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2

Package Weight(Lbs)1.814 kg

Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation: -25-70 °C, -25-70 °C

Operating Altitude: < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
