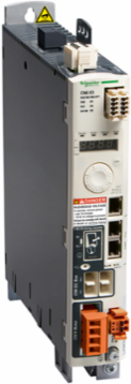

Lexium 32 Motion Servo Drive, 18A, 115-230V, IP20, 1.6kW
Schneider Electric

Schneider Electric LXM32AD18M2 Lexium 32 Motion Servo Drive, 18A, 115-230V, IP20, 1.6kW

  • MPN: LXM32AD18M2
  • PPN: SCH-LXM32AD18M2
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2314.89

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 1 capture, 2 safety, 4 logic discrete inputs and 2 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V (single phase), a continuous output current of 6A at 8kHz and a continuous power of 1600W at 230V. It is furnished with terminal for electrical connection and three RJ45 connectors for CANmotion, CANopen, and Modbus, integrated communication interfaces. It is an IP20 rated product. Its dimensions are 48mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 1.8kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Germany, France, Indonesia
    Depth237 mm

    Communications & Management Attributes

    Communication Interface
    CANmotion, Integrated, CANopen, Integrated
    Communication Service1 receive SDO CANmotion, 1 transmit SDO CANmotion, 2 PDOs conforming to DSP 402 CANmotion2 SDOs receive CANopen, 2 SDOs send CANopen, 4 configurable mapping PDOs CANopenCANopen device profile drives and motion control CANopen, CANmotion, emergency CANopen, CANmotion, event-triggered, time-triggered, remotely requested,sync (cyclic), sync(acyclic) CANopen, node guarding, heartbeat CANopen, position control mode CANmotion, position control, speed profile, torque profile and homing mode CANopen, sync CANmotion

    Complementary Attributes

    Line Rated Current
    6.0 A
    Maximum Current Irms
    10.0 A
    Maximum Operational Altitude
    2000.0 m
    Maximum Ambient Air Temperature For Operation50.0 °C
    Maximum Leakage Current30 mA
    Minimum Ambient Air Temperature For Operation0.0 °C

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Connector Type
    RJ45 (labelled CN4 or CN5) CANmotion, RJ45 (labelled CN4 or CN5) CANopen
    Electrical Connection
    terminal 3 mm², 12 AWG CN8), terminal 5 mm², 10 AWG CN1), terminal 5 mm², 10 AWG CN10)
    Line Current
    9.9 A 74 % 115 V, with external line choke 2 mH, 10.6 A 93 % 230 V, with external line choke 2 mH, 8.5 A 147 % 115 V, without line choke8.4 A 148 % 230 V, without line choke
    Response Time
    <= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B
    Supply Voltage
    100-120 V single phase, 200-240 V single phase
    Supply Voltage Limits
    85-132 V, 170-264 V
    Certificate Agency
    UL, TÜV, CSA
    Carbon Footprint Of The Distribution Phase [A4]
    0.2901704197, 0.3 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.0134968356
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    1 459 kg CO2 eq., 1459.2367491166
    Local Publishable Date
    2025-12-12
    Stocking Flag
    N
    Device Type
    Motion - drive & motor
    Traceability
    Yes
    Average Life Duration
    15 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI110605EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1907
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Advanced
    Market Segmentation
    Industrial
    Braking Current
    50 mA
    Continuous Power
    800 W 115 V1600 W 230 V
    Derating Altitude Scale
    90.0 m
    Device Short Name
    LXM32A
    Electrical Isolation
    between power and control
    Emc Filter Compatibility
    type 021
    Field Weakening
    false
    Marking
    CE
    Method Of Access
    slave
    Network Frequency
    47.5...63 Hz
    Nominal Power
    0.5 kW 115 V 8 kHz1 kW 230 V 8 kHz
    Operating Position
    vertical +/- 10 degree
    Phase
    single phase
    Product Or Component Type
    motion servo drive
    Range Of Product
    Lexium 32
    Safety Function
    STO (safe torque off), Integrated
    Sampling Duration
    DI 0.25 ms discrete
    Signalling Function
    display of faults 7 segments
    Supply Frequency
    50/60 Hz - 5...5 %
    Switching Frequency
    8 kHz
    Transmission Rate
    1 Mbps 4-4 m CANopen, CANmotion125 kbps 500-500 m CANopen, CANmotion250 kbps 250-250 m CANopen, CANmotion50 kbps 1000-1000 m CANopen, CANmotion500 kbps 100-100 m CANopen, CANmotion
    Type Of Cooling
    integrated fan
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Indonesia
    Energy Model - Use [B6]
    Electricity mix; AC; < 1kV; EU-27
    Height Nominal
    270 mm
    Maximum [In] Rated Current
    6.0 A
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    3706
    Customs Code
    8504404000
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Contact Bounce Time<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B2 µs CAP0.25 µs...1.5 ms DI
    Electromagnetic Compatibilityconducted EMC, class A group 1 EN 55011, conducted EMC, class A group 2 EN 55011conducted EMC, environment 2 category C3 EN/IEC 61800-3, conducted EMC, category C2 EN/IEC 61800-3, conducted EMC, environments 1 and 2 EN/IEC 61800-3, electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-31.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5, electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4, radiated EMC, class A group 2 EN 55011, radiated EMC, category C3 EN/IEC 61800-3
    Nominal Voltage115 V single phase, 230 V single phase
    Status Led1 LED (Red) servo drive voltage, 1 LED error, 1 LED RUN
    Supply Voltage Descriptionsingle phase 230 V, single phase 115 V
    Tightening TorqueCN8 0.5-0.5 N.mCN1 0.7-0.7 N.m, CN10 0.7-0.7 N.m
    [Us] Rated Supply Voltage115 V100...120 V - 15...10 %, 200...240 V - 15...10 %
    Carbon Footprint Of The End-of-life Phase [C1 To C4]1.0499654179, 1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]21 kg CO2 eq., 20.6922582853
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Compatibility CodeLXM32A
    Control Signal Typeservo motor encoder feedback
    Derating Altitude Start1000.0 m
    Drive Voltage Drop Coefficient0.9
    Emc Filterintegrated
    Environmental Characteristicclasses 3C1 conforming to IEC 60721-3-3
    Format Of The Drivebook
    Maximum Operational Altitude2000.0 m
    Minimum Ambient Air Temperature For Operation0.0 °C
    Network Number Of Phases1
    Number Of Addresses1-127 CANopen, CANmotion
    Overvoltage CategoryIII
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection Typeagainst reverse polarity inputs signalagainst short-circuits outputs signal
    ReturnabilityYes
    Safety LevelSIL 3 EN/IEC 61508PL = e ISO 13849-1
    Shock Resistance15 gn 11 ms EN/IEC 60028-2-27
    Software VersionEIME v5.8.1
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint1 481 kg CO2 eq.
    Type Of Cablesingle-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
    Vibration Resistance1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
    Pep CodeENVPEP110705EN
    Pep Verification Date2020-08-01
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh2978.4
    Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
    Width Nominal48 mm
    Number Of Inputs/Outputs4 DI + 1 CI + 2 DO
    Package Weight(Lbs)2.272 kg
    Warranty (In Months)18
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]3706

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -25-70 °C, -25-70 °C
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    1481.282640075
    Circularity Profile
    ENVEOLI110605EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Without Single Use Plastic
    Yes
    Relative Humidity
    Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
    Pep Verification Date
    2020-08-01
    Type Of Verification For The Pep
    Independent internal review
    Ip Degree Of ProtectionIP20 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 61800-5-1
    Product Compatibilityservo motor BSH 70 mm, 2servo motor BSH 70 mm, 3servo motor BSH 100 mm, 1, servo motor BMH 70 mm, 1, servo motor BMH 70 mm, 2, servo motor BMH 100 mm, 1, servo motor BSH 70 mm, 1, servo motor BMH 70 mm, 3, servo motor BSH 55 mm, 3
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-50 °C UL
    Environmental DisclosureENVPEP110705EN
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP110705EN
    Pcr VersionPCR-ed3-EN-2015 04 02

    General Attributes

    Phase
    single phase
    Range Of Product
    Lexium 32
    Product Or Component Typemotion servo drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Discrete Output Voltage
    <= 30 V DC, <= 30 V DC<= 30 V DC, <= 30 V DC
    Output Voltage
    <= power supply voltage, <= power supply voltage
    Discrete Output Logic
    positive or negative DO)EN/IEC 61131-2
    Discrete Output Type
    logic DO)24 V DC
    Output Current 3s Peak10.0 A, 10 A 115 V 5 s18 A 230 V 5 s
    Continuous Output Current6 A 8 kHz
    Discrete Output Number2
    Response Time On Output250 µs DO)discrete

    Surge Protection And Filtering Attributes

    Emc Filter
    integrated
    Emc Filter Compatibilitytype 021

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Discrete Input Logic
    positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1, positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1, positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
    Discrete Input Number
    1 capture2 safety4 logic
    Discrete Input Voltage24 V DC capture, 24 V DC logic, 24 V DC safety
    Discrete Input Typecapture CAPlogic DIsafety compliment of STO_A, compliment of STO_B
