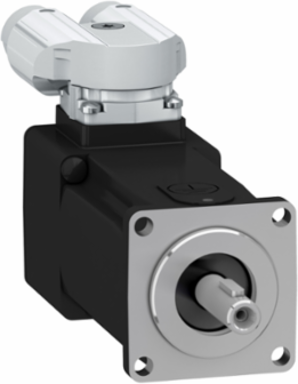

Schneider Electric BSH0402P37A2A Lexium 32 Servo Motor 0.38 N.m 9000 rpm 40mm Keyed Shaft IP65
Schneider Electric BSH0402P37A2A Lexium 32 Servo Motor 0.38 N.m 9000 rpm 40mm Keyed Shaft IP65
- MPN: BSH0402P37A2A
- PPN: SCH-BSH0402P37A2A
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1449.66/ EA
Description
Designed for precision and reliability, the servo motor from Schneider Electric is an exemplary component in motion control applications. With a nominal torque of 0.38 N.m and a maximum speed of 9000 rpm, this motor is engineered to deliver exceptional performance while maintaining a compact size of just 93.4 mm in length. Its robust construction, rated at IP65 for dust and water resistance, ensures durability in demanding environments, making it an ideal choice for automation and control systems. The motor features a keyed shaft and offers a high degree of accuracy with an angular error of only 0.08°, allowing for precise positioning in various industrial applications.
Specifications
Physical Attributes
- Key Width
- 12 mm
- Shaft Length
- 25 mm
Motor Flange Size40 mm
Complementary Attributes
- Maximum Current Irms
- 6 A LXM32.U60N4 480 V, 6 A LXM32.U60N4 400 V, 6 A LXM32.U45M2 230 V, 7.2 A
- Line Rated Current
- 1.27 A
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Operational Altitude
- 3000.0 m
- Minimum Operational Altitude
- 0.0 m
- Us Rated Supply Voltage
- 400 V
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed10000 rpm
Maximum Permanent Current1.5 A
Maximum In Rated Current1.27 A
Important Information Attributes
- Coefficient 1 1
- -8.085E-06 N.m/rpm, -8.085E-06 N.m/rpm
- Inertia
- 0.0 kg.cm² of brake, 0.042 kg.cm² of motor
- Nominal Speed
- 9000 rpm, 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase, 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase
- Peak Stall Torque
- 1.37 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 1.37 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 1.37 N.m LXM32.U45M2 1.5 A, 230 V, single phase
- Carbon Footprint Of The Distribution Phase A4
- 0.0808937838, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0055622757, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 312 kg CO2 eq., 312.2368383061
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1905
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Centring Collar Diameter
- 30 mm
- Coefficient 1 2
- 0 N.m/rpm²
- Coefficient 1 4
- 0 N.m/rpm4
- Coefficient 1 6
- 0 N.m/rpm6
- Coefficient 2 1
- 2.11111111111111E-06 N.m/rpm
- Continuous Stall Current
- 1.5 A
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Electrical Connection
- rotatable right-angled connectors
- Holding Brake
- without
- Minimum Operational Altitude
- 0.0 m
- Motor Voltage Drop Coefficient
- 1
- Mounting Support
- international standard flange
- Number Of Motor Poles
- 5.0
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Product Or Component Type
- servo motor
- Rotor Inertia
- 0.0419 kg.cm²
- Shaft Diameter
- 8 mm
- Sizing Reference
- BSH0402P
- Speed Feedback Resolution
- 32768 points/turn x 4096 turns
- Stator Inductance
- 6.4 mH 20 °C
- Sustainable Packaging
- No
- Temperature Copper Hot
- 120 °C
- Temperature Magnet Rt
- 20 °C
- Total Lifecycle Carbon Footprint
- 315 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Warranty In Months
- 18
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Reference Lifetime In Y2
- 10
- Energy Model Manufacturing A1 A3 2
- Energy model used: Germany
- Energy Model Use B6 2
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Offer Owner Code
- 190786
- Length Total
- 93.4 mm
Continuous Stall Torque0.38 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.38 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.38 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Nominal Torque0.31 N.m full speed, 0.35 N.m half speed, 0.292 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.307 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.364 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Saturation Coefficient-0.0070553975786674, -0.0070553975786674
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0590828108
Carbon Footprint Of The Manufacturing Phase A1 To A33 kg CO2 eq., 2.7449351351
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes46 mm
Coefficient 1 30 N.m/rpm3
Coefficient 1 50 N.m/rpm5
Coefficient 2 00.030927813371642 N.m
Continuous Power398 W
Derating Altitude Scale80.0 m
Derating Temperature Scale20.0 °C
Device Short NameBSH
Feedback Typemultiturn SinCos Hiperface
Maximum Operational Altitude3000.0 m
Motor Figures400.0 V
Mounting Holes Diameter4.5 mm
Network Number Of Phases3
Number Of Motor Stacks2
Peak Nominal Torque1.5 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Second Shaftwithout second shaft end
Shaft Endkeyed
Software VersionEIME v5.8.1
Stator Electrical Time Constant1.1 ms 20 °C
Stator Resistance11.6 Ohm 20 °C
Switching Frequency8 kHz
Temperature Magnet Hot100 °C
Torque Constant0.26 N.m/A 120 °C
Type Of Coolingnatural convection
Maximum In Rated Current1.27 A
Pep CodeENVPEP111049EN
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionCoordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh637.29
Energy Model Installation A5 2Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model End Of Life C1 C4 2Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Pn1
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 315.1273123115
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-08-01
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP111049EN
Ip Degree Of ProtectionIP65 standard
Packaging Without Single Use PlasticNo
Pep CodeENVPEP111049EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 275 W LXM32.U60N4 1.5 A, 480 V, three phase, 289 W LXM32.U60N4 1.5 A, 400 V, three phase, 152 W LXM32.U45M2 1.5 A, 230 V, single phase
Output Current 3s Peak7.2 A
Specifications
- Country of Origin
- Brazil, Germany, France
