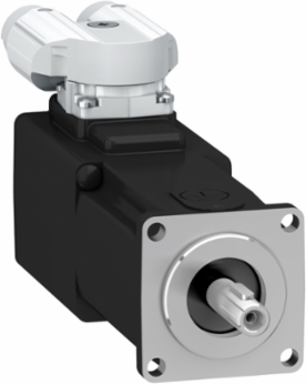

Schneider Electric BSH0402P37F2A Lexium 32 Servo Motor 0.38N.m Torque, 9000rpm, 40mm Flange, IP65
- MPN: BSH0402P37F2A
- PPN: SCH-BSH0402P37F2A
CAD
$2406.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for high-performance applications, this servo motor from Schneider Electric offers exceptional precision and reliability. With a maximum speed of 9000 rpm and a peak stall torque of 1.37 N.m, it is engineered to meet the demanding requirements of automation and motion control systems. The motor features a compact 40mm flange size and is equipped with a holding brake for enhanced safety and control. Additionally, its IP65 rating ensures robust protection against dust and moisture, making it suitable for various industrial environments. With advanced feedback capabilities through a multiturn SinCos Hiperface system, this servo motor is ideal for applications that require accurate positioning and speed regulation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Physical Attributes
- Key Width
- 12 mm
- Shaft Length
- 25 mm
Motor Flange Size40 mm
Complementary Attributes
- Maximum Current Irms
- 6 A LXM32.U60N4 480 V, 6 A LXM32.U60N4 400 V6 A LXM32.U45M2 230 V, 7.2 A
- Line Rated Current
- 1.27 A
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Operational Altitude
- 3000.0 m
- Minimum Operational Altitude
- 0.0 m
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed10000 rpm
Maximum Permanent Current1.5 A
Important Information Attributes
- Coefficient 1 1
- -8.085E-06 N.m/rpm, -8.085E-06 N.m/rpm
- Minimum Ambient Air Temperature For Operation
- -20.0 °C, -20.0 °C
- Nominal Torque
- 0.31 N.m full speed0.35 N.m half speed, 0.292 N.m LXM32.U60N4 1.5 A, 480 V, three phase0.307 N.m LXM32.U60N4 1.5 A, 400 V, three phase0.364 N.m LXM32.U45M2 1.5 A, 230 V, single phase
- Saturation Coefficient
- -0.0070553975786674, -0.0070553975786674
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 46 mm
- Coefficient 1 3
- 0 N.m/rpm3
- Coefficient 1 5
- 0 N.m/rpm5
- Coefficient 2 0
- 0.030927813371642 N.m
- Continuous Power
- 398 W
- Derating Altitude Scale
- 80.0 m
- Derating Temperature Scale
- 20.0 °C
- Device Short Name
- BSH
- Feedback Type
- multiturn SinCos Hiperface
- Holding Torque
- 0.4 N.m holding brake
- Maximum Operational Altitude
- 3000.0 m
- Motor Figures
- 400.0 V
- Mounting Holes Diameter
- 4.5 mm
- Network Number Of Phases
- 3
- Number Of Motor Stacks
- 2
- Peak Nominal Torque
- 1.5 N.m
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Second Shaft
- without second shaft end
- Shaft End
- keyed
- Speed Feedback Resolution
- 32768 points/turn x 4096 turns
- Stator Inductance
- 6.4 mH 20 °C
- Sustainable Packaging
- No
- Temperature Copper Hot
- 120 °C
- Temperature Magnet Rt
- 20 °C
- Type Of Cooling
- natural convection
- Length Total
- 119.4 mm
- Accuracy Error [Angular]
- 0.08 °
- Maximum [In] Rated Current
- 1.27 A
- Package Weight(Lbs)
- 627.0 g
- Warranty (In Months)
- 18
Continuous Stall Torque0.38 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.38 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.38 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Nominal Speed9000 rpm, 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase
Peak Stall Torque1.37 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 1.37 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 1.37 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1905
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Centring Collar Diameter30 mm
Coefficient 1 20 N.m/rpm²
Coefficient 1 40 N.m/rpm4
Coefficient 1 60 N.m/rpm6
Coefficient 2 12.11111111111111E-06 N.m/rpm
Continuous Stall Current1.5 A
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionrotatable right-angled connectors
Holding Brakewith
Inertia0.017 kg.cm² of brake0.042 kg.cm² of motor
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportinternational standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia0.0588 kg.cm²
Shaft Diameter8 mm
Sizing ReferenceBSH0402P
Stator Electrical Time Constant1.1 ms 20 °C
Stator Resistance11.6 Ohm 20 °C
Switching Frequency8 kHz
Temperature Magnet Hot100 °C
Torque Constant0.26 N.m/A 120 °C
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage400 V
Brake Pull-in Power5.8 W
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501514040
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ip Degree Of ProtectionIP65 standard
Packaging Without Single Use PlasticNo
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 275 W LXM32.U60N4 1.5 A, 480 V, three phase289 W LXM32.U60N4 1.5 A, 400 V, three phase152 W LXM32.U45M2 1.5 A, 230 V, single phase
Output Current 3s Peak7.2 A
