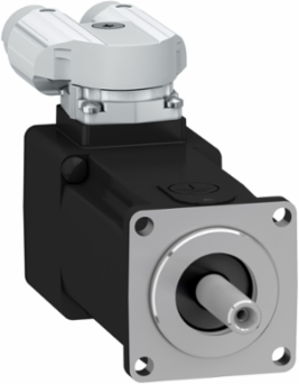

Schneider Electric BSH0402P06A2A Lexium 32 Servo Motor 0.38 N.m Torque 9000 rpm 40mm Flange
- MPN: BSH0402P06A2A
- PPN: SCH-BSH0402P06A2A
CAD
$1169.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Experience the precision and efficiency of the Lexium 32 servo motor, a remarkable solution designed for advanced motion control applications. With a nominal torque of 0.38 N.m and a maximum speed of 9000 rpm, this motor is engineered to deliver exceptional performance, making it ideal for various automation and control tasks. Featuring a compact design with a 40mm flange size and an untapped shaft, it offers versatility in installation while ensuring robust operation with a continuous stall current of 1.5 A.
The motor is equipped with advanced feedback technology, including a single turn SinCos Hiperface system that provides high-resolution speed feedback for enhanced control accuracy. With an IP50 rating, it is well-suited for environments where dust and solid objects are present, ensuring reliability in demanding conditions. Additionally, its natural convection cooling system allows for efficient thermal management, making it a dependable choice for continuous operation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France, United States |
|---|
Physical Attributes
| Motor Flange Size | 40 mm |
|---|
| Shaft Length | 25 mm |
|---|
Complementary Attributes
| Maximum Current Irms | 6 A LXM32.U60N4 480 V, 6 A LXM32.U60N4 400 V6 A LXM32.U45M2 230 V, 7.2 A |
|---|---|
| Line Rated Current | 1.27 A |
| Maximum Axial Force Fa | 0.2 x Fr |
| Maximum Operational Altitude | 3000.0 m |
| Minimum Operational Altitude | 0.0 m |
| Minimum Ambient Air Temperature For Operation | -20.0 °C, -20.0 °C |
|---|---|
| Maximum Ambient Air Temperature For Operation | 60.0 °C |
| Maximum Mechanical Speed | 10000 rpm |
| Maximum Permanent Current | 1.5 A |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Coefficient 1 1 | -8.085E-06 N.m/rpm, -8.085E-06 N.m/rpm |
| Minimum Ambient Air Temperature For Operation | -20.0 °C, -20.0 °C |
| Nominal Torque | 0.31 N.m full speed0.35 N.m half speed, 0.292 N.m LXM32.U60N4 1.5 A, 480 V, three phase0.307 N.m LXM32.U60N4 1.5 A, 400 V, three phase0.364 N.m LXM32.U45M2 1.5 A, 230 V, single phase |
| Saturation Coefficient | -0.0070553975786674, -0.0070553975786674 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.0590828108 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 3 kg CO2 eq., 2.7449351351 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Circle Diameter Of The Mounting Holes | 46 mm |
| Coefficient 1 3 | 0 N.m/rpm3 |
| Coefficient 1 5 | 0 N.m/rpm5 |
| Coefficient 2 0 | 0.030927813371642 N.m |
| Continuous Power | 398 W |
| Derating Altitude Scale | 80.0 m |
| Derating Temperature Scale | 20.0 °C |
| Device Short Name | BSH |
| Feedback Type | single turn SinCos Hiperface |
| Inertia | 0.0 kg.cm² of brake0.042 kg.cm² of motor |
| Minimum Operational Altitude | 0.0 m |
| Motor Voltage Drop Coefficient | 1 |
| Mounting Support | international standard flange |
| Number Of Motor Poles | 5.0 |
| Number Of Mounting Holes | 4 |
| Phase | three phase |
| Product Or Component Type | servo motor |
| Rotor Inertia | 0.0419 kg.cm² |
| Shaft Diameter | 8 mm |
| Sizing Reference | BSH0402P |
| Speed Feedback Resolution | 32768 points/turn |
| Stator Inductance | 6.4 mH 20 °C |
| Sustainable Packaging | No |
| Temperature Copper Hot | 120 °C |
| Temperature Magnet Rt | 20 °C |
| Total Lifecycle Carbon Footprint | 315 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Germany |
| Energy Model - Use [B6] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Length Total | 93.4 mm |
| Accuracy Error [Angular] | 0.08 ° |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8501514040 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Continuous Stall Torque | 0.38 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.38 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.38 N.m LXM32.U45M2 1.5 A, 230 V, single phase |
| Nominal Speed | 9000 rpm, 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase |
| Peak Stall Torque | 1.37 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 1.37 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 1.37 N.m LXM32.U45M2 1.5 A, 230 V, single phase |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0808937838, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0055622757, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 312 kg CO2 eq., 312.2368383061 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1905 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Centring Collar Diameter | 30 mm |
| Coefficient 1 2 | 0 N.m/rpm² |
| Coefficient 1 4 | 0 N.m/rpm4 |
| Coefficient 1 6 | 0 N.m/rpm6 |
| Coefficient 2 1 | 2.11111111111111E-06 N.m/rpm |
| Continuous Stall Current | 1.5 A |
| Derating Altitude Start | 1000.0 m |
| Derating Temperature Start | 40.0 °C |
| Electrical Connection | rotatable right-angled connectors |
| Holding Brake | without |
| Maximum Operational Altitude | 3000.0 m |
| Motor Figures | 400.0 V |
| Mounting Holes Diameter | 4.5 mm |
| Network Number Of Phases | 3 |
| Number Of Motor Stacks | 2 |
| Peak Nominal Torque | 1.5 N.m |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Second Shaft | without second shaft end |
| Shaft End | smooth shaft |
| Software Version | EIME v5.8.1 |
| Stator Electrical Time Constant | 1.1 ms 20 °C |
| Stator Resistance | 11.6 Ohm 20 °C |
| Switching Frequency | 8 kHz |
| Temperature Magnet Hot | 100 °C |
| Torque Constant | 0.26 N.m/A 120 °C |
| Type Of Cooling | natural convection |
| Pep Code | ENVPEP111049EN |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 637.29 |
| Energy Model - Installation [A5] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| [Us] Rated Supply Voltage | 400 V |
| Maximum [In] Rated Current | 1.27 A |
| Package Weight(Lbs) | 627.0 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 315.1273123115 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111049EN |
| Ip Degree Of Protection | IP50 standard |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP111049EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Phase | three phase |
|---|
| Product Or Component Type | servo motor |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|
| ETIM 9 | EC001851 |
|---|
Output Attributes
| Nominal Output Power | 275 W LXM32.U60N4 1.5 A, 480 V, three phase289 W LXM32.U60N4 1.5 A, 400 V, three phase152 W LXM32.U45M2 1.5 A, 230 V, single phase |
|---|
| Output Current 3s Peak | 7.2 A |
|---|
