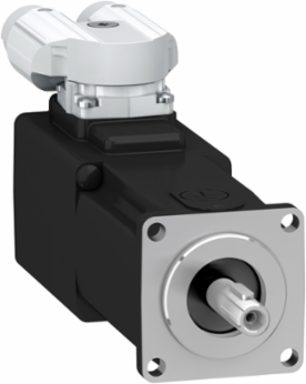

Schneider Electric BSH0402P16F2A Lexium 32 Servo Motor 0.38 N.m 9000 rpm 40mm Keyed Shaft with Brake IP50
- MPN: BSH0402P16F2A
- PPN: SCH-BSH0402P16F2A
CAD
$2181.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Experience precision and reliability with the Lexium 32 servo motor from Schneider Electric, designed to meet the demanding needs of automation and motion control applications. With a robust torque output of 0.38 N.m and a remarkable maximum speed of 9000 rpm, this compact motor is engineered for high performance in a variety of settings. Its IP50 protection rating ensures durability, while the integrated brake enhances safety and control during operation. This model features a keyed shaft and is compatible with a range of systems, making it an excellent choice for engineers and developers seeking to optimize their projects with cutting-edge technology.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Physical Attributes
- Key Width
- 12 mm
- Shaft Length
- 25 mm
Motor Flange Size40 mm
Complementary Attributes
- Maximum Current Irms
- 6 A LXM32.U60N4 480 V, 6 A LXM32.U60N4 400 V6 A LXM32.U45M2 230 V, 7.2 A
- Line Rated Current
- 1.27 A
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Operational Altitude
- 3000.0 m
- Minimum Operational Altitude
- 0.0 m
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed10000 rpm
Maximum Permanent Current1.5 A
Important Information Attributes
- Coefficient 1 1
- -8.085E-06 N.m/rpm, -8.085E-06 N.m/rpm
- Minimum Ambient Air Temperature For Operation
- -20.0 °C, -20.0 °C
- Nominal Torque
- 0.31 N.m full speed0.35 N.m half speed, 0.292 N.m LXM32.U60N4 1.5 A, 480 V, three phase0.307 N.m LXM32.U60N4 1.5 A, 400 V, three phase0.364 N.m LXM32.U45M2 1.5 A, 230 V, single phase
- Saturation Coefficient
- -0.0070553975786674, -0.0070553975786674
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 46 mm
- Coefficient 1 3
- 0 N.m/rpm3
- Coefficient 1 5
- 0 N.m/rpm5
- Coefficient 2 0
- 0.030927813371642 N.m
- Continuous Power
- 398 W
- Derating Altitude Scale
- 80.0 m
- Derating Temperature Scale
- 20.0 °C
- Device Short Name
- BSH
- Feedback Type
- single turn SinCos Hiperface
- Holding Torque
- 0.4 N.m holding brake
- Maximum Operational Altitude
- 3000.0 m
- Motor Figures
- 400.0 V
- Mounting Holes Diameter
- 4.5 mm
- Network Number Of Phases
- 3
- Number Of Motor Stacks
- 2
- Peak Nominal Torque
- 1.5 N.m
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Second Shaft
- without second shaft end
- Shaft End
- keyed
- Speed Feedback Resolution
- 32768 points/turn
- Stator Inductance
- 6.4 mH 20 °C
- Sustainable Packaging
- No
- Temperature Copper Hot
- 120 °C
- Temperature Magnet Rt
- 20 °C
- Type Of Cooling
- natural convection
- Length Total
- 119.4 mm
- Accuracy Error [Angular]
- 0.08 °
- Maximum [In] Rated Current
- 1.27 A
- Package Weight(Lbs)
- 627.0 g
- Warranty (In Months)
- 18
Continuous Stall Torque0.38 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.38 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.38 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Nominal Speed9000 rpm, 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase
Peak Stall Torque1.37 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 1.37 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 1.37 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1905
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Centring Collar Diameter30 mm
Coefficient 1 20 N.m/rpm²
Coefficient 1 40 N.m/rpm4
Coefficient 1 60 N.m/rpm6
Coefficient 2 12.11111111111111E-06 N.m/rpm
Continuous Stall Current1.5 A
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionrotatable right-angled connectors
Holding Brakewith
Inertia0.017 kg.cm² of brake0.042 kg.cm² of motor
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportinternational standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia0.0588 kg.cm²
Shaft Diameter8 mm
Sizing ReferenceBSH0402P
Stator Electrical Time Constant1.1 ms 20 °C
Stator Resistance11.6 Ohm 20 °C
Switching Frequency8 kHz
Temperature Magnet Hot100 °C
Torque Constant0.26 N.m/A 120 °C
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage400 V
Brake Pull-in Power5.8 W
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501516040
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ip Degree Of ProtectionIP50 standard
Packaging Without Single Use PlasticNo
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 275 W LXM32.U60N4 1.5 A, 480 V, three phase289 W LXM32.U60N4 1.5 A, 400 V, three phase152 W LXM32.U45M2 1.5 A, 230 V, single phase
Output Current 3s Peak7.2 A
