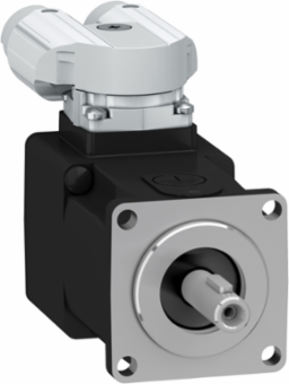

Schneider Electric BSH0401P17A2A Lexium 32 Servo Motor 0.21 N.m 9000 rpm 40mm Keyed Shaft IP50
Schneider Electric BSH0401P17A2A Lexium 32 Servo Motor 0.21 N.m 9000 rpm 40mm Keyed Shaft IP50
- MPN: BSH0401P17A2A
- PPN: SCH-BSH0401P17A2A
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1393.51/ EA
Description
Experience precision and efficiency with the servo motor from Schneider Electric, designed specifically for high-performance applications. This compact model features a nominal torque of 0.21 N.m and operates at a remarkable speed of 9000 rpm, making it an ideal choice for motion control tasks. With its robust construction, including a keyed shaft and IP50 protection, it ensures reliability in various environments while maintaining a lightweight design at just 0.4 kg. Additionally, the advanced feedback system with multiturn SinCos technology allows for precise positioning, making it a valuable component for any automation and control system.
Specifications
Physical Attributes
- Key Width
- 12 mm
- Shaft Length
- 25 mm
Motor Flange Size40 mm
Complementary Attributes
- Maximum Current Irms
- 4.7 A LXM32.U60N4 480 V, 4.7 A LXM32.U60N4 400 V, 4.7 A LXM32.U45M2 230 V, 4.5 A
- Line Rated Current
- 1.02 A
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Operational Altitude
- 3000.0 m
- Minimum Operational Altitude
- 0.0 m
- Us Rated Supply Voltage
- 400 V
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed10000 rpm
Maximum Permanent Current1.12 A
Maximum In Rated Current1.02 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -3.6667E-06 N.m/rpm, -3.6667E-06 N.m/rpm
- Inertia
- 0.0 kg.cm² of brake, 0.023 kg.cm² of motor
- Nominal Speed
- 9000 rpm, 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase, 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase
- Peak Stall Torque
- 0.8 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.8 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.8 N.m LXM32.U45M2 1.5 A, 230 V, single phase
- Carbon Footprint Of The Distribution Phase A4
- 0.0808937838, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0055622757, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 195 kg CO2 eq., 195.2821462945
- Local Publishable Date
- 2026-01-12
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Legacy Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 46 mm
- Coefficient 1 3
- 0 N.m/rpm3
- Coefficient 1 5
- 0 N.m/rpm5
- Coefficient 2 0
- 0.0188241649361797 N.m
- Continuous Power
- 220 W
- Derating Altitude Scale
- 80.0 m
- Derating Temperature Scale
- 20.0 °C
- Device Short Name
- BSH
- Feedback Type
- multiturn SinCos Hiperface
- Maximum Operational Altitude
- 3000.0 m
- Motor Figures
- 400.0 V
- Mounting Holes Diameter
- 4.5 mm
- Network Number Of Phases
- 3
- Number Of Motor Stacks
- 1
- Peak Nominal Torque
- 0.72 N.m
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Second Shaft
- without second shaft end
- Shaft End
- keyed
- Software Version
- EIME v5.8.1
- Stator Electrical Time Constant
- 0.85 ms 20 °C
- Stator Resistance
- 17.2 Ohm 20 °C
- Switching Frequency
- 8 kHz
- Temperature Magnet Hot
- 100 °C
- Torque Constant
- 0.19 N.m/A 120 °C
- Type Of Cooling
- natural convection
- Maximum In Rated Current
- 1.02 A
- Pep Code
- ENVPEP111049EN
- Pep Verification Date
- 2020-08-01
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
- Functional Unit Unit
- unit
- Reference Lifetime In Y2
- 10
- Energy Model Manufacturing A1 A3 2
- Energy model used: Germany
- Energy Model Use B6 2
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Offer Owner Code
- 190786
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Continuous Stall Torque0.21 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.21 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.21 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Nominal Torque0.18 N.m full speed, 0.2 N.m half speed, 0.176 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.176 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.184 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Saturation Coefficient-0.0175957658702008, -0.0175957658702008
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0590828108
Carbon Footprint Of The Manufacturing Phase A1 To A33 kg CO2 eq., 2.7449351351
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1905
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter30 mm
Coefficient 1 20 N.m/rpm²
Coefficient 1 40 N.m/rpm4
Coefficient 1 60 N.m/rpm6
Coefficient 2 11.18333333333333E-06 N.m/rpm
Continuous Stall Current1.12 A
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionrotatable right-angled connectors
Holding Brakewithout
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportinternational standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia0.0232 kg.cm²
Shaft Diameter8 mm
Sizing ReferenceBSH0401P
Speed Feedback Resolution32768 points/turn x 4096 turns
Stator Inductance7.3 mH 20 °C
Sustainable PackagingNo
Temperature Copper Hot120 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint198 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty In Months18
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional Unit Quantity1
Product Weight In G2627
Energy Consumption On Product Lifetime In Kwh398.58
Energy Model Installation A5 2Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model End Of Life C1 C4 2Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Length Total73.4 mm
Environment Attributes Main
- Take Back
- Nej
- China Rohs Regulation
- X
- Carbon Footprint
- 198.1726202999
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-08-01
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP111049EN
Ip Degree Of ProtectionIP50 standard
Packaging Without Single Use PlasticNo
Pep CodeENVPEP111049EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 166 W LXM32.U60N4 1.5 A, 480 V, three phase, 166 W LXM32.U60N4 1.5 A, 400 V, three phase, 77 W LXM32.U45M2 1.5 A, 230 V, single phase
Output Current 3s Peak4.5 A
