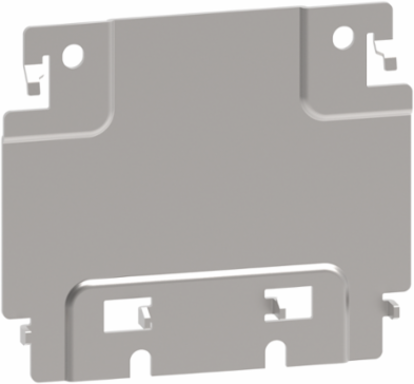

Schneider Electric LA9G3651 TeSys Giga Mounting Base for LR9G500, 95 mm Width, IP20 Protection
- MPN: LA9G3651
- PPN: SCH-LA9G3651
- UNSPSC: 39121432
CAD
$215.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These accessories are mounting base for TeSys LR9G500 align with LC1G265-330. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.
Features
- Designed to meet needs of demanding applications built-in with advanced features and functionalities
- Less number of references, simple to select, choose means less inventory
- Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
- Wide range of power terminal accessories
- Modular design and compact size for easy maintenance, short down times and less installation space consumption
- Unique QR code, quick access to complete product data, technical video, anti-counterfeit checking and instruction sheet
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 145 mm |
|---|
Complementary Attributes
| Ie Rated Operational Current | 330 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1 |
| Local Publishable Date | 2026-07-28 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Range Of Product | TeSys G |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 95 mm |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free plastic parts product |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2105014 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2121 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Device Short Name | LA9G |
| Product Or Component Type | mounting base |
| Range | TeSys |
| Returnability | Yes |
| Thickness | 6 mm |
| Height Nominal | 10 mm |
| Accessory / Separate Part Category | installation accessories |
| Customs Code | 7326190080 |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -60-80 °C, -60-80 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2105014 |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Product Compatibility | LC1G265...330, LC1G300...475, LR9G500 |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | -40-60 °C-40-60 °C |
| Environmental Disclosure | ENVPEP2105014EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Operating Altitude | 9842.52 ft (3000 m) without derating5000 m with derating factor |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2105014EN |
General Attributes
| Product Or Component Type | mounting base |
|---|
| Range Of Product | TeSys G |
|---|
ETIM
| ETIM 8 | EC002270 |
|---|---|
| ETIM 10 | EC002270 |
| ETIM 9 | EC002270 |
|---|
