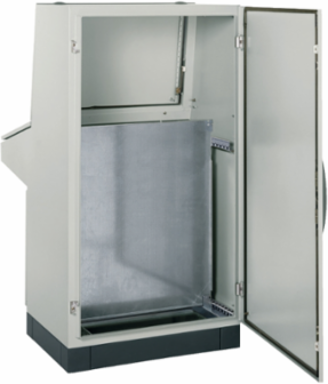

Schneider Electric NSYMP148 PanelSeT Mounting Plate 1400mm x 800mm Galvanized Steel
Schneider Electric NSYMP148 PanelSeT Mounting Plate 1400mm x 800mm Galvanized Steel
- MPN: NSYMP148
- PPN: SCH-NSYMP148
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$297.57/ EA
Description
Spacial SF/SM mounting plate. H is1400 x W is800 mm. Depth is 27 mm. Multi-purpose mounting accessory. Fixing mode by brackets. Permanent permissible load is 500 kg intermediate position, 600 kg on back. Galvanised steel. 1 mounting plate, 2 sliding shoes incl.
Specifications
Complementary Attributes
- Maximum Load
- 300 kg/m²
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 mounting plate, 2 sliding shoes
- Permanent Permissible Load
- 500 kg intermediate position, 600 kg back of the enclosure
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 60 kg CO2 eq., 59.85700707918802
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 113 kg CO2 eq., 112.94845689886935
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Stocking Flag
- Y
- Legacy Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Fixing Mode
- by fixing brackets
- Mounting Plate Description
- plain
- Product Or Component Type
- mounting plate
- Range
- PanelSeT
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 215 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional Unit Unit
- Unit
- Reference Lifetime In Y2
- 20
- Energy Model Installation A5 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Offer Owner Code
- 190789
- Height Useful
- nominal: 1400 mm
- Width Real
- fixing centers: 650 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 1400 mm W: 800 mm, - H: 1400 mm W: 800 mm, - H: 1400 mm W: 800 mm, - H: 1400 mm W: 800 mm, - H: 1400 mm W: 800 mm, - H: 1400 mm W: 800 mm
Carbon Footprint Of The Distribution Phase A441.69177635588153, 42 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.6833909711672522, 0.7 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-09-23
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialgalvanised steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Accessory Separate Part Categorymounting accessory
Pep CodeENVPEP2202003EN
Pep Verification Date2025-09-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Quantity1
Product Weight In G221000
Energy Model Manufacturing A1 A3 2France, FR
Energy Model Use B6 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In 298
Height Nominalfixing centers: 1250 mm
Width Nominalnominal: 800 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 215.18063130510615
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNej
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2202003EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2202003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 55.12 in
- Depth
- 27 mm
Width25.59 in
