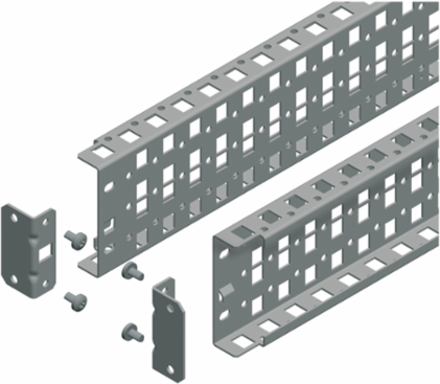

Schneider Electric NSYSUCR9080 Universal Cross Rails, Steel, 800 mm Height, 100 kg Load Capacity, Set of 2
- MPN: NSYSUCR9080
- PPN: SCH-NSYSUCR9080
- UNSPSC: 39121327
CAD
$120.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed for versatility and strength, these universal cross rails are an essential component for the PanelSeT range, specifically compatible with models such as SF, SM, and SFX. With a nominal height of 800 mm and a robust construction from galvanized steel, these rails can support a maximum load of up to 100 kg, ensuring reliability in various applications. The adjustable design allows for a pitch of 25 mm, making it easy to customize your setup to fit specific needs, while the three horizontal rows provide ample mounting options for your equipment. Ideal for use in enclosures and racks, these cross rails are a practical solution for enhancing your automation and control systems.
Features
- Used for the creation of structures inside the enclosure.
- Cross-rails available in three sizes: 40 mm (one row), 65 mm (two rows) and 90 mm (three rows).
- Each row is perforated every 25 mm with a 5.2 mm diameter hole
- A 11x13 mm cutout which enables fixing by means of M6 self-tapping screws, ref
- Equipment are fixed by means of caged nuts or self-tapping screws, Material: Zinc-coated steel
- Thickness: 15/10e mm
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | India |
|---|---|
| Width | 3.54 in |
| Depth | 27 mm |
| Height | 27.83 in |
|---|---|
| Weight | 2182 g |
Complementary Attributes
| Maximum Load | 100 kg |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Enclosure Nominal Dimensions | - H: 800 mm, - H: 800 mm, - H: 800 mm, - H: 800 mm |
| Carbon Footprint Of The Distribution Phase A4 | 0.420031258, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.483823573, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-15 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Adjustment | adjustable with a pitch of 25 mm |
| Device Composition | fixing elements2 cross rails4 supports |
| Fixing Mode | by screws |
| Mounting Support | adaptation profile, on SM enclosures |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | Yes |
| Surface Finish | galvanized |
| Thickness | 1.5 mm |
| Database Version | 2022-01 |
| Height Nominal | nominal: 800 mm |
| Width Nominal | 90 mm |
| Accessory / Separate Part Category | mounting accessory |
| Customs Code | 9403999045 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Location | between cross rails, on structure of enclosure |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 5 kg CO2 eq., 5.129549472 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 9 kg CO2 eq., 9.481048492 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | multi-purpose |
| Energy Efficiency Optimized | False |
| Material | steel |
| Number Of Horizontal Rows | 3 |
| Product Or Component Type | universal cross rail |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 16 kg CO2 eq. |
| Data Source | extrapolated product |
| Height Useful | useful: 707 mm |
| Width Real | 90 mm |
| Nbr. Of Units In Pkg. | 1 |
| Silicone Free | No |
| Functional Unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 98 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | No |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 15.51445279 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | universal cross rail |
|---|
ETIM
| ETIM 8 | EC002620 |
|---|---|
| ETIM 10 | EC002620 |
| ETIM 9 | EC002620 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
