Weidmuller 9535290000 MPC 12/17/07 7035
- MPN: 9535290000
- PPN: WDM-9535290000
CAD
$79.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

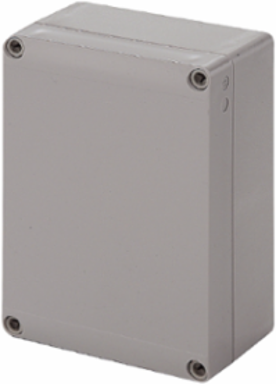

MPC (polycarbonate empty enclosure), Empty enclosure, Height: 125 mm, Width: 175 mm, Depth: 75 mm, Material: Polycarbonate, Light Grey
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
General Information On Accessories
| Material | Polycarbonate |
|---|

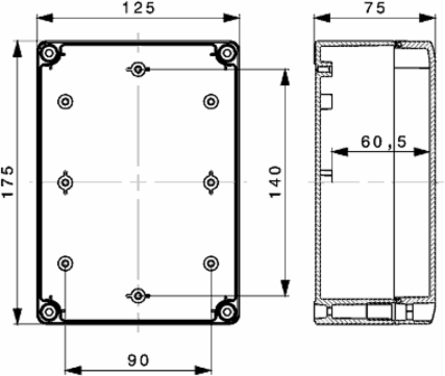

Dimensions And Weights
| Width | 175 mm |
|---|---|
| Height | 125 mm |
| Depth | 75 mm |
| Weight | 381 g |
| Width (inches) | 6.89 inch |
|---|---|
| Height (inches) | 4.921 inch |
| Depth (inches) | 2.953 inch |
| Net weight | 373 g |
Horizontal Assembly
| WDU 10 / ZDU 10 | 1x11 |
|---|---|
| WDU 4 / ZDU 4 | 1x19 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x22 |
|---|---|
| WDU 6 / ZDU 6 | 1x14 |
Classifications
| ETIM 6.0 | EC000261 |
|---|---|
| eClass 9.0 | 27-18-01-01 |
| eClass 10.0 | 27-18-01-01 |
| ETIM 7.0 | EC000261 |
|---|---|
| eClass 9.1 | 27-18-92-90 |
| UNSPSC | 31-26-15-02 |
Vertical Assembly
| WDU 10 / ZDU 10 | 1x11 |
|---|---|
| WDU 4 / ZDU 4 | 1x19 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x22 |
|---|---|
| WDU 6 / ZDU 6 | 1x14 |
Cable Glands, Top/Bottom
| M12 | 4 |
|---|---|
| M20 | 3 |
| M16 | 3 |
|---|
Cable Glands, Right
| M12 | 6 |
|---|---|
| M20 | 4 |
| M16 | 4 |
|---|
General Information
| Areas of use | Building systems and technology, Transportation, Packaging industry, Machine construction |
|---|---|
| Material | Polycarbonate |
| Operating temperature, min. | -50 °C |
| Protection degree | IP66, IP67 |
| Lid attachment | 4 polyamide crosshead screws |
| Torque for lid screws | 0.8 Nm |
|---|---|
| Seal material | Polyurethane |
| Operating temperature, max. | 130 °C |
| Enclosure attachment | Holes 4.5 mm |
| Integral fixing | thanks to self-tapping screws |
