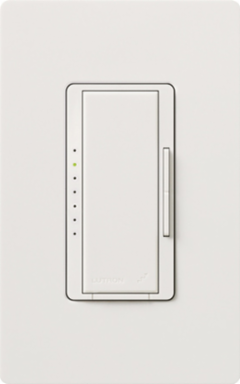

Lutron MRF2-F6AN-DV-WH Maestro Wireless 6A Digital Fade Dimmer, 120-277V, White
- MPN: MRF2-F6AN-DV-WH
- UPC: 027557792202
- PPN: LUT-MRF2-F6AN-DV-WH
- UNSPSC: 39122206
CAD
$247.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Maestro Wireless 6A Digital Fade Dimmer, 120-277V, White
Features
- The Maestro Wireless solution provides dimming/ switching of multiple load types, occupancy/vacancy sensing, daylight harvesting, and high-end trim.
- Lutron patented Clear Connect RF Technology works through walls and floors.
- Incorporates advanced features such as fade ON/fade OFF, high-end trim, and rapid full-ON.
- Controls include Front Accessible Service Switch (FASS) for safe lamp replacement.
- Two-wire dimmers and switches available for retrofit applications.
- Power failure memory: If power is interrupted, the control will return to its previously set level prior to interruption.
- Controls 6 A 3-wire driver or fluorescent ballast loads
- Tap on to preset level;tap off
- Tap twice for full on
- Press, hold, and release for delayed fade-to-off
- Touch rocker to adjust light level
- Provides true dimming from each location with companion dimmers or Pico wireless remotes.
Documentation & Downloads
Specifications
Key Specifications
- Aesthetic Finish
- Glossy
- Decorative Color
- White
- Family Color
- White
- Operating Temperature, Maximum
- 104 F
- Switch Type
- Tapswitch
- Voltage Rating
- 120 to 277
- Connection Type
- Screw Terminal
- Actuator
- Tapswitch
- Connection
- Screw terminals/wire leads
- Finish
- Gloss
- Material
- Plastic/Metal
- Operating Temperature
- 32 to 104 F
ApplicationLighting Control
Environmental Conditions0 to 90% humidity, non-condensing. Indoor use only.
Number of Poles1
Operating Temperature, Minimum32 F
TypeDigital fade wireless dimmer, multi-location/single-pole
Wattage1662 W
Face MaterialMetal;Plastic
ColorWhite
EnclosurePlastic
InsulationPlastic
MountingWallbox
Size4.69 x 2.94;119 x 75 in;mm
