MULTIMETER C 2606
MULTIMETER C 2606
Weidmuller

Weidmuller 9427370000 MULTIMETER C 2606

  • MPN: 9427370000
  • PPN: WDM-9427370000

CAD

$805.64

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

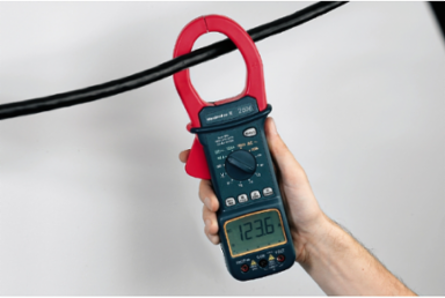

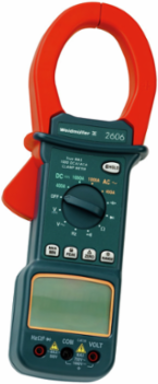

Digital clamp-on measuring device

Documentation & Downloads

Specifications

Approvals

Approvals
EAC
ROHSConform

Dimensions And Weights

Width
277 mm
Height
49 mm
Depth
102 mm
Weight
540 g
Width (inches)10.905 inch
Height (inches)1.929 inch
Depth (inches)4.016 inch
Net weight888.2 g

Measuring And Testing Devices

AC voltage measuring range
0.4 - 1,000 V
DC voltage measuring range
0.4 - 1000 V
Frequency measurement
Yes
Frequency range, min.
0.1 kHz
Measured capacitance value, min.
40 nF
Measuring range category
CAT III
Resistance measuring range, max.
40 MΩ
Resolution of AC voltage
± 0.5%
Selection of measuring range
Manual
Type of current
AC, DC
Working temperature, min.
0 °C
Battery type9V block battery
Displaydigital
Frequency range, max.400 kHz
Measured capacitance value, max.4 µF
Measured current value, max.1,000 A
Opening width of current-measuring clamp-on attachment57 mm
Resistance measuring range, min.0.4 Ω
Resolution of DC voltage± 0.5%
Tested and approved according toVDE 0680, Part 5
Working temperature, max.50 °C

Classifications

ETIM 6.0
EC000380
eClass 9.0
27-20-03-12
eClass 10.0
27-20-03-12
ETIM 7.0EC000380
eClass 9.127-20-03-12
UNSPSC41-11-36-37

Product Information

Product information
Min/max function only applies for the DC range.

Environmental Product Compliance

REACH SVHC
Lead 7439-92-1
