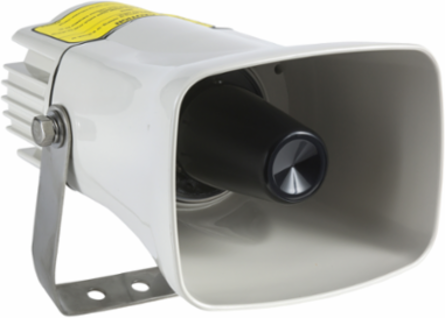

Schneider Electric XVS14GMW Multisound Siren 0-105 dB, 43 Tones, 120V AC, White Colour
- MPN: XVS14GMW
- PPN: SCH-XVS14GMW
CAD
$420.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Offering versatility and reliability, this multisound siren from Schneider Electric is engineered to deliver an impressive sound output ranging from 0 to 105 dB. With the ability to produce 43 distinct tones, it can effectively meet various signaling and alerting needs in industrial and commercial settings. Designed to operate on 120V AC, this siren's sleek white finish allows it to blend seamlessly into its surroundings while providing essential auditory notifications, making it an essential component for any safety or alarm system.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States

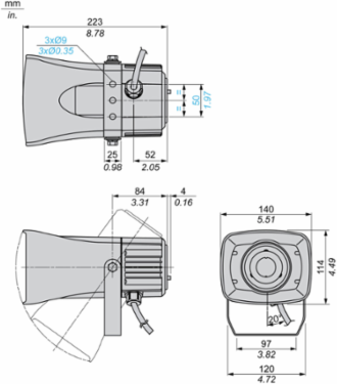

Depth223 mm
Physical Attributes
- Color
- White
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- cable 6.5-8.5 mm, 0.33-0.33 mm² / 22 AWG signalling circuit), cable 6.5-8.5 mm, 0.52-0.52 mm² / 20 AWG power circuit)
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Current Consumption
- 100 mA 120 V
- Fixing Mode
- 3 holes Ø 9 mm
- Mounting Support
- bracket
- Overvoltage Category
- class II conforming to IEC 61140
- Product Or Component Type
- multisound siren
- Range Of Product
- Harmony XVS
- Signalling Type
- 43 tones siren
- Pep Code
- ENVPEP2312027EN
- Width Nominal
- 140 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8531809041
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
MaterialPC (polycarbonate): back coverPC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): front, PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): back
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2312027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeXVS
Device Short NameXVS
MarkingCE
Noise Level0-105 dB continuous or intermittent tone)1 m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Sustainable PackagingYes
Height Nominal114 mm
Certificate AgencyUL
[Us] Rated Supply Voltage120 V AC
Package Weight(Lbs)1.56 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C, -10-50 °C
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2312027EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-35-70 °C, -35-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2312027EN
Ip Degree Of ProtectionIP53 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2312027EN
General Attributes
- Product Or Component Type
- multisound siren
Range Of ProductHarmony XVS
ETIM
- ETIM 8
- EC000195
ETIM 9EC000195
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
