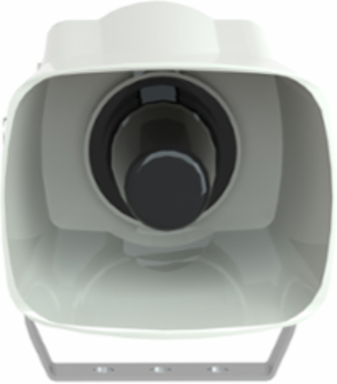

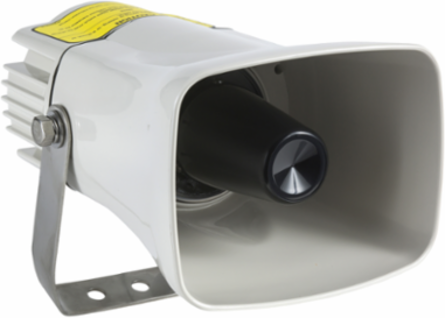

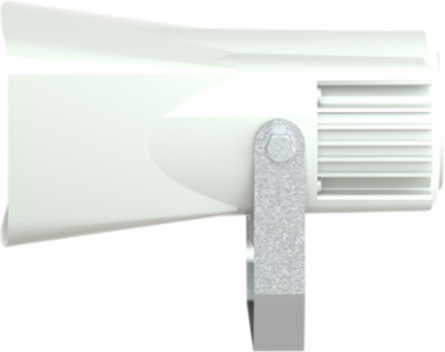

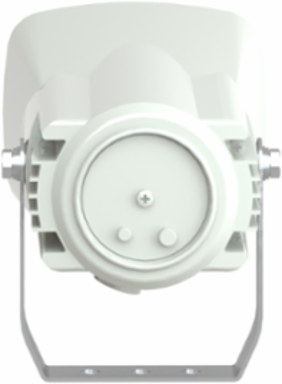

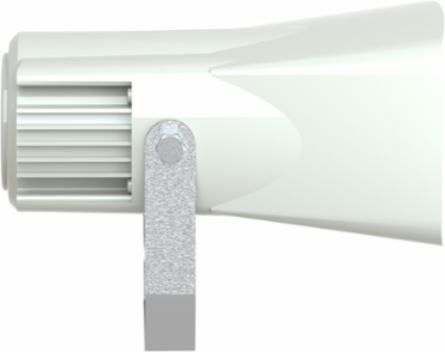

Schneider Electric XVS14MMW Harmony XVS Multisound Siren, 240V AC, 0-105 dB, 43 Tones, IP53

MPN: XVS14MMW
PPN: SCH-XVS14MMW
UNSPSC: 46171604

$420.97

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This white multi-sound siren is part of the range Harmony type XVS multi sound sirens and alarms. It is supplied complete and pre-cabled. Supply voltage is 240V AC and degree of protection is IP 53. It features a sound with continuous or intermittent tone that can be adjusted from 0 to 105dB at 1m and 43 tones. It is designed for long distance indication of the operating status of a machine. It is used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels.

Features

Designed for long-distance indication of the operating status of a machine
Mainly used on conveyor belts, automated industrial trucks and on the doors of electrical control panels
Continuous or intermittent tone that can be adjusted from 0 to 105dB
Wide availability throughout an extensive distribution network

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia
Depth	223 mm

Weight	1200 g

Physical Attributes

Color	White

Complementary Attributes

Uimp Rated Impulse Withstand Voltage	4 kV

Us Rated Supply Voltage	240 V AC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	cable 6.5-8.5 mm, 0.33-0.33 mm² / 22 AWG signalling circuit), cable 6.5-8.5 mm, 0.52-0.52 mm² / 20 AWG power circuit)
Carbon Footprint Of The Distribution Phase A4	0.1919485861, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.5777583548, 0.6 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.1 kg CO2 eq., 0.07922027
Local Publishable Date	2026-01-12
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2312027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	XVS
Device Short Name	XVS
Marking	CE
Noise Level	0-105 dB continuous or intermittent tone)1 m
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Returnability	Yes
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	12 kg CO2 eq.
Data Source	extrapolated product
Width Nominal	140 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Material	PC (polycarbonate): back coverPC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): front, PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): back
Carbon Footprint Of The End Of Life Phase C1 To C4	2 kg CO2 eq., 2.1045758355
Carbon Footprint Of The Manufacturing Phase A1 To A3	9 kg CO2 eq., 9.4063753213
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Current Consumption	50 mA 240 V
Fixing Mode	3 holes Ø 9 mm
Mounting Support	bracket
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	multisound siren
Range Of Product	Harmony XVS
Signalling Type	43 tones siren
Sustainable Packaging	Yes
Database Version	2022-01
Height Nominal	114 mm
Certificate Agency	UL
Customs Code	8531809041
Functional Unit Description	Multi-sound siren is part of the range Harmony type XVS multi sound sirens and alarms. It is supplied complete and pre-cabled. Supply voltage is 230V AC and degree of protection is IP 53. It features a sound with continuous or intermittent tone of 106dB at 1 m and 2 tones. It is designed for long distance indication of the operating status of a machine. It is used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels. It has power consumption 9.2W with 1% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional Unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	0.17

Environment Attributes Main

Ambient Air Temperature For Operation	-10-50 °C, -10-50 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	12.3598783677
Environmental Disclosure	ENVPEP2312027EN
Ip Degree Of Protection	IP53 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2312027EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-35-70 °C, -35-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2312027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
