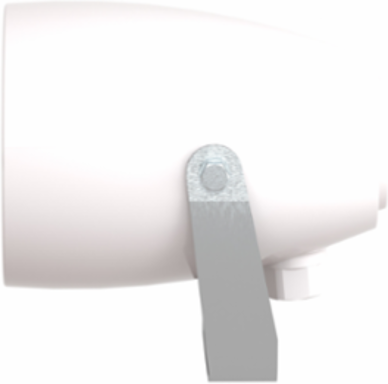

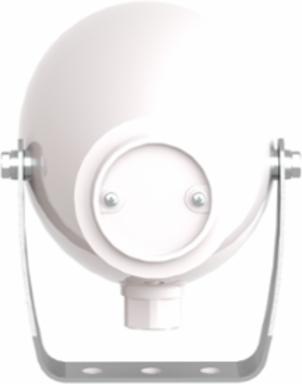

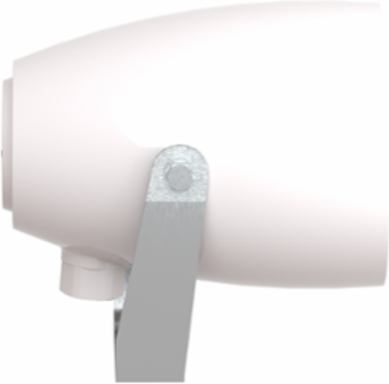

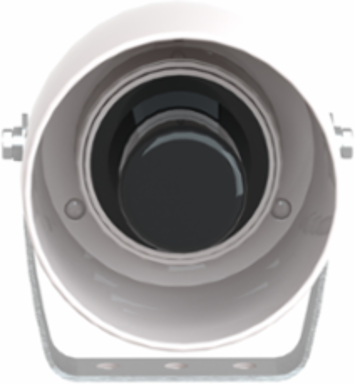

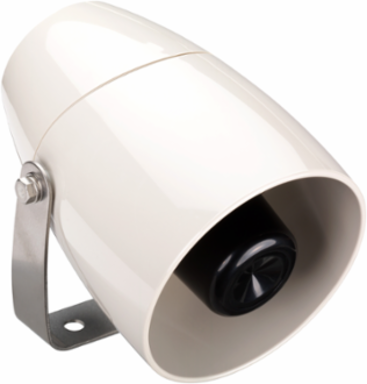

Schneider Electric XVS10GMW Harmony XVS Multi-Sound Siren, 106dB, 2 Tones, IP53, 120V AC
- MPN: XVS10GMW
- PPN: SCH-XVS10GMW
CAD
$252.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Schneider Electric Harmony XVS Multi-sound Siren is white and has PC body material It is dust resistant and water resistant thanks to its IP53 protection, making it ideal for operation in harsh environments High performance International standards & certifications (IP53)
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Japan
Depth153.2 mm
Physical Attributes
- Color
- White
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- IEC 60947-1, IEC 60947-5-1
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVPEP1411024EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- XVS
- Device Short Name
- XVS
- Electrical Shock Protection Class
- class II conforming to IEC 61140
- Material
- PC: body
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Height Nominal
- 114 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Current Consumption80 mA 120 V
Electrical Connectioncable 6.5-8.5 mm
MarkingCE
Noise Level106-106 dB continuous or intermittent tone)1 m
Product Or Component Typesiren
Range Of ProductHarmony XVS
Signalling Type2 tones siren
Pep CodeENVPEP1411024EN
Width Nominal114 mm
[Us] Rated Supply Voltage120 V AC
Package Weight(Lbs)1.239 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -30-50 °C, -30-50 °C
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVPEP1411024EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-35-70 °C, -35-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1411024EN
Ip Degree Of ProtectionIP53
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1411024EN
General Attributes
- Product Or Component Type
- siren
Range Of ProductHarmony XVS
ETIM
- ETIM 8
- EC000195
ETIM 9EC000195
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
