Schmersal 131168053 MV4H Position Switch with Spring Rod Lever, 40 mm x 40 mm, IP65, 350 g
- MPN: 131168053
- PPN: SCM-131168053
CAD
$409.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
MV4H Position Switch with Spring Rod Lever, 40 mm x 40 mm, IP65, 350 g
Features
- Metal enclosure
- Long life

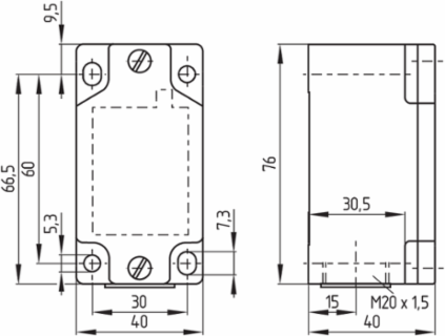

- 40 mm x 76 mm x 40 mm ( basic component)
- Suitable for low actuating speeds
- 1 Cable entry M 20 x 1.5
- free of silicon
- proved in power station applications
- Actuator head can be repositioned in steps 4 x 90°
- Continuous adjustment of lever position 360°
- Lever can be transposed by 180°
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 6 A
- Utilisation category AC-15
- 2.5 A
- Note (Switching element)
- galvanically separated contact bridges
- Switchover time, maximum
- 10 ms
Utilisation category AC-15230 VAC
Switching elementNO contact, NC contact
Bounce duration, maximum1.5 ms
Material of the contacts, electricalSilver
Mechanical data - Dimensions
- Length of sensor
- 40 mm
- Height of sensor
- 304.5 mm
Width of sensor40 mm
Diameter of the Rod4 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
Rated impulse withstand voltage U4 kV
Safety classification - Safety outputs
- B
- 20,000,000 Operations
General data - Features
- Number of normally closed (NC)
- 1
Number of normally open (NO)1
General data
- Standards
- EN IEC 60947-5-1
- Enclosure material
- Light-alloy diecast, paint finish
- Material of the rod
- Metal film
Working principlemechanical
Enclosure coating materialpainted
Gross weight350 g
Ambient conditions
- Degree of protection
- IP65
Restistance to shock50 g / 6 ms
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
- Wire cross-section
- 13 AWG
Cable section, minimum1.5 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data

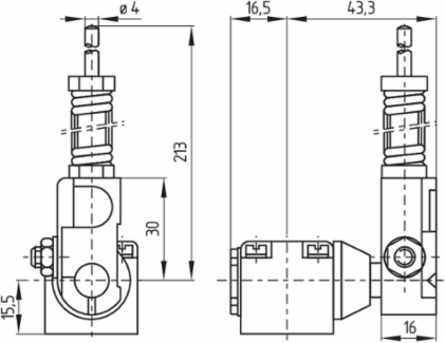

- Actuating element
- Spring rod lever on shaft
- Actuating speed, minimum
- 1 mm/min
- Repeat accuracy of switching points
- 0.02 mm
Contact opening2 x 0.5 mm
Actuating torque0.5 Nm
