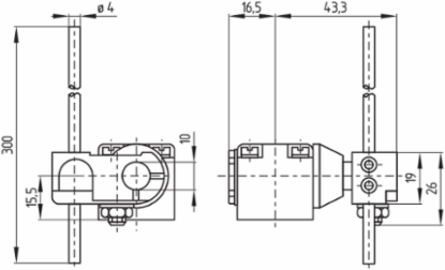

Schmersal 131168903 MV9H Position Switch, 376 mm Height, Steel Rod, IP65, 6 A Thermal Test Current
- MPN: 131168903
- PPN: SCM-131168903
CAD
$416.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
MV9H Position Switch, 376 mm Height, Steel Rod, IP65, 6 A Thermal Test Current
Features
- Metal enclosure
- Long life

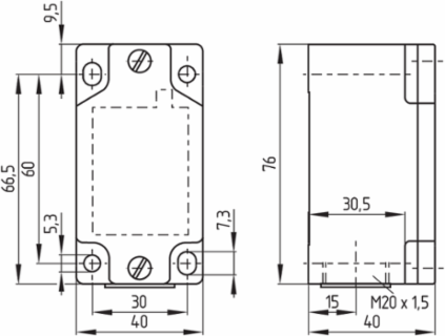

- 40 mm x 76 mm x 40 mm ( basic component)
- Suitable for low actuating speeds
- 1 Cable entry M 20 x 1.5
- free of silicon
- proved in power station applications
- Actuator head can be repositioned in steps 4 x 90°
- Continuous adjustment of lever position 360°
- Lever can be transposed by 180°
- Steel rod
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 6 A
- Material of the contacts, electrical
- Silver
Bounce duration, maximum1.5 ms
Mechanical data - Dimensions
- Length of sensor
- 40 mm
- Height of sensor
- 376 mm
Width of sensor40 mm
Diameter of the Rod4 mm
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 4 kV
Safety classification - Safety outputs
- B
- 20,000,000 Operations
General data
- Standards
- EN IEC 60947-5-1
- Enclosure material
- Light-alloy diecast, paint finish
- Material of the rod
- Steel
Working principlemechanical
Enclosure coating materialpainted
Gross weight345 g
Ambient conditions
- Degree of protection
- IP65
- Restistance to shock
- 50 g / 6 ms
Ambient temperature-30 ... +160 °C
Mechanical data
- Actuating element
- Rod lever
- Actuating torque
- 0.5 Nm
Actuating speed, minimum1 mm/min
