Schmersal 101187450 MZM 100 ST-1P2PR-A Solenoid Interlock, 40 mm Width, Plastic Enclosure, IP65 Retrofit

  • MPN: 101187450
  • PPN: SCM-101187450

CAD

$1045.80

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

MZM 100 ST-1P2PR-A Solenoid Interlock, 40 mm Width, Plastic Enclosure, IP65 Retrofit

Features

  • Guard locking monitored
  • Connector M23, 8+1-pole
  • Power to lock
  • Automatic latching
  • Solenoid interlocks with innovating and unique operating principle
  • 40 mm x 179 mm x 40 mm
  • Electronic contact-free, coded system
  • Thermoplastic enclosure
  • Max. length of the sensor chain 200 m
  • 3 LEDs to show operating conditions

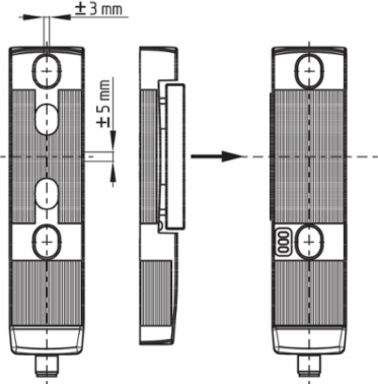

  • Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
  • Intelligent diagnosis
  • Self-monitoring series-wiring
  • Patented

Documentation & Downloads

Specifications

Electrical data - Safety digital inputs

Designation, Safety inputsX1 and X2
Current consumption at 24 V5 mA
Test pulse interval, minimum100 ms
Classification ZVEI CB24I, SourceC1 | C2 | C3
Switching thresholds−3 V … 5 V (Low) | 15 V … 30 V (High)
Test pulse duration, maximum1 ms
Classification ZVEI CB24I, SinkC1

Electrical data

Operating voltage24 VDC -15 % / +10 % (stabilised PELV power supply)
Current consumption with magnet ON, average350 mA
Rated operating voltage24 VDC
Required rated short-circuit current100 A
Time to readiness, maximum4,000 ms
No-load supply current I100 mA
Current consumption with magnet ON, peak550 mA / 10 ms
Operating current1,100 mA
External wire and device fuse rating2 A gG
Switching frequency, maximum1 Hz

Note

Note (General)As long as the actuating unit is applied to the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.

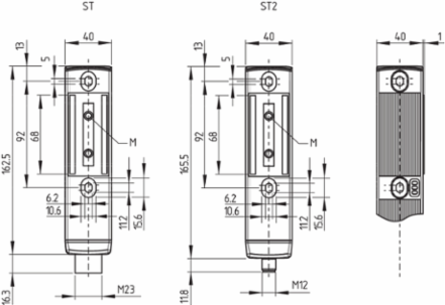

Mechanical data - Dimensions

Length of sensor40 mm
Height of sensor179 mm
Width of sensor40 mm

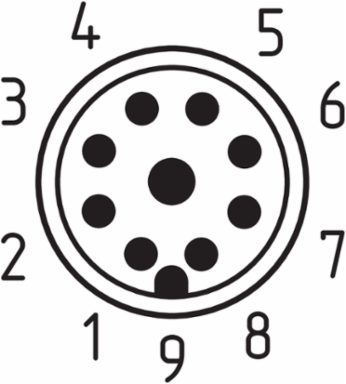

Pin assignment

PIN 1A1 Supply voltage UB
PIN 3A2 GND
PIN 5OUT Diagnostic output
PIN 7Y2 Safety output 2
PIN 9without function
PIN 2X1 Safety input 1
PIN 4Y1 Safety output 1
PIN 6X2 Safety input 2
PIN 8IN Solenoid control

Ambient conditions - Insulation values

Rated insulation voltage U32 VDC
Overvoltage categoryIII
Rated impulse withstand voltage U0.8 kV
Degree of pollution3

Scope of delivery

Scope of deliveryActuator must be ordered separately.

Electrical data - Magnet control

Designation, Magnet controlIN
Current consumption at 24 V10 mA
Test pulse duration, maximum5 ms
Classification ZVEI CB24I, SinkC0
Switching thresholds-3 V … 5 V (Low) | 15 V … 30 V (High)
Magnet switch-on time100 %
Test pulse interval, minimum40 ms
Classification ZVEI CB24I, SourceC1 | C2 | C3

General data - Features

Power to lockYes
LatchingYes
Cross-circuit detectionYes
Safety functionsYes
Number of safety contacts2
Solenoid interlock monitoredYes
Short circuit detectionYes
Series-wiringYes
Integral system diagnostics, statusYes

General data

StandardsEN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
Coding level according to EN ISO 14119Low
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Reaction time, maximum150 ms
CodingUniversal coding
Working principleinductive
Gross weight635 g
Duration of risk, maximum150 ms

Safety classification

StandardsEN ISO 13849-1 | EN IEC 61508

Electrical data - Safety digital outputs

Designation, Safety outputsY1 and Y2
Design of control elementsshort-circuit proof, p-type
Leakage current I0.5 mA
Current, Utilisation category DC-130.25 A
Test pulse duration, maximum1 ms
Classification ZVEI CB24I, SinkC1
Rated operating current (safety outputs)250 mA
Voltage drop U1 V
Voltage, Utilisation category DC-1324 VDC
Test pulse interval, typical1000 ms
Classification ZVEI CB24I, SourceC1

Safety classification - Interlocking function

Performance Level, up toe
PFH value3.54 x 10⁻⁹ /h
Mission time20 Year(s)
Category4
Safety Integrity Level (SIL), suitable for applications in3

Ambient conditions

Degree of protectionIP65 | IP67
Storage and transport temperature, minimum-25 °C
Relative humidity, minimum30 %
Note (Relative humidity)non-condensing | non-icing
Restistance to shock30 g / 11 ms
Permissible installation altitude above sea level, maximum2,000 m
Ambient temperature-25 ... +55 °C
Storage and transport temperature, maximum+70 °C
Relative humidity, maximum95 %
Resistance to vibrations10 … 150 Hz, amplitude 0.35 mm / 5 g
Protection classIII

Mechanical data - Connection technique

TerminationConnector M23, 8+1-pole
Note (length of the sensor chain)Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum200 m

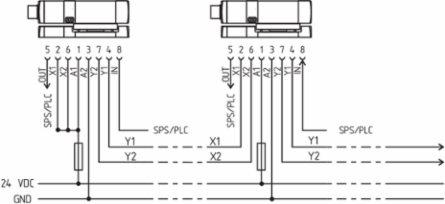

Note (series-wiring)Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD

Electrical data - Diagnostic outputs

Designation, Diagnostic outputsOUT
Voltage drop U2 V
Current, Utilisation category DC-130.05 A
Design of control elementsshort-circuit proof, p-type
Voltage, Utilisation category DC-1324 VDC

Mechanical data - Switching distances according EN IEC 60947-5-3

Assured switching distance "ON" S0 mm
Assured switching distance "OFF" S1 mm

Mechanical data

Mechanical life, minimum1,000,000 Operations
Holding force, typically750 N
Latching force30 N
Tightening torque of the fixing screws8 Nm
Note (Mechanical life)Actuating speed ≤ 0.5 m/s | Operations for door weights ≤ 5 kg
Holding force, guaranteed500 N
Type of the fixing screws2x M6

Accessory

Recommendation (actuator)MZM 100-B1.1

Approvals - Standards

CertificatesTÜV | cULus | UKCA

Status indication

Note (LED switching conditions display)Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
