Schmersal 101199544 MZM 100 Solenoid Interlock, 24 VDC, 200 m Sensor Chain Length, IP65/IP67

MPN: 101199544
PPN: SCM-101199544

$1045.80

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

MZM 100 Solenoid Interlock, 24 VDC, 200 m Sensor Chain Length, IP65/IP67

Features

Guard locking monitored
Connector M23, 8+1-pole
Power to lock
Automatic latching
Solenoid interlocks with innovating and unique operating principle
40 mm x 179 mm x 40 mm
Electronic contact-free, coded system
Thermoplastic enclosure
Max. length of the sensor chain 200 m
3 LEDs to show operating conditions

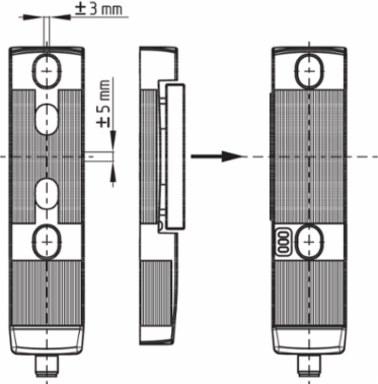

Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
Intelligent diagnosis

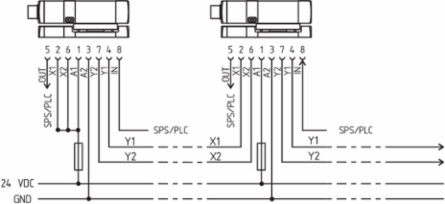

Self-monitoring series-wiring
Patented

Documentation & Downloads

Specifications

Electrical data - Safety digital inputs

Designation, Safety inputs	X1 and X2
Current consumption at 24 V	5 mA
Test pulse interval, minimum	100 ms
Classification ZVEI CB24I, Source	C1 \| C2 \| C3

Switching thresholds	−3 V … 5 V (Low) \| 15 V … 30 V (High)
Test pulse duration, maximum	1 ms
Classification ZVEI CB24I, Sink	C1

Electrical data

Operating voltage	24 VDC -15 % / +10 % (stabilised PELV power supply)
Current consumption with magnet ON, average	350 mA
Rated operating voltage	24 VDC
Required rated short-circuit current	100 A
Time to readiness, maximum	4,000 ms

No-load supply current I	100 mA
Current consumption with magnet ON, peak	550 mA / 10 ms
Operating current	1,100 mA
External wire and device fuse rating	2 A gG
Switching frequency, maximum	1 Hz

Note

Note (General)	As long as the actuating unit is applied to the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.

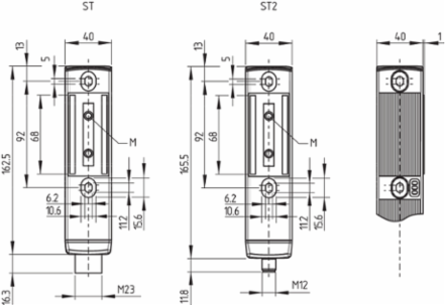

Mechanical data - Dimensions

Length of sensor	40 mm
Height of sensor	179 mm

Width of sensor	40 mm

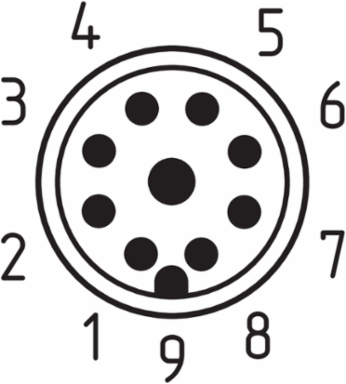

Pin assignment

PIN 1	A1 Supply voltage UB
PIN 3	A2 GND
PIN 5	OUT Diagnostic output
PIN 7	Y2 Safety output 2
PIN 9	without function

PIN 2	X1 Safety input 1
PIN 4	Y1 Safety output 1
PIN 6	X2 Safety input 2
PIN 8	IN Solenoid control

Ambient conditions - Insulation values

Rated insulation voltage U	32 VDC
Overvoltage category	III

Rated impulse withstand voltage U	0.8 kV
Degree of pollution	3

Scope of delivery

Scope of delivery	Actuator must be ordered separately.

Electrical data - Magnet control

Designation, Magnet control	IN
Current consumption at 24 V	10 mA
Test pulse duration, maximum	5 ms
Classification ZVEI CB24I, Sink	C0

Switching thresholds	-3 V … 5 V (Low) \| 15 V … 30 V (High)
Magnet switch-on time	100 %
Test pulse interval, minimum	40 ms
Classification ZVEI CB24I, Source	C1 \| C2 \| C3

General data - Features

Power to lock	Yes
Short circuit detection	Yes
Series-wiring	Yes
Integral system diagnostics, status	Yes

Solenoid interlock monitored	Yes
Cross-circuit detection	Yes
Safety functions	Yes
Number of safety contacts	2

General data

Standards	EN ISO 13849-1 \| EN ISO 14119 \| EN IEC 60947-5-3 \| EN IEC 61508
Coding level according to EN ISO 14119	Low
Enclosure material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Reaction time, maximum	150 ms

Coding	Universal coding
Working principle	inductive
Gross weight	660 g
Duration of risk, maximum	150 ms

Safety classification

Standards	EN ISO 13849-1 \| EN IEC 61508

Electrical data - Safety digital outputs

Designation, Safety outputs	Y1 and Y2
Design of control elements	short-circuit proof, p-type
Leakage current I	0.5 mA
Current, Utilisation category DC-13	0.25 A
Test pulse duration, maximum	1 ms
Classification ZVEI CB24I, Sink	C1

Rated operating current (safety outputs)	250 mA
Voltage drop U	1 V
Voltage, Utilisation category DC-13	24 VDC
Test pulse interval, typical	1000 ms
Classification ZVEI CB24I, Source	C1

Safety classification - Interlocking function

Performance Level, up to	e
PFH value	3.54 x 10⁻⁹ /h
Mission time	20 Year(s)

Category	4
Safety Integrity Level (SIL), suitable for applications in	3

Ambient conditions

Degree of protection	IP65 \| IP67
Storage and transport temperature, minimum	-25 °C
Relative humidity, minimum	30 %
Note (Relative humidity)	non-condensing \| non-icing
Restistance to shock	30 g / 11 ms
Permissible installation altitude above sea level, maximum	2,000 m

Ambient temperature	-25 ... +55 °C
Storage and transport temperature, maximum	+70 °C
Relative humidity, maximum	95 %
Resistance to vibrations	10 … 150 Hz, amplitude 0.35 mm / 5 g
Protection class	III

Mechanical data - Connection technique

Termination	Connector M23, 8+1-pole
Note (length of the sensor chain)	Cable length and cross-section change the voltage drop dependiing on the output current

Length of sensor chain, maximum	200 m
Note (series-wiring)	Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD

Electrical data - Diagnostic outputs

Designation, Diagnostic outputs	OUT
Voltage drop U	2 V
Current, Utilisation category DC-13	0.05 A

Design of control elements	short-circuit proof, p-type
Voltage, Utilisation category DC-13	24 VDC

Mechanical data - Switching distances according EN IEC 60947-5-3

Assured switching distance "ON" S	0 mm

Assured switching distance "OFF" S	1 mm

Mechanical data

Mechanical life, minimum	1,000,000 Operations
Holding force, typically	750 N
Type of the fixing screws	2x M6

Note (Mechanical life)	Actuating speed ≤ 0.5 m/s \| Operations for door weights ≤ 5 kg
Holding force, guaranteed	500 N
Tightening torque of the fixing screws	8 Nm
